Produkte > SUNON > MF40100V2-1000U-A99
MF40100V2-1000U-A99

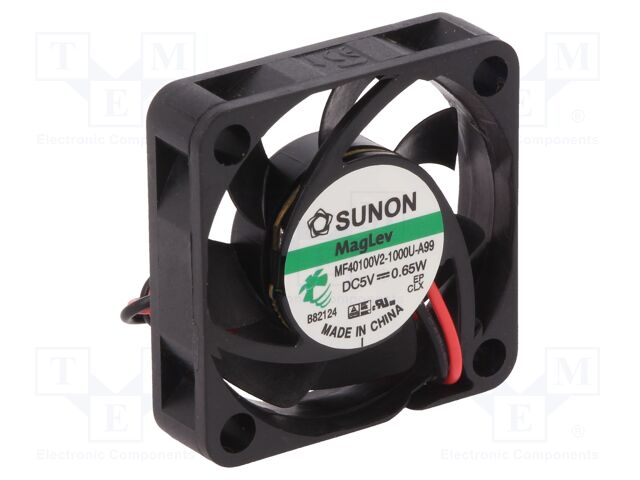

MF40100V2-1000U-A99 Sunon


(D04114210G-02)-1.pdf Hersteller: Sunon
DC Fans Axial Fan, 40x40x10mm, 5VDC, 7CFM, 0.12"H2O, Vapo, Wire, Auto Restart
auf Bestellung 241 Stücke:

Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+8.41 EUR
10+7.18 EUR
25+5.76 EUR
400+5.74 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details MF40100V2-1000U-A99 Sunon

Category: DC5V Fans, Description: Fan: DC; axial; 5VDC; 40x40x10mm; 11.89m3/h; 20.6dBA; Vapo; 5800rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 5V DC, Operating voltage: 3.5...6V DC, Fan dimensions: 40x40x10mm, Power consumption: 0.47W, Current rating: 94mA, Fan efficiency: 11.89m3/h, Noise level: 20.6dBA, Kind of Bearing: Vapo, Rotational rate/speed: 5800rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.3m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 3.05mm H2O, Wire size: 26AWG, Related items: SR4-15.5, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote MF40100V2-1000U-A99 nach Preis ab 4.08 EUR bis 9.7 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
MF40100V2-1000U-A99 MF40100V2-1000U-A99 Hersteller : Sunon Fans (D04114210G-02)-1.pdf Description: FAN AXIAL 40X10MM VAPO 5VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 5VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Vapo-Bearing™
RPM: 5800 RPM
Air Flow: 7.0 CFM (0.196m³/min)
Width: 10.00mm
Weight: 0.035 lb (15.88 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 20.6dB(A)
Static Pressure: 0.120 in H2O (29.9 Pa)
Part Status: Active
Power (Watts): 470 mW
auf Bestellung 18607 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+9.7 EUR
10+8.03 EUR
25+7.39 EUR
50+6.92 EUR
100+6.47 EUR
400+6.3 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
MF40100V2-1000U-A99 Hersteller : Sunon (D04114210G-02)-1.pdf DC Fan Axial Vapo Bearing 5V 7CFM 20.6dB 40 X 40 X 10mm Middle Speed
auf Bestellung 3480 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
30+5.23 EUR
60+4.92 EUR
120+4.61 EUR
270+4.34 EUR
510+4.08 EUR
Mindestbestellmenge: 30
Im Einkaufswagen  Stück im Wert von  UAH
MF40100V2-1000U-A99 (MF40100V2-A99-A) MF40100V2-1000U-A99 (MF40100V2-A99-A)
Produktcode: 151986
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : Sunon mf40100v2-1000u-a99-datasheet.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 40x40x10 mm
Spannung, V: 5 DC
Luftvolumen, m3/Stunde: 11,89 м³/год.
Leistung, Watt: 0,47 Вт
Lärm, dB: 20,6 дБ
Rotationsgeschwindigkeit, r/min: 5800 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MF40100V2-1000U-A99 MF40100V2-1000U-A99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1ED7ACFF3306D0EC4A13&compId=MF40100V2-1000U-A99%20%20D04114210G-00.pdf?ci_sign=916fd784a0ee437d6262c291739cfe91e0734714 Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 40x40x10mm; 11.89m3/h; 20.6dBA; Vapo; 5800rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 3.5...6V DC
Fan dimensions: 40x40x10mm
Power consumption: 0.47W
Current rating: 94mA
Fan efficiency: 11.89m3/h
Noise level: 20.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5800rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Related items: SR4-15.5
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MF40100V2-1000U-A99 MF40100V2-1000U-A99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1ED7ACFF3306D0EC4A13&compId=MF40100V2-1000U-A99%20%20D04114210G-00.pdf?ci_sign=916fd784a0ee437d6262c291739cfe91e0734714 Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 40x40x10mm; 11.89m3/h; 20.6dBA; Vapo; 5800rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 3.5...6V DC
Fan dimensions: 40x40x10mm
Power consumption: 0.47W
Current rating: 94mA
Fan efficiency: 11.89m3/h
Noise level: 20.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 5800rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.05mm H2O
Wire size: 26AWG
Related items: SR4-15.5
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
