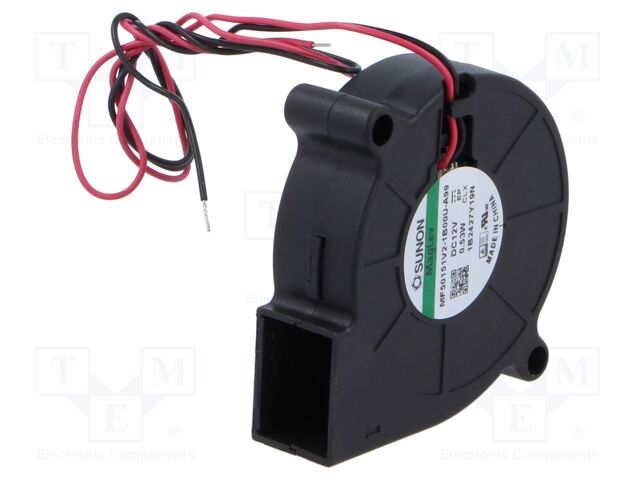

MF50151V2-1B00U-A99 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; blower; 12VDC; 50x50x15mm; 5.94m3/h; 32.6dBA; Vapo; 4200rpm
Type of fan: DC
Kind of fan: blower
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 50x50x15mm
Power consumption: 0.53W
Current rating: 45mA
Fan efficiency: 5.94m3/h
Noise level: 32.6dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4200rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.305m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Current and power consumption tolerance: ±15%
| Anzahl | Privatkunde |
|---|---|
| 11+ | 8.43 EUR |
| 12+ | 7.51 EUR |
| 50+ | 7.04 EUR |
| 200+ | 6.74 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF50151V2-1B00U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 50x50x15mm; 5.94m3/h; 32.6dBA; Vapo; 4200rpm, Type of fan: DC, Kind of fan: blower, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 50x50x15mm, Power consumption: 0.53W, Current rating: 45mA, Fan efficiency: 5.94m3/h, Noise level: 32.6dBA, Kind of Bearing: Vapo, Rotational rate/speed: 4200rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.305m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Current and power consumption tolerance: ±15%.
Weitere Produktangebote MF50151V2-1B00U-A99 nach Preis ab 11.7 EUR bis 17.72 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF50151V2-1B00U-A99 | Sunon Fans |
Description: FAN BLOWER 51.7X15MM 12VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square/Rounded - 51.7mm L x 51.6mm H Bearing Type: Vapo-Bearing™ RPM: 4200 RPM Air Flow: 3.5 CFM (0.098m³/min) Width: 15.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Blower Noise: 32.6dB(A) Static Pressure: 0.400 in H2O (99.6 Pa) Part Status: Active Power (Watts): 540 mW |
auf Bestellung 568 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
MF50151V2-1B00U-A99 | Sunon |
DC Fans Blower, 50x50x15mm, 12VDC, 540mW, 4200RPM, Vapo, Wire, Auto Restart, MagLev |
auf Bestellung 369 Stücke: Lieferzeit 10-14 Tag (e) |
|
| MF50151V2-1B00U-A99 |
|
Hersteller: Sunon Fans
Description: FAN BLOWER 51.7X15MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square/Rounded - 51.7mm L x 51.6mm H
Bearing Type: Vapo-Bearing™
RPM: 4200 RPM
Air Flow: 3.5 CFM (0.098m³/min)
Width: 15.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Blower
Noise: 32.6dB(A)
Static Pressure: 0.400 in H2O (99.6 Pa)
Part Status: Active
Power (Watts): 540 mW
Description: FAN BLOWER 51.7X15MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square/Rounded - 51.7mm L x 51.6mm H
Bearing Type: Vapo-Bearing™
RPM: 4200 RPM
Air Flow: 3.5 CFM (0.098m³/min)
Width: 15.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Blower
Noise: 32.6dB(A)
Static Pressure: 0.400 in H2O (99.6 Pa)
Part Status: Active
Power (Watts): 540 mW
auf Bestellung 568 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 17.64 EUR |
| 10+ | 14.55 EUR |
| 25+ | 13.38 EUR |
| 50+ | 12.51 EUR |
| 200+ | 11.7 EUR |
| MF50151V2-1B00U-A99 |
|
Hersteller: Sunon
DC Fans Blower, 50x50x15mm, 12VDC, 540mW, 4200RPM, Vapo, Wire, Auto Restart, MagLev
DC Fans Blower, 50x50x15mm, 12VDC, 540mW, 4200RPM, Vapo, Wire, Auto Restart, MagLev
auf Bestellung 369 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 17.72 EUR |
| 10+ | 14.39 EUR |
| 25+ | 13.14 EUR |
| 50+ | 12.34 EUR |
