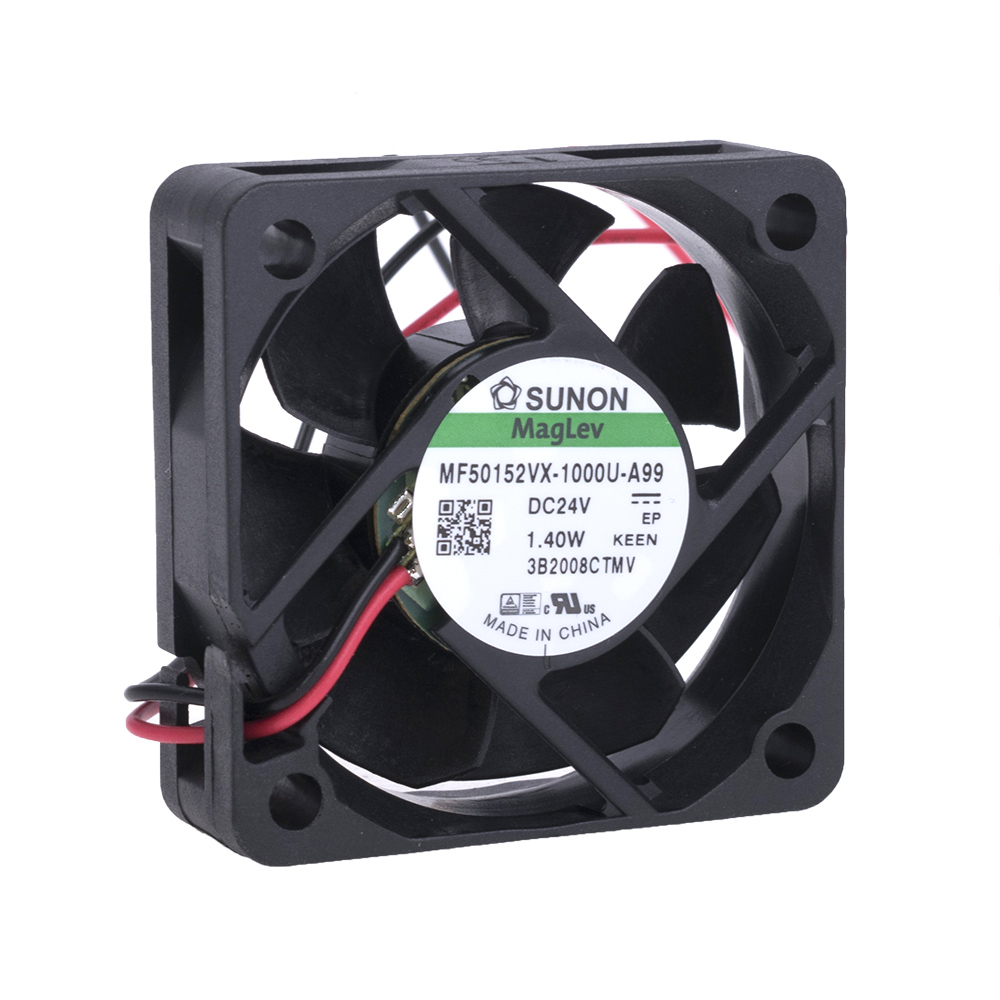

MF50152VX-1000U-A99 SUNON
Hersteller: SUNONCategory: DC24V Fans
Description: Fan: DC; axial; 24VDC; 50x50x15mm; 31.43m3/h; 38.1dBA; Vapo; 7200rpm
Operating temperature: -10...70°C
Impeller material: thermoplastic
Flammability rating: UL94V-0
Current rating: 55mA
Fan dimensions: 50x50x15mm
Lead length: 0.3m
Power consumption: 1.4W
Supply voltage: 24V DC
Static pressure: 7.87mm H2O
Operating voltage: 8...27.6V DC
Fan efficiency: 31.43m3/h
Noise level: 38.1dBA
Wire size: 26AWG
Rotational rate/speed: 7200rpm
Min. insulation resistance: 10MΩ
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: Vapo
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
Enclosure material: thermoplastic
auf Bestellung 5016 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 14+ | 5.15 EUR |
| 50+ | 3.96 EUR |
| 100+ | 3.46 EUR |
| 200+ | 3.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF50152VX-1000U-A99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 50x50x15mm; 31.43m3/h; 38.1dBA; Vapo; 7200rpm, Operating temperature: -10...70°C, Impeller material: thermoplastic, Flammability rating: UL94V-0, Current rating: 55mA, Fan dimensions: 50x50x15mm, Lead length: 0.3m, Power consumption: 1.4W, Supply voltage: 24V DC, Static pressure: 7.87mm H2O, Operating voltage: 8...27.6V DC, Fan efficiency: 31.43m3/h, Noise level: 38.1dBA, Wire size: 26AWG, Rotational rate/speed: 7200rpm, Min. insulation resistance: 10MΩ, Additional functions: autorestart, Kind of fan: axial, Kind of Bearing: Vapo, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, Enclosure material: thermoplastic, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF50152VX-1000U-A99 nach Preis ab 3.35 EUR bis 14.01 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF50152VX-1000U-A99 | Hersteller : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 50x50x15mm; 31.43m3/h; 38.1dBA; Vapo; 7200rpm Operating temperature: -10...70°C Impeller material: thermoplastic Flammability rating: UL94V-0 Current rating: 55mA Fan dimensions: 50x50x15mm Lead length: 0.3m Power consumption: 1.4W Supply voltage: 24V DC Static pressure: 7.87mm H2O Operating voltage: 8...27.6V DC Fan efficiency: 31.43m3/h Noise level: 38.1dBA Wire size: 26AWG Rotational rate/speed: 7200rpm Min. insulation resistance: 10MΩ Additional functions: autorestart Kind of fan: axial Kind of Bearing: Vapo Fan motor: brushless DC Type of fan: DC Leads: leads x2 Enclosure material: thermoplastic Anzahl je Verpackung: 1 Stücke |
auf Bestellung 5016 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
 |
MF50152VX-1000U-A99 | Hersteller : Sunon |
DC Fans Axial Fan, 50x50x15mm, 24VDC, 18.6CFM, 0.31"H2O, Vapo, Wire, Auto Restart |
auf Bestellung 84 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
MF50152VX-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 50X15MM 24VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 24VDC Size / Dimension: Square - 50mm L x 50mm H Bearing Type: Vapo-Bearing™ RPM: 7200 RPM Air Flow: 18.6 CFM (0.521m³/min) Width: 15.00mm Weight: 0.073 lb (33.11 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 38.1dB(A) Static Pressure: 0.310 in H2O (77.2 Pa) Part Status: Active Power (Watts): 1.32 W |
auf Bestellung 1222 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| MF50152VX-1000U-A99 | Hersteller : Sunon |
MF50152VX-1000U-A99 |
auf Bestellung 2901 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
| MF50152VX-1000U-A99 | Hersteller : Sunon |
MF50152VX-1000U-A99 |
auf Bestellung 1000 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
 |
MF50152VX-1000U-A99 (MF50152VX-A99-A) Produktcode: 164029
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 50x50x15 mm Spannung, V: 24 DC Luftvolumen, m3/Stunde: 31,43 м³/год. Leistung, Watt: 1,4 Вт Lärm, dB: 38,1 дБ Rotationsgeschwindigkeit, r/min: 7200 об/хв Beschreibung: Підшипник Vapo (магнітна підвіска) |
