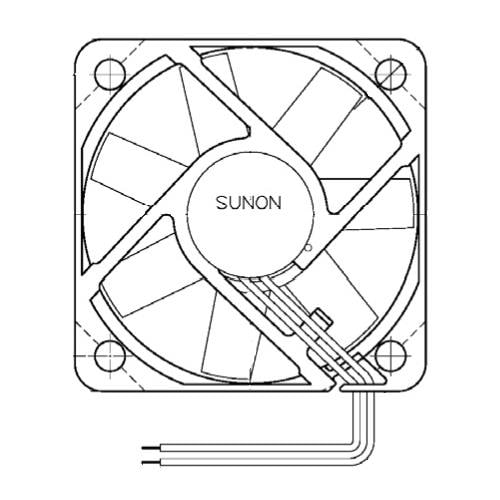

MF50201V2-1B00U-A99 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; blower; 12VDC; 50x50x20mm; 8.68m3/h; 30dBA; Vapo; 4650rpm
Type of fan: DC
Kind of fan: blower
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 50x50x20mm
Power consumption: 1.2W
Current rating: 0.1A
Fan efficiency: 8.68m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4650rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.305m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Current and power consumption tolerance: ±15%
| Anzahl | Preis |
|---|---|
| 8+ | 9.78 EUR |
| 10+ | 8.88 EUR |
| 50+ | 8.05 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF50201V2-1B00U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 50x50x20mm; 8.68m3/h; 30dBA; Vapo; 4650rpm, Type of fan: DC, Kind of fan: blower, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 50x50x20mm, Power consumption: 1.2W, Current rating: 0.1A, Fan efficiency: 8.68m3/h, Noise level: 30dBA, Kind of Bearing: Vapo, Rotational rate/speed: 4650rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.305m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Current and power consumption tolerance: ±15%.
Weitere Produktangebote MF50201V2-1B00U-A99
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| MF50201V2-1B00U-A99 | Hersteller : Sunon Fans |
Description: Thermal Products Power (Watts): 1.2 W Static Pressure: 0.460 in H2O (114.6 Pa) Noise: 30.0dB(A) Fan Type: Blower Approval Agency: CE, CUR, TUV, UL Termination: 2 Wire Leads Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Width: 20.00mm Air Flow: 5.1 CFM (0.143m³/min) RPM: 4650 RPM Bearing Type: Vapo-Bearing™ Size / Dimension: Square/Rounded - 50mm L x 50mm H Voltage - Rated: 12VDC Features: Auto Restart Packaging: Bulk |
Produkt ist nicht verfügbar |
||
 |
MF50201V2-1B00U-A99 | Hersteller : Sunon |
Blowers & Centrifugal Fans DC Blower, 50x50x20mm, 12VDC, Vapo, Lead Wires, Auto Restart, MagLev Motor |
Produkt ist nicht verfügbar |
