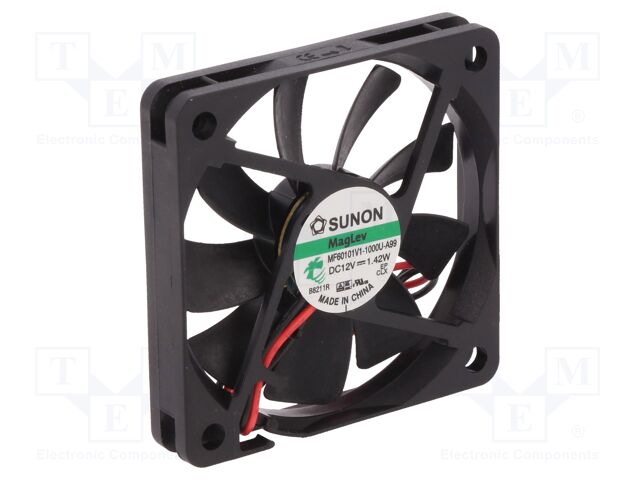

MF60101V1-1000U-A99 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x10mm; 27.55m3/h; 28.5dBA; Vapo; 4000rpm
Enclosure material: thermoplastic
Fan motor: brushless DC
Leads: leads x2
Kind of Bearing: Vapo
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Current rating: 0.108A
Fan dimensions: 60x60x10mm
Lead length: 0.29m
Power consumption: 1.3W
Static pressure: 3.05mm H2O
Operating voltage: 4.5...13.8V DC
Fan efficiency: 27.55m3/h
Supply voltage: 12V DC
Noise level: 28.5dBA
Current and power consumption tolerance: ±15%
Wire size: 26AWG
Rotational rate/speed: 4000rpm
Min. insulation resistance: 10MΩ
Insulation class: A
Type of fan: DC
Additional functions: autorestart
Kind of fan: axial
| Anzahl | Privatkunde |
|---|---|
| 16+ | 5.66 EUR |
| 17+ | 5.06 EUR |
| 50+ | 4.28 EUR |
| 100+ | 3.76 EUR |
| 200+ | 3.61 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF60101V1-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x10mm; 27.55m3/h; 28.5dBA; Vapo; 4000rpm, Enclosure material: thermoplastic, Fan motor: brushless DC, Leads: leads x2, Kind of Bearing: Vapo, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Current rating: 0.108A, Fan dimensions: 60x60x10mm, Lead length: 0.29m, Power consumption: 1.3W, Static pressure: 3.05mm H2O, Operating voltage: 4.5...13.8V DC, Fan efficiency: 27.55m3/h, Supply voltage: 12V DC, Noise level: 28.5dBA, Current and power consumption tolerance: ±15%, Wire size: 26AWG, Rotational rate/speed: 4000rpm, Min. insulation resistance: 10MΩ, Insulation class: A, Type of fan: DC, Additional functions: autorestart, Kind of fan: axial.
Weitere Produktangebote MF60101V1-1000U-A99 nach Preis ab 6.89 EUR bis 14.88 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF60101V1-1000U-A99 | Sunon Fans |
Description: FAN AXIAL 60X10MM 12VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Vapo-Bearing™ RPM: 4000 RPM Air Flow: 16.3 CFM (0.456m³/min) Width: 10.00mm Weight: 0.051 lb (23.13 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 28.5dB(A) Static Pressure: 0.120 in H2O (29.9 Pa) Part Status: Active Power (Watts): 1.3 W |
auf Bestellung 2428 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
MF60101V1-1000U-A99 | Sunon |
DC Fans Axial Fan, 60x60x10mm, 12VDC, 16.3CFM, 0.12"H2O, Vapo, Wire, Auto Restart |
auf Bestellung 572 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
MF60101V1-1000U-A99 | SUNON |
Description: SUNON - MF60101V1-1000U-A99 - DC FAN, VAPO, 60MM, 4000RPM, 12VDC tariffCode: 0 euEccn: NLR Stromanschluss: 2 Lead Wires rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Vapo Bearing Nennleistung: 1.3W isCanonical: Y IP-Schutzart: - Luftstrom - m3/min: - Nennstrom: 108mA Außentiefe: 10mm Geräuschentwicklung: 28.5dBA Luftstrom - CFM: 16.3cu.ft/min SVHC: No SVHC (27-Jun-2024) Lüfterrahmen: Square Produktpalette: DC Brushless M Series productTraceability: No Rahmengröße: 60mm usEccn: EAR99 Versorgungsspannung, V DC: 12V Nenndrehzahl: 4000rpm directShipCharge: 25 |
auf Bestellung 43 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||
| MF60101V1-1000U-A99 | Sunon |
DC Brushless Fan 60x60x10 mm |
auf Bestellung 1020 Stücke: Lieferzeit 14-21 Tag (e) |
|
| MF60101V1-1000U-A99 |
|
Hersteller: Sunon Fans
Description: FAN AXIAL 60X10MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Vapo-Bearing™
RPM: 4000 RPM
Air Flow: 16.3 CFM (0.456m³/min)
Width: 10.00mm
Weight: 0.051 lb (23.13 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 28.5dB(A)
Static Pressure: 0.120 in H2O (29.9 Pa)
Part Status: Active
Power (Watts): 1.3 W
Description: FAN AXIAL 60X10MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Vapo-Bearing™
RPM: 4000 RPM
Air Flow: 16.3 CFM (0.456m³/min)
Width: 10.00mm
Weight: 0.051 lb (23.13 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 28.5dB(A)
Static Pressure: 0.120 in H2O (29.9 Pa)
Part Status: Active
Power (Watts): 1.3 W
auf Bestellung 2428 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 11.75 EUR |
| 10+ | 9.71 EUR |
| 25+ | 9.04 EUR |
| MF60101V1-1000U-A99 |
|
Hersteller: Sunon
DC Fans Axial Fan, 60x60x10mm, 12VDC, 16.3CFM, 0.12"H2O, Vapo, Wire, Auto Restart
DC Fans Axial Fan, 60x60x10mm, 12VDC, 16.3CFM, 0.12"H2O, Vapo, Wire, Auto Restart
auf Bestellung 572 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 14.88 EUR |
| 10+ | 12.35 EUR |
| 25+ | 10.61 EUR |
| 50+ | 9.62 EUR |
| 100+ | 9.37 EUR |
| MF60101V1-1000U-A99 |
|
Hersteller: SUNON
Description: SUNON - MF60101V1-1000U-A99 - DC FAN, VAPO, 60MM, 4000RPM, 12VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 1.3W
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 108mA
Außentiefe: 10mm
Geräuschentwicklung: 28.5dBA
Luftstrom - CFM: 16.3cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 60mm
usEccn: EAR99
Versorgungsspannung, V DC: 12V
Nenndrehzahl: 4000rpm
directShipCharge: 25
Description: SUNON - MF60101V1-1000U-A99 - DC FAN, VAPO, 60MM, 4000RPM, 12VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 1.3W
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 108mA
Außentiefe: 10mm
Geräuschentwicklung: 28.5dBA
Luftstrom - CFM: 16.3cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 60mm
usEccn: EAR99
Versorgungsspannung, V DC: 12V
Nenndrehzahl: 4000rpm
directShipCharge: 25
auf Bestellung 43 Stücke:
Lieferzeit 14-21 Tag (e)
| MF60101V1-1000U-A99 |
|
Hersteller: Sunon
DC Brushless Fan 60x60x10 mm
DC Brushless Fan 60x60x10 mm
auf Bestellung 1020 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 30+ | 8.13 EUR |
| 60+ | 7.85 EUR |
| 120+ | 7.51 EUR |
| 270+ | 7.14 EUR |
| 510+ | 6.89 EUR |
