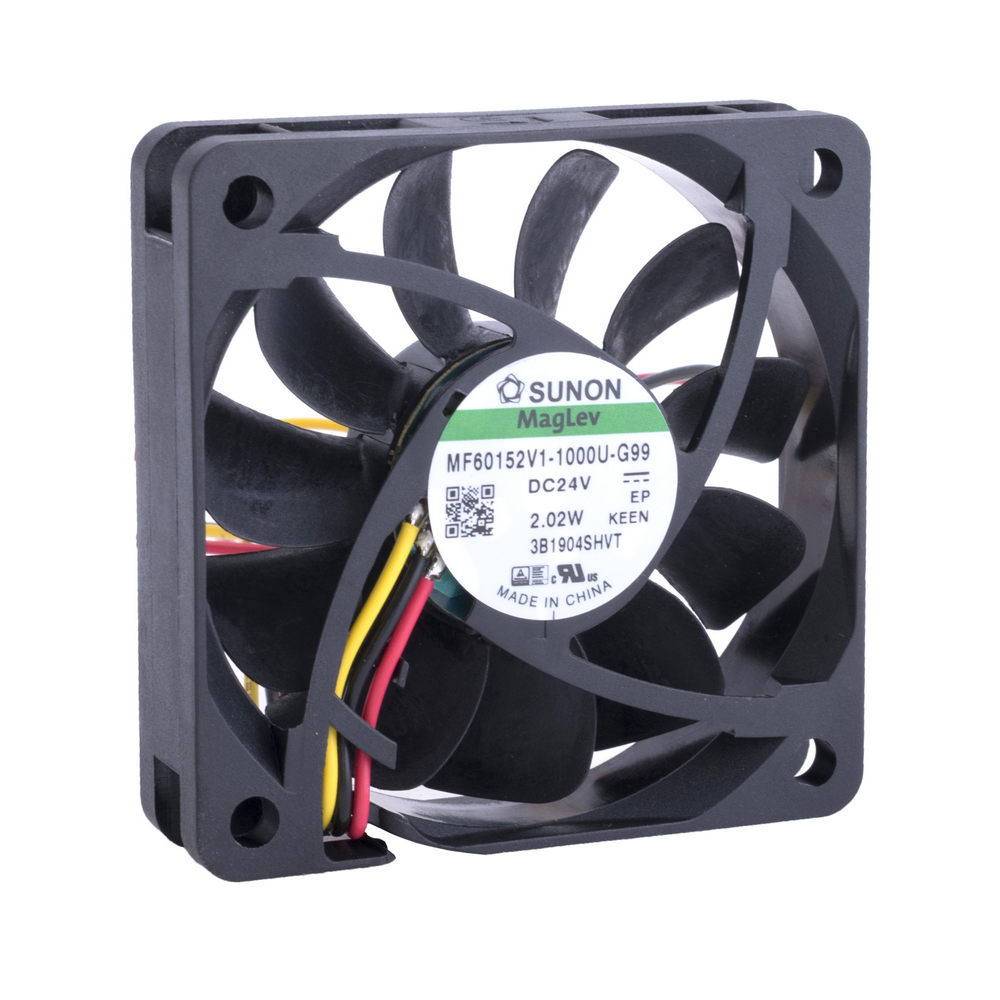

MF60152V1-1000U-G99 SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V
Fan dimensions: 60x60x15mm
Power consumption: 1.8W
Current rating: 75mA
Fan efficiency: 44.85m3/h
Noise level: 34.2dBA
Kind of Bearing: Vapo
Signal output: F type
Rotational rate/speed: 4700rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x3
Operating temperature: -10...70°C
Cable length: 0.29m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 26AWG
Anzahl je Verpackung: 1 Stücke
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V
Fan dimensions: 60x60x15mm
Power consumption: 1.8W
Current rating: 75mA
Fan efficiency: 44.85m3/h
Noise level: 34.2dBA
Kind of Bearing: Vapo
Signal output: F type
Rotational rate/speed: 4700rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x3
Operating temperature: -10...70°C
Cable length: 0.29m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 26AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3046 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
11+ | 6.65 EUR |
13+ | 5.71 EUR |
50+ | 4.89 EUR |
200+ | 4.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF60152V1-1000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 8...27.6V, Fan dimensions: 60x60x15mm, Power consumption: 1.8W, Current rating: 75mA, Fan efficiency: 44.85m3/h, Noise level: 34.2dBA, Kind of Bearing: Vapo, Signal output: F type, Rotational rate/speed: 4700rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x3, Operating temperature: -10...70°C, Cable length: 0.29m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 4.57mm H2O, Wire size: 26AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF60152V1-1000U-G99 nach Preis ab 4.35 EUR bis 8.9 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MF60152V1-1000U-G99 | Hersteller : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 8...27.6V Fan dimensions: 60x60x15mm Power consumption: 1.8W Current rating: 75mA Fan efficiency: 44.85m3/h Noise level: 34.2dBA Kind of Bearing: Vapo Signal output: F type Rotational rate/speed: 4700rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Cable length: 0.29m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 4.57mm H2O Wire size: 26AWG |
auf Bestellung 3046 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
MF60152V1-1000U-G99 | Hersteller : Sunon | MF60152V1-1000U-G99 |
auf Bestellung 3180 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
MF60152V1-1000U-G99 (MF60152V1-G99-A) Produktcode: 147707 |
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 60x60x15 mm Spannung, V: 24 DC Luftvolumen, m3/Stunde: 44,85 м³/год. Leistung, Watt: 1,8 Вт Lärm, dB: 34,2дБ Rotationsgeschwindigkeit, r/min: 4700 об/хв Beschreibung: Підшипник Vapo (магнітна підвіска) |
Produkt ist nicht verfügbar
|
||||||||||||
MF60152V1-1000U-G99 | Hersteller : Sunon | DC Fans Axial Fan, 60x60x15mm, 24VDC, 0.18"H2O, Vapo, 3x Wire, Auto Restart, Tach |
Produkt ist nicht verfügbar |
