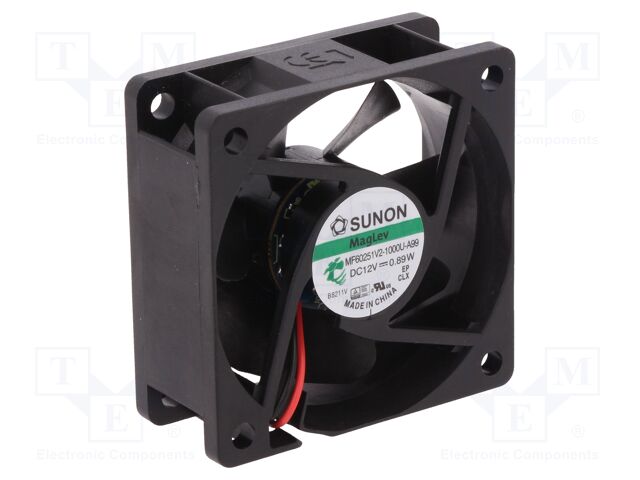

MF60251V2-1000U-A99 SUNON
Hersteller: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x25mm; 32.62m3/h; 22dBA; Vapo; 3800rpm
Related items: SRF4-30
Insulation class: A
Additional functions: autorestart
Kind of fan: axial
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
Enclosure material: thermoplastic
Kind of Bearing: Vapo
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Fan dimensions: 60x60x25mm
Current rating: 72mA
Lead length: 0.29m
Power consumption: 0.87W
Operating voltage: 4.5...13.8V DC
Static pressure: 3.81mm H2O
Supply voltage: 12V DC
Fan efficiency: 32.62m3/h
Wire size: 26AWG
Current and power consumption tolerance: ±15%
Noise level: 22dBA
Rotational rate/speed: 3800rpm
Min. insulation resistance: 10MΩ
auf Bestellung 3170 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 14+ | 5.33 EUR |
| 50+ | 4.09 EUR |
| 100+ | 3.55 EUR |
| 200+ | 3.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF60251V2-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x25mm; 32.62m3/h; 22dBA; Vapo; 3800rpm, Related items: SRF4-30, Insulation class: A, Additional functions: autorestart, Kind of fan: axial, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, Enclosure material: thermoplastic, Kind of Bearing: Vapo, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Fan dimensions: 60x60x25mm, Current rating: 72mA, Lead length: 0.29m, Power consumption: 0.87W, Operating voltage: 4.5...13.8V DC, Static pressure: 3.81mm H2O, Supply voltage: 12V DC, Fan efficiency: 32.62m3/h, Wire size: 26AWG, Current and power consumption tolerance: ±15%, Noise level: 22dBA, Rotational rate/speed: 3800rpm, Min. insulation resistance: 10MΩ, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF60251V2-1000U-A99 nach Preis ab 3.35 EUR bis 14.48 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF60251V2-1000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x25mm; 32.62m3/h; 22dBA; Vapo; 3800rpm Related items: SRF4-30 Insulation class: A Additional functions: autorestart Kind of fan: axial Fan motor: brushless DC Type of fan: DC Leads: leads x2 Enclosure material: thermoplastic Kind of Bearing: Vapo Impeller material: thermoplastic Flammability rating: UL94V-0 Operating temperature: -10...70°C Fan dimensions: 60x60x25mm Current rating: 72mA Lead length: 0.29m Power consumption: 0.87W Operating voltage: 4.5...13.8V DC Static pressure: 3.81mm H2O Supply voltage: 12V DC Fan efficiency: 32.62m3/h Wire size: 26AWG Current and power consumption tolerance: ±15% Noise level: 22dBA Rotational rate/speed: 3800rpm Min. insulation resistance: 10MΩ Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3170 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
 |
MF60251V2-1000U-A99 | Hersteller : Sunon |
DC Fans Axial Fan, 60x60x25mm, 12VDC, 19.3CFM, 0.15"H2O, Vapo, Wire, Auto Restart |
auf Bestellung 275 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
MF60251V2-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 60X25MM 12VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Vapo-Bearing™ RPM: 3800 RPM Air Flow: 19.3 CFM (0.540m³/min) Width: 25.00mm Weight: 0.101 lb (45.81 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 22.0dB(A) Static Pressure: 0.150 in H2O (37.3 Pa) Part Status: Active Power (Watts): 870 mW |
auf Bestellung 842 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
MF60251V2-1000U-A99 | Hersteller : SUNON |
Description: SUNON - MF60251V2-1000U-A99 - DC FAN, VAPO, 60MM, 3800RPM, 12VDC tariffCode: 0 Stromanschluss: 2 Lead Wires rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Vapo Bearing Nennleistung: 870mW IP-Schutzart: - usEccn: EAR99 Luftstrom - m3/min: - Nennstrom: 72mA Außentiefe: 25mm Geräuschentwicklung: 22dBA euEccn: NLR Luftstrom - CFM: 19.3cu.ft/min Lüfterrahmen: Square Produktpalette: DC Brushless M Series productTraceability: No Rahmengröße: 60mm Versorgungsspannung, V DC: 12V Nenndrehzahl: 3800rpm directShipCharge: 25 SVHC: No SVHC (27-Jun-2024) |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
| MF60251V2-1000U-A99 | Hersteller : Sunon |
DC Brushless Fan 60x60x25 mm |
auf Bestellung 3170 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
| MF60251V2-1000U-A99 | Hersteller : Sunon |
DC Brushless Fan 60x60x25 mm |
auf Bestellung 1830 Stücke: Lieferzeit 14-21 Tag (e) |
|
