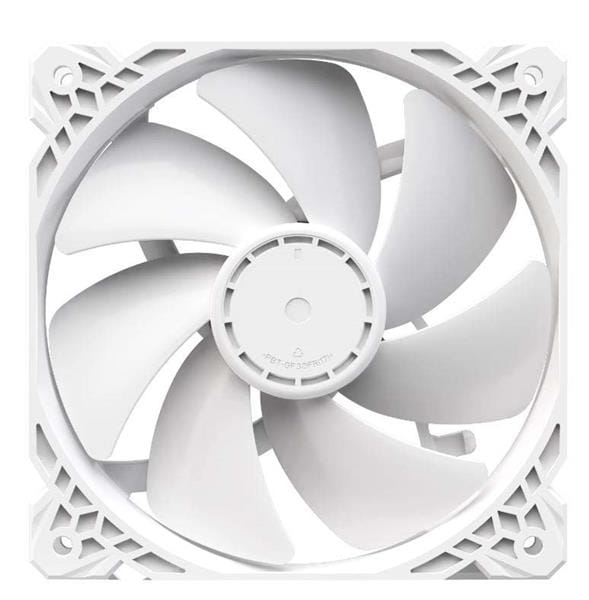

MFC0251V2-1Q02U-S99 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 120x120x25mm; 100.55m3/h; 31.8dBA; Vapo
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 10.2...13.2V DC
Fan dimensions: 120x120x25mm
Power consumption: 1.28W
Current rating: 88mA
Fan efficiency: 100.55m3/h
Noise level: 31.8dBA
Kind of Bearing: Vapo
Rotational rate/speed: 1900rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x4
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Application: personal computer
Engineering PN: MF12025
| Anzahl | Privatkunde |
|---|---|
| 9+ | 10.48 EUR |
| 10+ | 9.42 EUR |
| 12+ | 8.7 EUR |
| 30+ | 7.71 EUR |
| 60+ | 7.09 EUR |
| 90+ | 6.82 EUR |
| 120+ | 6.68 EUR |
| 240+ | 6.41 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MFC0251V2-1Q02U-S99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 120x120x25mm; 100.55m3/h; 31.8dBA; Vapo, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 10.2...13.2V DC, Fan dimensions: 120x120x25mm, Power consumption: 1.28W, Current rating: 88mA, Fan efficiency: 100.55m3/h, Noise level: 31.8dBA, Kind of Bearing: Vapo, Rotational rate/speed: 1900rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x4, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Application: personal computer, Engineering PN: MF12025.
Weitere Produktangebote MFC0251V2-1Q02U-S99 nach Preis ab 9.41 EUR bis 30.1 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MFC0251V2-1Q02U-S99 | Sunon Fans |
Description: CASE FAN 120X25MM 12VDC TACH/PWM Power (Watts): 1.06 W Static Pressure: 0.110 in H2O (27.4 Pa) Noise: 26.6dB(A) Fan Type: Tubeaxial Approval Agency: CE, CUR, TUV, UL Termination: 4 Wire Leads Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Width: 25.00mm Air Flow: 59.4 CFM (1.66m³/min) RPM: 1900 RPM Bearing Type: Vapo-Bearing™ Size / Dimension: Square - 120mm L x 120mm H Voltage - Rated: 12VDC Features: Auto Restart, PWM Control, Speed Sensor (Tach) Packaging: Box |
auf Bestellung 2923 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
MFC0251V2-1Q02U-S99 | Sunon |
Blowers & Centrifugal Fans Axial Fan, 120x120x25mm, 12VDC, Vapo, 4x Wire, Auto Restart/Tach/PWM, for Gaming |
auf Bestellung 646 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| MFC0251V2-1Q02U-S99 | Sunon |
MFC0251V2-1Q02U-S99 |
auf Bestellung 288 Stücke: Lieferzeit 14-21 Tag (e) |
|
| MFC0251V2-1Q02U-S99 |
|
Hersteller: Sunon Fans
Description: CASE FAN 120X25MM 12VDC TACH/PWM
Power (Watts): 1.06 W
Static Pressure: 0.110 in H2O (27.4 Pa)
Noise: 26.6dB(A)
Fan Type: Tubeaxial
Approval Agency: CE, CUR, TUV, UL
Termination: 4 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Width: 25.00mm
Air Flow: 59.4 CFM (1.66m³/min)
RPM: 1900 RPM
Bearing Type: Vapo-Bearing™
Size / Dimension: Square - 120mm L x 120mm H
Voltage - Rated: 12VDC
Features: Auto Restart, PWM Control, Speed Sensor (Tach)
Packaging: Box
Description: CASE FAN 120X25MM 12VDC TACH/PWM
Power (Watts): 1.06 W
Static Pressure: 0.110 in H2O (27.4 Pa)
Noise: 26.6dB(A)
Fan Type: Tubeaxial
Approval Agency: CE, CUR, TUV, UL
Termination: 4 Wire Leads
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Width: 25.00mm
Air Flow: 59.4 CFM (1.66m³/min)
RPM: 1900 RPM
Bearing Type: Vapo-Bearing™
Size / Dimension: Square - 120mm L x 120mm H
Voltage - Rated: 12VDC
Features: Auto Restart, PWM Control, Speed Sensor (Tach)
Packaging: Box
auf Bestellung 2923 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 16.45 EUR |
| 10+ | 13.57 EUR |
| 25+ | 12.89 EUR |
| MFC0251V2-1Q02U-S99 |
|
Hersteller: Sunon
Blowers & Centrifugal Fans Axial Fan, 120x120x25mm, 12VDC, Vapo, 4x Wire, Auto Restart/Tach/PWM, for Gaming
Blowers & Centrifugal Fans Axial Fan, 120x120x25mm, 12VDC, Vapo, 4x Wire, Auto Restart/Tach/PWM, for Gaming
auf Bestellung 646 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 30.1 EUR |
| 10+ | 25.28 EUR |
| 25+ | 23.31 EUR |
| 40+ | 21.93 EUR |
| 120+ | 20.65 EUR |
| 280+ | 20.63 EUR |
| MFC0251V2-1Q02U-S99 |
|
Hersteller: Sunon
MFC0251V2-1Q02U-S99
MFC0251V2-1Q02U-S99
auf Bestellung 288 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 13+ | 14.34 EUR |
| 25+ | 13.82 EUR |
| 50+ | 12.35 EUR |
| 100+ | 10.15 EUR |
| 250+ | 9.41 EUR |
