Hersteller: Fischer Elektronik

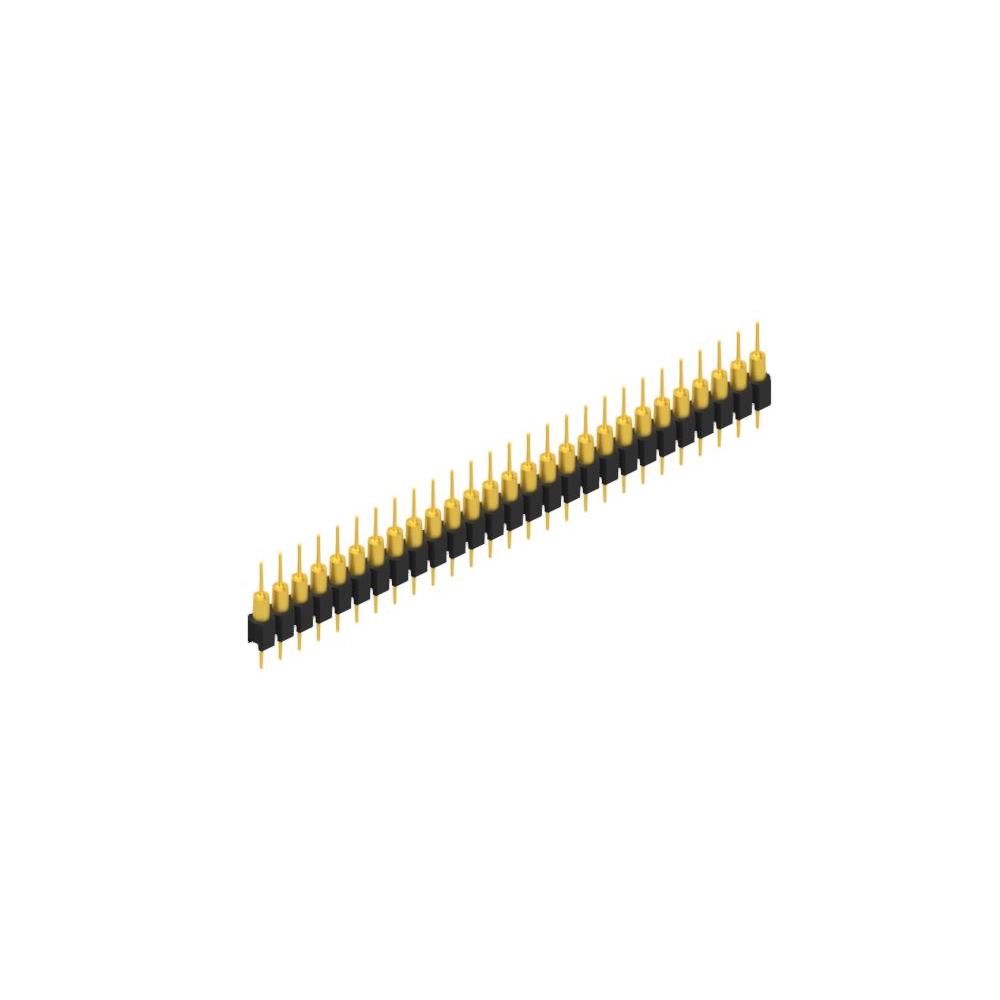

Description: Solder and plug pins, D0.5 mm
Packaging: Bulk
Connector Type: Header
Voltage Rating: 60VDC
Current Rating (Amps): 1.5A
Mounting Type: Through Hole
Number of Positions: 27
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 163°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Zinc
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 7.87µin (0.200µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.130" (3.30mm)
Shrouding: Unshrouded
Overall Contact Length: 0.528" (13.42mm)
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Length - Mating: 0.165" (4.20mm)

Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

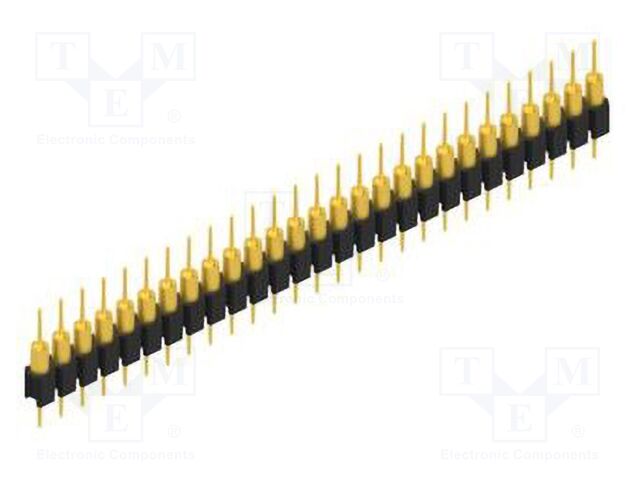

Description: Connector: pin strips; pin header; male; PIN: 27; THT; 1.5A; 60V
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 27
Electrical mounting: THT
Current rating: 1.5A
Rated voltage: 60V
Manufacturer series: MK 14 X 1
Spatial orientation: straight
Contacts pitch: 2.54mm
Connector pinout layout: 1x27
Contact plating: gold-plated
Connector variant: precision; turned contacts
Kind of package: bulk
Flammability rating: UL94V-0
Contact material: brass
Body material: polyamide 46
Overall length: 13.4mm
Body colour: black
Operating temperature: -40...163°C
