Produkte > WIMA > MKP1W036807J00KSSD

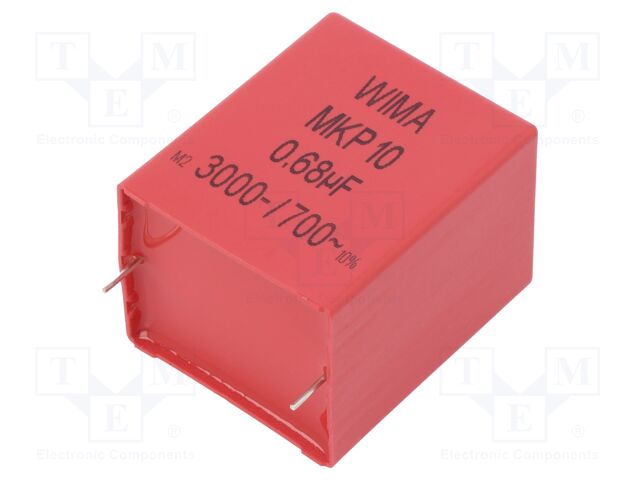

MKP1W036807J00KSSD

MKP1W036807J00KSSD WIMA

pVersion=0046&contRep=ZT&docId=005056AB90B41EDB9FFFFC00ECA660C7&compId=MKP1W041007K00KSSD.PDF?ci_sign=18735a9050ba2f24426e58ae0b1c696970abc670 Hersteller: WIMA
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 680nF; Uoper: 3kVDC; Uoper max: 3kVDC
Type of capacitor: polypropylene
Capacitance: 0.68µF
Mounting: THT
Tolerance: ±10%
Operating temperature: -55...110°C
Pulse resistance: 1.15kV/μs
Max. operating voltage: 700V AC; 3kV DC
Operating voltage: 3kV DC
Climate class: 55/100/56
Flammability rating: UL94V-0
Body dimensions: 41.5x35x50mm
Terminal pitch: 37.5mm
Lead length: 6mm
Capacitors features: low dielectric loss factor; self-healing feature
Kind of material: flame retardant
Kind of package: cardboard packaging
Capacitor application: audio equipment; impulse circuits
Anzahl je Verpackung: 1 Stücke
auf Bestellung 21 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
6+13.24 EUR
10+11.81 EUR
25+10.35 EUR
35+9.77 EUR
70+8.74 EUR
105+8.49 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details MKP1W036807J00KSSD WIMA

Category: THT Film Capacitors, Description: Capacitor: polypropylene; 680nF; Uoper: 3kVDC; Uoper max: 3kVDC, Type of capacitor: polypropylene, Capacitance: 0.68µF, Mounting: THT, Tolerance: ±10%, Operating temperature: -55...110°C, Pulse resistance: 1.15kV/μs, Max. operating voltage: 700V AC; 3kV DC, Operating voltage: 3kV DC, Climate class: 55/100/56, Flammability rating: UL94V-0, Body dimensions: 41.5x35x50mm, Terminal pitch: 37.5mm, Lead length: 6mm, Capacitors features: low dielectric loss factor; self-healing feature, Kind of material: flame retardant, Kind of package: cardboard packaging, Capacitor application: audio equipment; impulse circuits, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote MKP1W036807J00KSSD nach Preis ab 11.81 EUR bis 20.59 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
MKP1W036807J00KSSD MKP1W036807J00KSSD Hersteller : WIMA pVersion=0046&contRep=ZT&docId=005056AB90B41EDB9FFFFC00ECA660C7&compId=MKP1W041007K00KSSD.PDF?ci_sign=18735a9050ba2f24426e58ae0b1c696970abc670 Category: THT Film Capacitors
Description: Capacitor: polypropylene; 680nF; Uoper: 3kVDC; Uoper max: 3kVDC
Type of capacitor: polypropylene
Capacitance: 0.68µF
Mounting: THT
Tolerance: ±10%
Operating temperature: -55...110°C
Pulse resistance: 1.15kV/μs
Max. operating voltage: 700V AC; 3kV DC
Operating voltage: 3kV DC
Climate class: 55/100/56
Flammability rating: UL94V-0
Body dimensions: 41.5x35x50mm
Terminal pitch: 37.5mm
Lead length: 6mm
Capacitors features: low dielectric loss factor; self-healing feature
Kind of material: flame retardant
Kind of package: cardboard packaging
Capacitor application: audio equipment; impulse circuits
auf Bestellung 21 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
6+13.24 EUR
10+11.81 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
MKP1W036807J00KSSD MKP1W036807J00KSSD Hersteller : WIMA e_WIMA_MKP_10.pdf Description: CAP FILM 0.68UF 10% 3KVDC RADIAL
Packaging: Bulk
Tolerance: ±10%
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 110°C
Applications: High Pulse, DV/DT
Lead Spacing: 1.476" (37.50mm)
Termination: PC Pins
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 700V
Voltage Rating - DC: 3000V (3kV)
Height - Seated (Max): 1.969" (50.00mm)
Part Status: Active
Capacitance: 0.68 µF
Size / Dimension: 1.634" L x 1.378" W (41.50mm x 35.00mm)
auf Bestellung 130 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+20.59 EUR
35+14.46 EUR
70+13.83 EUR
105+13.51 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MKP1W036807J00KSSD MKP1W036807J00KSSD Hersteller : WIMA e_WIMA_MKP_10-1139811.pdf Film Capacitors 0.68uF 10% 3000 VDC 35x50x41.5mm
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
