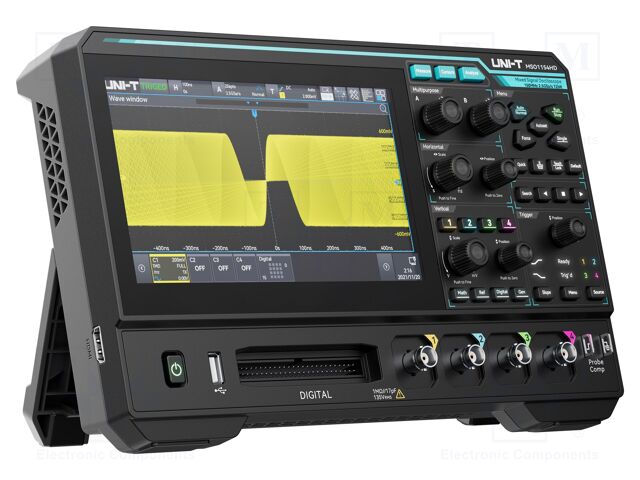

MSO1154HD UNI-TREND TECHNOLOGY EU GmbH

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 4; 150MHz; 2,5Gsps; 100Mpts; 2n÷1ks/div, Interface: AUX; HDMI; LAN; USB device; USB Host, Dimensions: 282x175x49mm, Number of channels: 4, Standard equipment: mains cable; test probe x2; USB cable, Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay, Memory record length: 100Mpts, Band: 150MHz, Measuring instrument features: automatic measurement of many parameters; built-in frequency meter; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; spectrum analysis; split screen function; voltmeter function, Input impedance: 1MΩ/17pF, Manufacturer series: MSO1000HD, Input sensitivity: 500µV/div...10V/div, Vertical resolution: 12bit, Type of oscilloscope: digital, Kind of display used: LCD 7"; touch screen, Input coupling: AC, DC, GND, Rise time: 2.2ns, Sampling: 2,5Gsps, Display resolution: 1024x600, Time base: 2n...1ks/div, Supply voltage: 100...240V AC.
