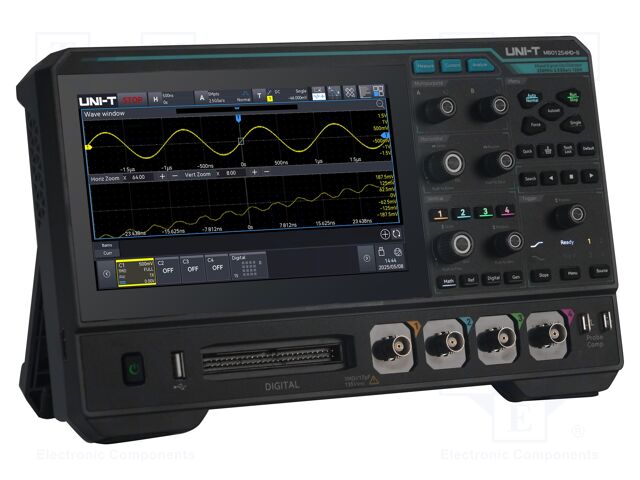

MSO1254HD-S UNI-T

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 4; 250MHz; 2,5Gsps; 100Mpts; 2n÷1ks/div, Supply voltage: 100...240V AC, Measuring instrument features: arbitrary waveform generator; automatic measurement of many parameters; built-in frequency meter; it can be powered by a portable powerbank via UBC-C port; logic analyser; mathematical functions: addition, subtraction, division, multiplication and FFT; power analysis; spectrum analysis; split screen function; voltmeter function, Manufacturer series: MSO1000HD, Standard equipment: mains cable; test probe x2; USB cable, Input sensitivity: 500µV/div...10V/div, Memory record length: 100Mpts, Type of oscilloscope: digital, Vertical resolution: 12bit, Kind of display used: LCD 7"; touch screen, Input coupling: AC, DC, GND, Rise time: ≤1.4ns, Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay, Sampling: 2,5Gsps, Display resolution: 1024x600, Input impedance: 1MΩ/17pF, Dimensions: 282x175x49mm, Band: 250MHz, Time base: 2n...1ks/div, Interface: AUX; HDMI; LAN; USB device; USB Host, Number of channels: 4.
