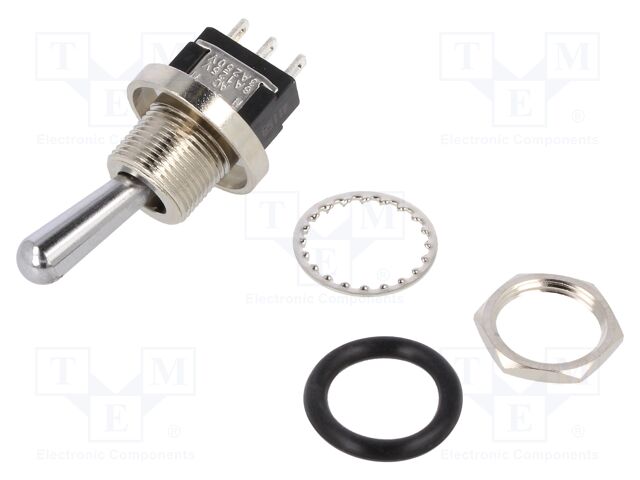

MTW 106 E KNITTER-SWITCH
Hersteller: KNITTER-SWITCH
Category: Toggle Switches
Description: Switch: toggle; Pos: 3; SPDT; ON-OFF-ON; 6A/125VAC; 6A/6VDC; MTW
Type of switch: toggle
Number of positions: 3
Stable positions number: 3
Contacts configuration: SPDT
Switching method: ON-OFF-ON
AC contacts rating @R: 6A / 125V AC
Leads: flat pin
Operating temperature: -45...140°C
Mounting hole diameter: Ø12.5mm
Max. contact resistance:: 20mΩ
Body dimensions: 9.2x13x7.8mm
Terminal pitch: 4.3mm
DC contacts rating @R: 6A / 6V DC
Mechanical durability: 100000 cycles
Manufacturer series: MTW
Body colour: black
Mounting: screw
Contact plating: silver plated
IP rating: IP67
Illumination: none
Body material: plastic
| Anzahl | Privatkunde |
|---|---|
| 4+ | 24.73 EUR |
| 5+ | 20.27 EUR |
| 10+ | 15.79 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MTW 106 E KNITTER-SWITCH
Category: Toggle Switches, Description: Switch: toggle; Pos: 3; SPDT; ON-OFF-ON; 6A/125VAC; 6A/6VDC; MTW, Type of switch: toggle, Number of positions: 3, Stable positions number: 3, Contacts configuration: SPDT, Switching method: ON-OFF-ON, AC contacts rating @R: 6A / 125V AC, Leads: flat pin, Operating temperature: -45...140°C, Mounting hole diameter: Ø12.5mm, Max. contact resistance:: 20mΩ, Body dimensions: 9.2x13x7.8mm, Terminal pitch: 4.3mm, DC contacts rating @R: 6A / 6V DC, Mechanical durability: 100000 cycles, Manufacturer series: MTW, Body colour: black, Mounting: screw, Contact plating: silver plated, IP rating: IP67, Illumination: none, Body material: plastic.
Weitere Produktangebote MTW 106 E nach Preis ab 20.68 EUR bis 29.35 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MTW 106 E | Knitter-Switch |
Description: SWITCH TOGGLE 1-POLE ON OFF ON Packaging: Box Current Rating (Amps): 6A (AC), 4A (DC) Mounting Type: Panel Mount Circuit: SPDT Switch Function: On-Off-On Operating Temperature: -45°C ~ 140°C Termination Style: Solder Lug Illumination: Non-Illuminated Bushing Thread: 15/32-32 Actuator Length: 17.00mm Actuator Type: Standard Round Ingress Protection: IP67 - Dust Tight, Waterproof Panel Cutout Dimensions: Circular - 12.50mm Dia Voltage Rating - AC: 125 V Voltage Rating - DC: 30 V |
auf Bestellung 437 Stücke: Lieferzeit 10-14 Tag (e) |
|
| MTW 106 E |
|
Hersteller: Knitter-Switch
Description: SWITCH TOGGLE 1-POLE ON OFF ON
Packaging: Box
Current Rating (Amps): 6A (AC), 4A (DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: On-Off-On
Operating Temperature: -45°C ~ 140°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: 15/32-32
Actuator Length: 17.00mm
Actuator Type: Standard Round
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 12.50mm Dia
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
Description: SWITCH TOGGLE 1-POLE ON OFF ON
Packaging: Box
Current Rating (Amps): 6A (AC), 4A (DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: On-Off-On
Operating Temperature: -45°C ~ 140°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: 15/32-32
Actuator Length: 17.00mm
Actuator Type: Standard Round
Ingress Protection: IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions: Circular - 12.50mm Dia
Voltage Rating - AC: 125 V
Voltage Rating - DC: 30 V
auf Bestellung 437 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 29.35 EUR |
| 10+ | 25.54 EUR |
| 25+ | 24.15 EUR |
| 50+ | 23.13 EUR |
| 100+ | 22.16 EUR |
| 300+ | 20.68 EUR |
