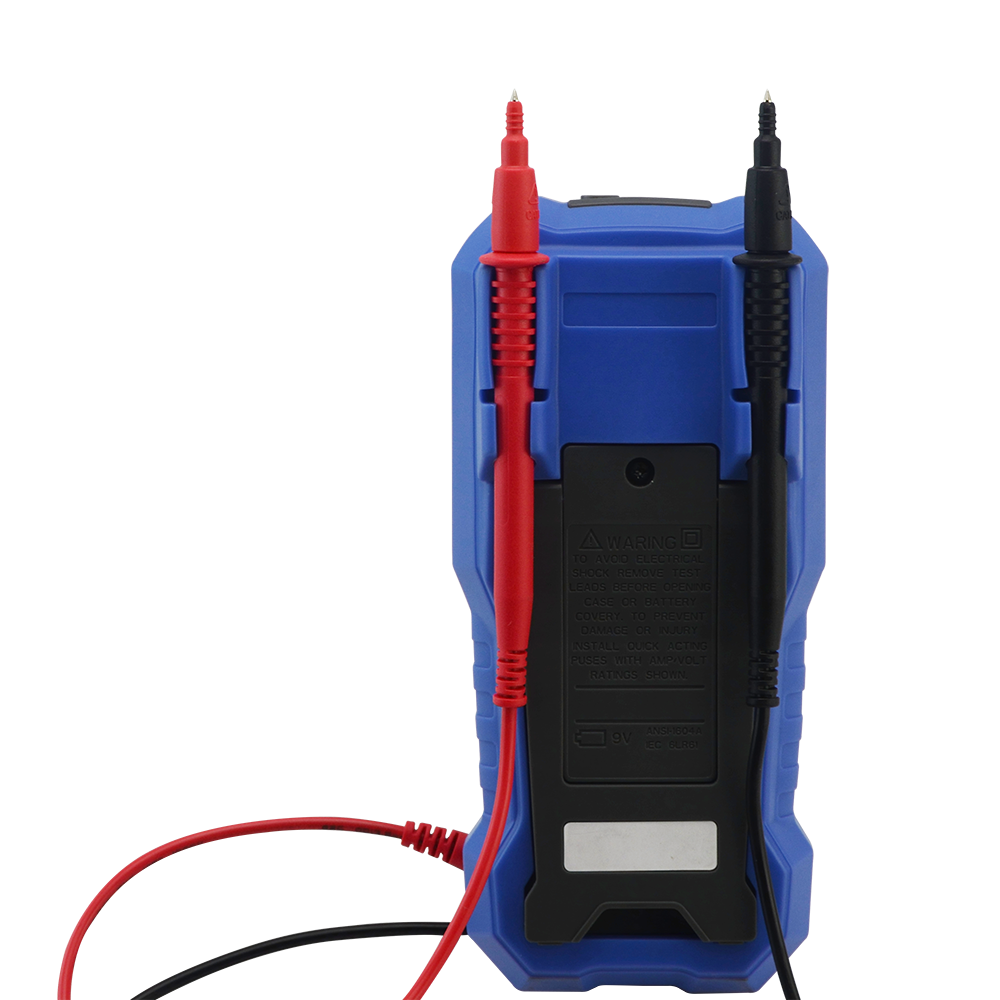

Мультиметр цифровий True RMS , OW18A
Мультиметр цифровий True RMS , OW18A
Мультиметр цифровий True RMS , OW18AМультиметр цифровий True RMS , OW18A

Мультиметр цифровий True RMS , OW18A OWON

OW18AB.pdf
Produktcode: 220825
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller: OWON
Gruppe: Мультиметри
Beschreibung: Digital Multimeter True RMS mit Display auf 5999 Counts mit Hintergrundbeleuchtung. Messung Spannung: 600mV...1000VDC(750AC) Gleich- und Wechsel- Strom: 600.0uA...20.00A, Widerstand: 600.0 Ohm..60.00MOhm, Kapazität 60.00nF...60.00mF, Frequenz 9.999Hz...9.999MHz, Koeffizient Füllung 0.1%...99.9%, Temperatur -50℃...+400℃. Unterstützt NCV und Funktion Taschenlampe, Test Dioden. Frequenz- Bereich Messung Wechsel- Strom beträgt 40...1000Hz. Stromversorgung: 6F22. Abmessungen: 190x90x56mm
Frequenzmessung: 9,99Hz...9,99 MHz
Spannungs- und Strommessung: 600 mV...1000V/ 20 A
Widerstandsmessung: 600 Ohm...60 MOhm
Induktivitätsmessung: нема
Kapazitätsmessung: 60 nF...60 mF
Temperaturmessung: -50...+400°C
Produkt ist nicht verfügbar
erwartet: 4 St.
  • 4 St. - erwartet
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Weitere Produktangebote Мультиметр цифровий True RMS , OW18A nach Preis ab 31.75 EUR bis 31.75 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit Privatkunde
OW18A OW18A OWON OW18AB.pdf OW18A-manual.pdf Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3 5/6 digits; 3x/s; True RMS; -50÷400°C
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; resistance; temperature
Kind of display used: LCD
Display parameters: 3 5/6 digits
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 750V
AC voltage measuring accuracy: ±(0.8% + 3 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 10A; 20A
DC current measuring accuracy: ±(0.8% + 2 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 10A
AC current measuring accuracy: ±(1% + 3 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF
Capacitance measuring accuracy: ±(3%+ 3 digit)
Frequency measuring range: 9999mHz...9999kHz
Frequency measuring accuracy: ±(0.8%+2 digit)
Temperature measuring range: -50...400°C
Resistance measuring accuracy: ±(0.8%+2 digit)
Continuity test: acoustic indication; <30Ω
Power supply: battery 6F22 9V x1
Standard equipment: K-type thermocouple; screwdriver; test leads
Conform to the norm: CAT III 1000V; EN 61010
Dimensions (W x H x D): 90x190x56mm
Measuring instrument features: auto and manual ranging; automatic power-off; built-in torch; contactless voltage detector; HOLD function; low battery indicator; REL function
Battery/ rechargeable battery: battery 6F22 9V x1
Illumination: yes
Sampling: 3x/s
Test: diodes
Temperature measurement accuracy: ±(2.5% + 3 digit)
auf Bestellung 358 Stücke:
Lieferzeit 14-21 Tag (e)
3+31.75 EUR
Mindestbestellmenge: 3 Stücke
