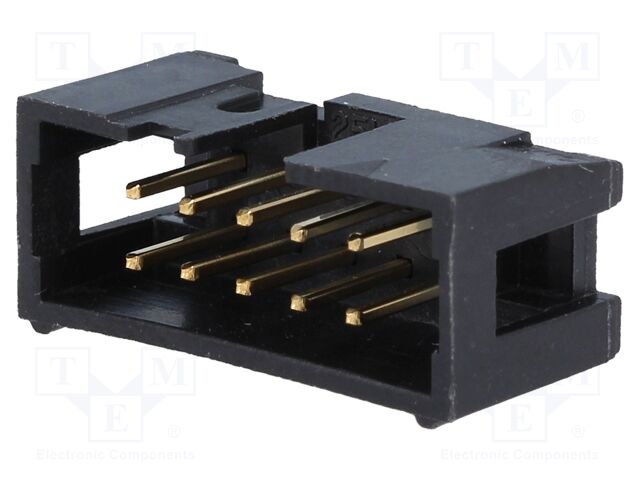

N2510-6002RB 3M
Hersteller: 3M
Category: IDC connectors
Description: Connector: IDC; socket; male; PIN: 10; 2500; straight; 2A; THT; 2.54mm
Type of connector: IDC
Connector: socket
Kind of connector: male
Number of pins: 10
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x5
Contact plating: gold-plated
Operating temperature: -55...105°C
Lead length: 2.84mm
Maximum current: 2A
Manufacturer series: 2500
Mechanical mounting: on PCBs
| Anzahl | Preis |
|---|---|
| 34+ | 2.14 EUR |
| 44+ | 1.64 EUR |
| 46+ | 1.56 EUR |
| 98+ | 1.44 EUR |
| 196+ | 1.4 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details N2510-6002RB 3M
Description: CONN HEADER VERT 10POS 2.54MM, Packaging: Tray, Features: Keying Slot, Connector Type: Header, Current Rating (Amps): 1.75A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.112" (2.84mm), Insulation Height: 0.390" (9.91mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.243" (6.17mm).
Weitere Produktangebote N2510-6002RB nach Preis ab 1.57 EUR bis 2.76 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N2510-6002-RB | 3M |
 Description: CONN HEADER VERT 10POS 2.54MMPackaging: Tray Features: Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Through Hole Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.112" (2.84mm) Insulation Height: 0.390" (9.91mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.243" (6.17mm) |
auf Bestellung 26279 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
N2510-6002RB | 3M Electronic Solutions Division |
Headers & Wire Housings 10P STRT SOLDER TAIL HIGH TEMP |
auf Bestellung 11209 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
N2510-6002RB | 3M |
Description: 3M - N2510-6002RB - Stiftleiste, Wire-to-Board, 2.54 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage, gerade, 2500 tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupfer isCanonical: Y usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 10Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: 2500 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (15-Jan-2018) |
auf Bestellung 7558 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| N2510-6002-RB |
|
Hersteller: 3M
Description: CONN HEADER VERT 10POS 2.54MM
Packaging: Tray
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.112" (2.84mm)
Insulation Height: 0.390" (9.91mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.243" (6.17mm)
Description: CONN HEADER VERT 10POS 2.54MM
Packaging: Tray
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.112" (2.84mm)
Insulation Height: 0.390" (9.91mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.243" (6.17mm)
auf Bestellung 26279 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 7+ | 2.73 EUR |
| 98+ | 1.96 EUR |
| 196+ | 1.87 EUR |
| 588+ | 1.73 EUR |
| 1078+ | 1.66 EUR |
| 5096+ | 1.57 EUR |
| N2510-6002RB |
|
Hersteller: 3M Electronic Solutions Division
Headers & Wire Housings 10P STRT SOLDER TAIL HIGH TEMP
Headers & Wire Housings 10P STRT SOLDER TAIL HIGH TEMP
auf Bestellung 11209 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 2.76 EUR |
| 10+ | 2.69 EUR |
| 25+ | 2.32 EUR |
| 100+ | 2.22 EUR |
| 250+ | 2.18 EUR |
| 784+ | 2.13 EUR |
| 2352+ | 2.06 EUR |
| N2510-6002RB |
|
Hersteller: 3M
Description: 3M - N2510-6002RB - Stiftleiste, Wire-to-Board, 2.54 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage, gerade, 2500
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupfer
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: 2500
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (15-Jan-2018)
Description: 3M - N2510-6002RB - Stiftleiste, Wire-to-Board, 2.54 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage, gerade, 2500
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupfer
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 10Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: 2500
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (15-Jan-2018)
auf Bestellung 7558 Stücke:
Lieferzeit 14-21 Tag (e)
