N3428-6302RB

N3428-6302RB 3M


3000%20Series%2C%20Four-Wall%20Header%20Drawing.pdf Hersteller: 3M
Category: IDC connectors

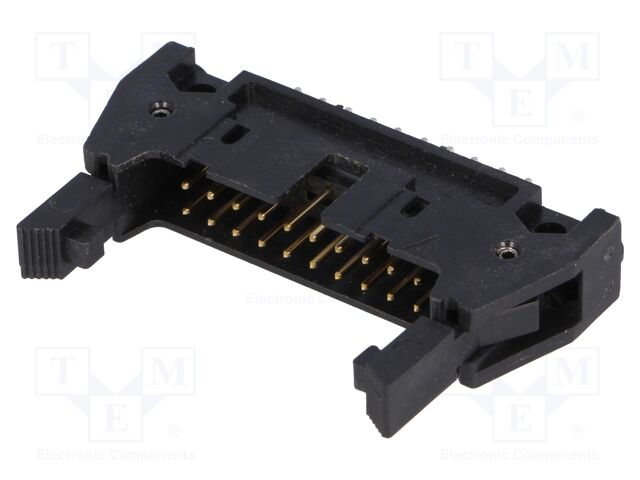

Description: Connector: IDC; socket; male; PIN: 20; 3000; straight; 5A; THT; 2.54mm
Type of connector: IDC
Connector: socket
Kind of connector: male
Number of pins: 20
Manufacturer series: 3000
Spatial orientation: straight
Maximum current: 5A
Electrical mounting: THT
Mechanical mounting: on PCBs; screw
Contacts pitch: 2.54mm
Connector pinout layout: 2x10
Contact plating: gold-plated
Connector variant: with long latch
Leads dimensions: L 2.84mm
Operating temperature: -55...105°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
15+4.76 EUR
17+4.20 EUR
1200+2.60 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details N3428-6302RB 3M

Description: CONN HEADER VERT 20POS 2.54MM, Features: Keying Slot, Mounting Flange, Packaging: Tray, Connector Type: Header, Current Rating (Amps): 1.75A, Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Long, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.112" (2.84mm), Insulation Height: 0.680" (17.27mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.652" (16.56mm), Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
