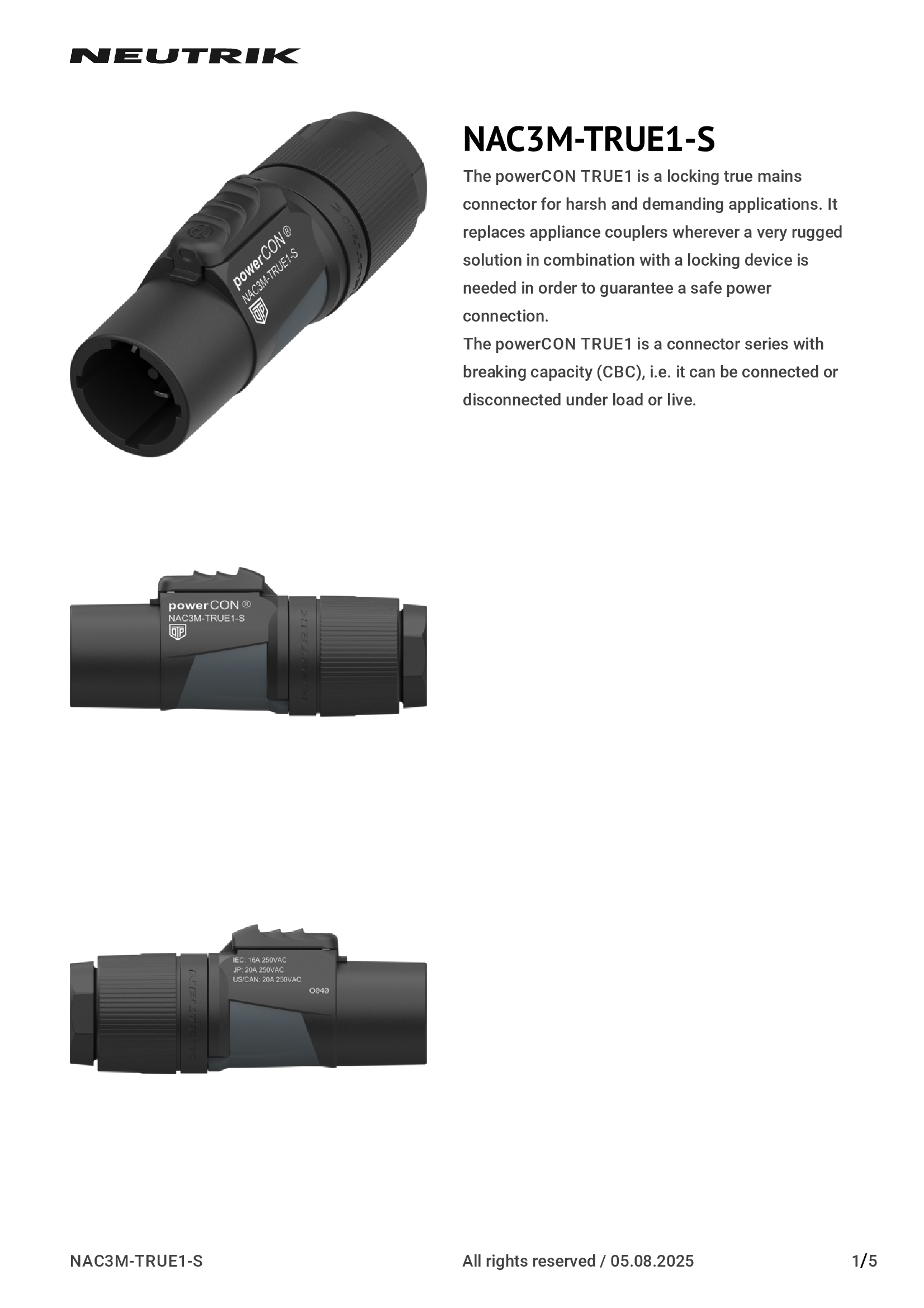

NAC3M-TRUE1-S Neutrik
Hersteller: Neutrik
AC Power Plugs & Receptacles Cable end - male - power in small chuck for cable 6-12 mm
| Anzahl | Preis |
|---|---|
| 1+ | 19.89 EUR |
| 10+ | 19.04 EUR |
| 25+ | 18.48 EUR |
| 50+ | 17.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NAC3M-TRUE1-S Neutrik
Description: CABLE END - POWERCON TRUE1 - MAL, Features: Backshell, Packaging: Box, Connector Type: Plug, Male Pins, Color: Black, Voltage Rating: 250VAC, Current Rating (Amps): 20A, Mounting Type: Free Hanging (In-Line), Shielding: Unshielded, Number of Positions: 3 (2 + PE), Orientation: N (Normal), Operating Temperature: -30°C ~ 80°C, Fastening Type: Latch Lock, Termination: Solder Cup, Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof, Cable Opening: 0.236" ~ 0.472" (6.00mm ~ 12.00mm), Material Flammability Rating: UL94 V-0, Contact Finish - Mating: Silver, Shell Material: Polyamide (PA66), Nylon 6/6, Primary Material: Plastic.
Weitere Produktangebote NAC3M-TRUE1-S nach Preis ab 17.23 EUR bis 22.7 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NAC3M-TRUE1-S | Hersteller : Neutrik Americas, Inc. |
Description: CABLE END - POWERCON TRUE1 - MAL Features: Backshell Packaging: Box Connector Type: Plug, Male Pins Color: Black Voltage Rating: 250VAC Current Rating (Amps): 20A Mounting Type: Free Hanging (In-Line) Shielding: Unshielded Number of Positions: 3 (2 + PE) Orientation: N (Normal) Operating Temperature: -30°C ~ 80°C Fastening Type: Latch Lock Termination: Solder Cup Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof Cable Opening: 0.236" ~ 0.472" (6.00mm ~ 12.00mm) Material Flammability Rating: UL94 V-0 Contact Finish - Mating: Silver Shell Material: Polyamide (PA66), Nylon 6/6 Primary Material: Plastic |
auf Bestellung 50 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
NAC3M-TRUE1-S | Hersteller : NEUTRIK |
Description: NEUTRIK - NAC3M-TRUE1-S - High-Power-Steckverbinder, 14 AWG, powerCON TRUE1 Series, Stecker, 250 V, 16 A, Kabelmontage tariffCode: 85366990 rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES isCanonical: Y Ausführung: Stecker Steckverbindermontage: Kabelmontage usEccn: EAR99 Nennstrom: 16A euEccn: NLR Produktpalette: powerCON TRUE1 Series productTraceability: No Kontaktanschluss: Lötanschluss Nennspannung: 250V SVHC: No SVHC (25-Jun-2025) |
auf Bestellung 7 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
| NAC3M-TRUE1-S | Hersteller : NEUTRIK |
Category: Loudspeaker connectors Description: Connector: circular; plug; male; PIN: 3; for cable; 16A; 250VAC; bag Manufacturer series: powerCON TRUE1 Type of connector: circular Kind of connector: male Mechanical mounting: for cable IP rating: IP65; IP67 Connector: plug Spatial orientation: straight Wire cross-section: 1...2.5mm2 Cable external diameter: 6...12mm Number of pins: 3 Wire size: 14AWG...12AWG Current rating: 16A Electrical mounting: screw terminal Rated voltage: 250V AC Kind of package: bag Locking system: bayonet |
Produkt ist nicht verfügbar |
