NBB20-U1-A2

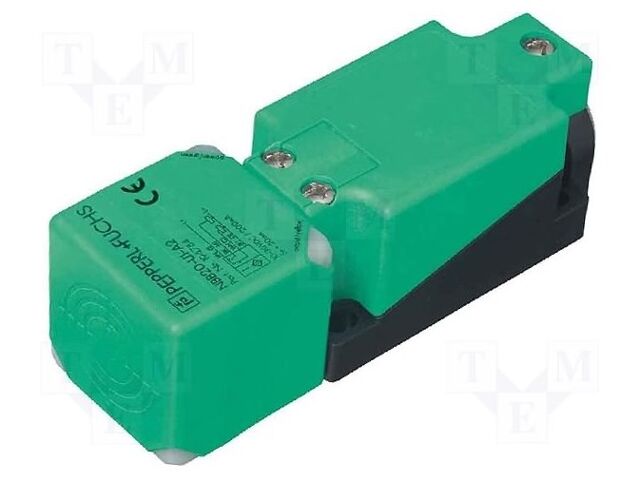

NBB20-U1-A2 PEPPERL+FUCHS

pVersion=0046&contRep=ZT&docId=E1C043F076B297F1A6F5005056AB5A8F&compId=194784.pdf?ci_sign=482fb94d4f6677c7fc1c5e7dbba919a0b2631335 Hersteller: PEPPERL+FUCHS
Category: Rectangle Inductive Sensors
Description: Sensor: inductive; 0÷20mm; PNP / NO + NC; Usup: 10÷30VDC; 200mA
Type of sensor: inductive
Range: 0...20mm
Output configuration: PNP / NO + NC
Supply voltage: 10...30V DC
Max. operating current: 200mA
Connection: screw terminals
IP rating: IP68
Switching frequency max: 150Hz
Body dimensions: 40x40x118mm
Operating temperature: -25...85°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details NBB20-U1-A2 PEPPERL+FUCHS

Category: Rectangle Inductive Sensors, Description: Sensor: inductive; 0÷20mm; PNP / NO + NC; Usup: 10÷30VDC; 200mA, Type of sensor: inductive, Range: 0...20mm, Output configuration: PNP / NO + NC, Supply voltage: 10...30V DC, Max. operating current: 200mA, Connection: screw terminals, IP rating: IP68, Switching frequency max: 150Hz, Body dimensions: 40x40x118mm, Operating temperature: -25...85°C, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote NBB20-U1-A2

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
NBB20-U1-A2 NBB20-U1-A2 Hersteller : Pepperl+Fuchs, Inc. 194784_eng.pdf?v=20190103000200 Description: INDUCTIVE SEN 20MM PNP
Packaging: Box
Package / Case: Module
Output Type: PNP-NC/NO, 4-Wire
Sensing Distance: 0.787" (20mm)
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Voltage - Supply: 10V ~ 30V
Material - Body: Polyamide (PA)
Sensor Type: Inductive
Ingress Protection: IP68, IP69K
Indicator: LED
Part Status: Active
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
NBB20-U1-A2 NBB20-U1-A2 Hersteller : PEPPERL+FUCHS pVersion=0046&contRep=ZT&docId=E1C043F076B297F1A6F5005056AB5A8F&compId=194784.pdf?ci_sign=482fb94d4f6677c7fc1c5e7dbba919a0b2631335 Category: Rectangle Inductive Sensors
Description: Sensor: inductive; 0÷20mm; PNP / NO + NC; Usup: 10÷30VDC; 200mA
Type of sensor: inductive
Range: 0...20mm
Output configuration: PNP / NO + NC
Supply voltage: 10...30V DC
Max. operating current: 200mA
Connection: screw terminals
IP rating: IP68
Switching frequency max: 150Hz
Body dimensions: 40x40x118mm
Operating temperature: -25...85°C
