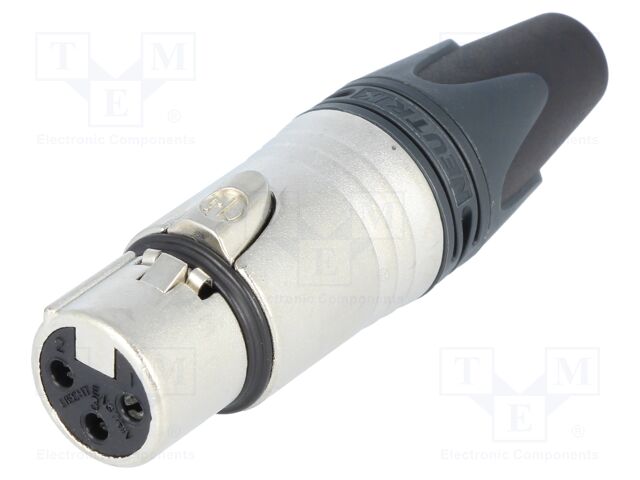

NC3FXX NEUTRIK
Hersteller: NEUTRIK
Category: XLR connectors
Description: Connector: XLR; plug; female; XX; 16A; PIN: 3; straight; for cable
Kind of connector: female
Number of pins: 3
Type of connector: XLR
Spatial orientation: straight
Contact material: bronze
Connector: plug
Mechanical mounting: for cable
Contact plating: silver plated
Plating material: nickel
Body material: zinc die-cast
Body colour: silver
Max cable section: 2.5mm2
Cable external diameter: 3.5...8mm
Current rating: 16A
Wire size: 14AWG
Electrical mounting: soldering
Manufacturer series: XX
| Anzahl | Preis |
|---|---|
| 15+ | 4.93 EUR |
| 16+ | 4.56 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NC3FXX NEUTRIK
Description: CABLE END XX SERIES 3 PIN FEMALE, Features: Backshell, Strain Relief, Packaging: Box, Connector Type: Plug, Female Sockets, Color: Silver, Voltage Rating: 50V, Current Rating (Amps): 16A, Mounting Type: Free Hanging (In-Line), Shielding: Unshielded, Number of Positions: 3, Orientation: N (Normal), Shell Size - Insert: XLR, Operating Temperature: -30°C ~ 80°C, Fastening Type: Latch Lock, Termination: Solder Cup, Ingress Protection: IP40, Cable Opening: 0.138" ~ 0.315" (3.50mm ~ 8.00mm), Material Flammability Rating: UL94 V-0, Contact Finish - Mating: Silver, Shell Material: Zinc Die Cast, Shell Finish: Nickel, Primary Material: Metal.
Weitere Produktangebote NC3FXX nach Preis ab 4.97 EUR bis 8.97 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NC3FXX | Hersteller : Neutrik |
XLR Connectors 3P FEMALE CABLE CONN NICKEL HOUSING |
auf Bestellung 5443 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
NC3FXX | Hersteller : Neutrik® USA Inc. |
Conn XLR Connector F 3 POS Solder ST Cable Mount 3 Terminal 1 Port |
auf Bestellung 1926 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
NC3FXX | Hersteller : Neutrik® USA Inc. |
Conn XLR Connector F 3 POS Solder ST Cable Mount 3 Terminal 1 Port |
auf Bestellung 53 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
NC3FXX | Hersteller : Neutrik® USA Inc. |
Conn XLR Connector F 3 POS Solder ST Cable Mount 3 Terminal 1 Port |
auf Bestellung 2565 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
NC3FXX | Hersteller : Neutrik Americas, Inc. |
Description: CABLE END XX SERIES 3 PIN FEMALE Features: Backshell, Strain Relief Packaging: Box Connector Type: Plug, Female Sockets Color: Silver Voltage Rating: 50V Current Rating (Amps): 16A Mounting Type: Free Hanging (In-Line) Shielding: Unshielded Number of Positions: 3 Orientation: N (Normal) Shell Size - Insert: XLR Operating Temperature: -30°C ~ 80°C Fastening Type: Latch Lock Termination: Solder Cup Ingress Protection: IP40 Cable Opening: 0.138" ~ 0.315" (3.50mm ~ 8.00mm) Material Flammability Rating: UL94 V-0 Contact Finish - Mating: Silver Shell Material: Zinc Die Cast Shell Finish: Nickel Primary Material: Metal |
auf Bestellung 500 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
NC3FXX | Hersteller : Neutrik® USA Inc. |
Conn XLR Connector F 3 POS Solder ST Cable Mount 3 Terminal 1 Port |
auf Bestellung 52 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
NC3FXX | Hersteller : NEUTRIK |
Description: NEUTRIK - NC3FXX - XLR-Steckverbinder, 3 Kontakt(e), Buchse, Kabelmontage, Versilberte Kontakte, Metallgehäuse tariffCode: 85366990 productTraceability: No Kontaktüberzug: Versilberte Kontakte rohsCompliant: YES Ausführung: Buchse Anzahl der Kontakte: 3Kontakt(e) euEccn: NLR isCanonical: Y Steckverbindermaterial: Metallgehäuse hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Steckverbindermontage: Kabelmontage Produktpalette: XX Series SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 3001 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
|
|
NC3FXX | Hersteller : Neutrik® USA Inc. |
Conn XLR Connector F 3 POS Solder ST Cable Mount 3 Terminal 1 Port |
Produkt ist nicht verfügbar |
