NCDW-10 Ninigi
Hersteller: Ninigi
Роз'єм низьковольтного живлення, Тип конт. = Штирьовий ("тато"), Вид = Розетка, К-сть конт. = 10, Крок, мм = 2,54, Тип монт. = на плату,... Роз'єми Корпус: DIP Од. вим: шт
Anzahl je Verpackung: 500 Stücke
verfügbar 20 Stücke:
Produktrezensionen
Produktbewertung abgeben
Technische Details NCDW-10 Ninigi

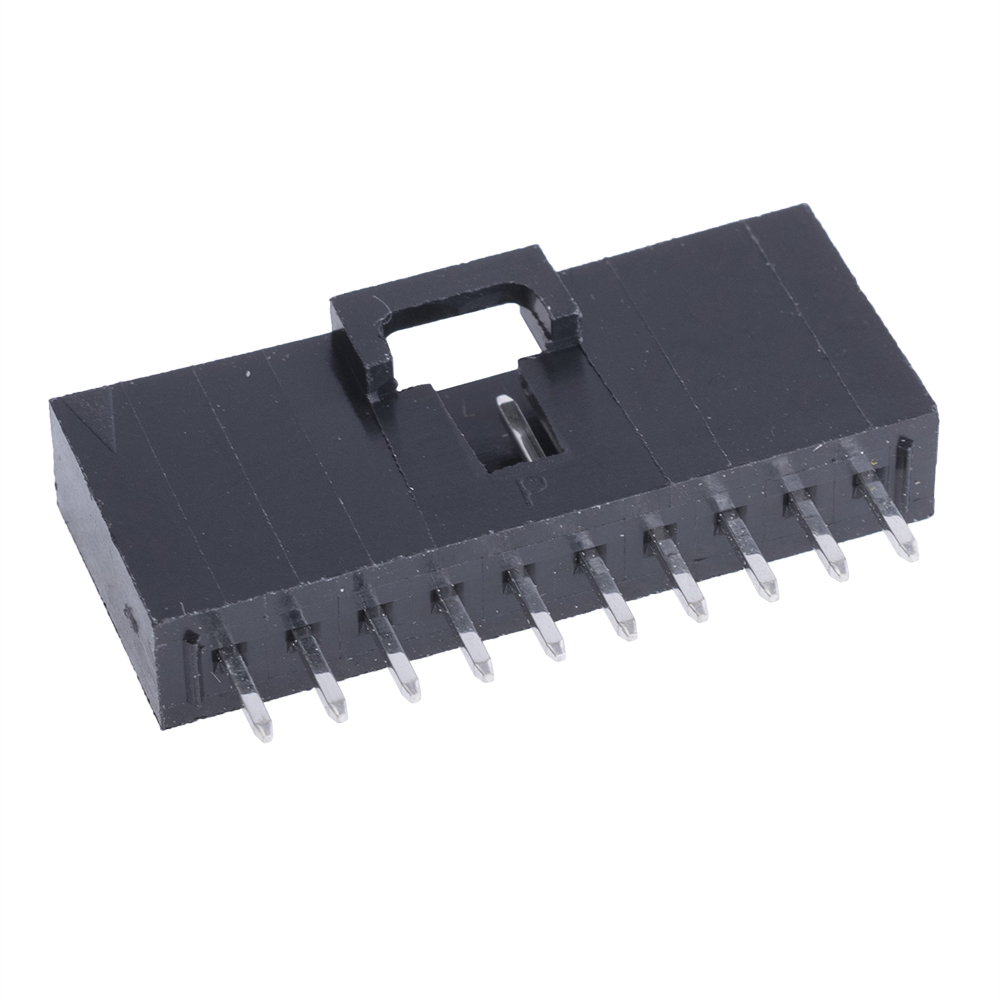

Category: Raster signal connectors 2,54mm, Description: Connector: wire-board; socket; male; PIN: 10; straight; THT; 2.54mm, Type of connector: wire-board, Connector: socket, Kind of connector: male, Number of pins: 10, Spatial orientation: straight, Electrical mounting: THT, Contacts pitch: 2.54mm, Connector pinout layout: 1x10, Contact plating: tinned, Flammability rating: UL94V-0, Maximum current: 2.5A, Locking system: latch, Max. operating voltage: 0.25kV, Max. contact resistance:: 20mΩ, Enclosure material: polyamide, A dimension: 22.86mm, B dimension: 27.95mm, Operating temperature: -25...85°C.
Weitere Produktangebote NCDW-10 nach Preis ab 0.17 EUR bis 0.42 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NCDW-10 | NINIGI |
Category: Raster signal connectors 2,54mm Description: Connector: wire-board; socket; male; PIN: 10; straight; THT; 2.54mm Type of connector: wire-board Connector: socket Kind of connector: male Number of pins: 10 Spatial orientation: straight Electrical mounting: THT Contacts pitch: 2.54mm Connector pinout layout: 1x10 Contact plating: tinned Flammability rating: UL94V-0 Maximum current: 2.5A Locking system: latch Max. operating voltage: 0.25kV Max. contact resistance:: 20mΩ Enclosure material: polyamide A dimension: 22.86mm B dimension: 27.95mm Operating temperature: -25...85°C |
auf Bestellung 1940 Stücke: Lieferzeit 14-21 Tag (e) |
|
| NCDW-10 |
|
Hersteller: NINIGI
Category: Raster signal connectors 2,54mm
Description: Connector: wire-board; socket; male; PIN: 10; straight; THT; 2.54mm
Type of connector: wire-board
Connector: socket
Kind of connector: male
Number of pins: 10
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 1x10
Contact plating: tinned
Flammability rating: UL94V-0
Maximum current: 2.5A
Locking system: latch
Max. operating voltage: 0.25kV
Max. contact resistance:: 20mΩ
Enclosure material: polyamide
A dimension: 22.86mm
B dimension: 27.95mm
Operating temperature: -25...85°C
Category: Raster signal connectors 2,54mm
Description: Connector: wire-board; socket; male; PIN: 10; straight; THT; 2.54mm
Type of connector: wire-board
Connector: socket
Kind of connector: male
Number of pins: 10
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 1x10
Contact plating: tinned
Flammability rating: UL94V-0
Maximum current: 2.5A
Locking system: latch
Max. operating voltage: 0.25kV
Max. contact resistance:: 20mΩ
Enclosure material: polyamide
A dimension: 22.86mm
B dimension: 27.95mm
Operating temperature: -25...85°C
auf Bestellung 1940 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 210+ | 0.42 EUR |
| 280+ | 0.31 EUR |
| 500+ | 0.23 EUR |
| 1000+ | 0.17 EUR |
