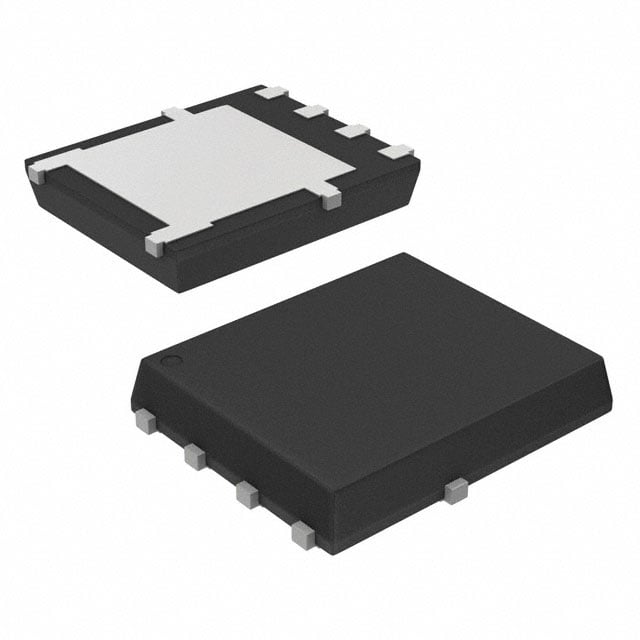

NTMFS4C025NT1G onsemi
Hersteller: onsemi
Description: MOSFET N-CH 30V 20A/69A 5DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerTDFN, 5 Leads
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 69A (Tc)
Rds On (Max) @ Id, Vgs: 3.41mOhm @ 30A, 10V
Power Dissipation (Max): 2.55W (Ta), 30.5W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 5-DFN (5x6) (8-SOFL)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 26 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1683 pF @ 15 V
| Anzahl | Preis |
|---|---|
| 1500+ | 0.27 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NTMFS4C025NT1G onsemi
Description: MOSFET N-CH 30V 20A/69A 5DFN, Packaging: Tape & Reel (TR), Package / Case: 8-PowerTDFN, 5 Leads, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 69A (Tc), Rds On (Max) @ Id, Vgs: 3.41mOhm @ 30A, 10V, Power Dissipation (Max): 2.55W (Ta), 30.5W (Tc), Vgs(th) (Max) @ Id: 2.1V @ 250µA, Supplier Device Package: 5-DFN (5x6) (8-SOFL), Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 30 V, Gate Charge (Qg) (Max) @ Vgs: 26 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 1683 pF @ 15 V.
Weitere Produktangebote NTMFS4C025NT1G nach Preis ab 0.32 EUR bis 1.78 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
NTMFS4C025NT1G | onsemi |
Description: MOSFET N-CH 30V 20A/69A 5DFN Input Capacitance (Ciss) (Max) @ Vds: 1683 pF @ 15 V Gate Charge (Qg) (Max) @ Vgs: 26 nC @ 10 V Drain to Source Voltage (Vdss): 30 V Vgs (Max): ±20V Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Part Status: Active Supplier Device Package: 5-DFN (5x6) (8-SOFL) Vgs(th) (Max) @ Id: 2.1V @ 250µA Power Dissipation (Max): 2.55W (Ta), 30.5W (Tc) Rds On (Max) @ Id, Vgs: 3.41mOhm @ 30A, 10V Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 69A (Tc) FET Type: N-Channel Technology: MOSFET (Metal Oxide) Operating Temperature: -55°C ~ 150°C (TJ) Mounting Type: Surface Mount Package / Case: 8-PowerTDFN, 5 Leads Packaging: Cut Tape (CT) |
auf Bestellung 1770 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
NTMFS4C025NT1G | onsemi |
MOSFET TRENCH 6 30V NCH |
auf Bestellung 238 Stücke: Lieferzeit 10-14 Tag (e) |
|
| NTMFS4C025NT1G |
|
Hersteller: onsemi
Description: MOSFET N-CH 30V 20A/69A 5DFN
Input Capacitance (Ciss) (Max) @ Vds: 1683 pF @ 15 V
Gate Charge (Qg) (Max) @ Vgs: 26 nC @ 10 V
Drain to Source Voltage (Vdss): 30 V
Vgs (Max): ±20V
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Part Status: Active
Supplier Device Package: 5-DFN (5x6) (8-SOFL)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Power Dissipation (Max): 2.55W (Ta), 30.5W (Tc)
Rds On (Max) @ Id, Vgs: 3.41mOhm @ 30A, 10V
Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 69A (Tc)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerTDFN, 5 Leads
Packaging: Cut Tape (CT)
Description: MOSFET N-CH 30V 20A/69A 5DFN
Input Capacitance (Ciss) (Max) @ Vds: 1683 pF @ 15 V
Gate Charge (Qg) (Max) @ Vgs: 26 nC @ 10 V
Drain to Source Voltage (Vdss): 30 V
Vgs (Max): ±20V
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Part Status: Active
Supplier Device Package: 5-DFN (5x6) (8-SOFL)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Power Dissipation (Max): 2.55W (Ta), 30.5W (Tc)
Rds On (Max) @ Id, Vgs: 3.41mOhm @ 30A, 10V
Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 69A (Tc)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerTDFN, 5 Leads
Packaging: Cut Tape (CT)
auf Bestellung 1770 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 17+ | 1.06 EUR |
| 27+ | 0.66 EUR |
| 100+ | 0.43 EUR |
| 500+ | 0.32 EUR |
| NTMFS4C025NT1G |
|
Hersteller: onsemi
MOSFET TRENCH 6 30V NCH
MOSFET TRENCH 6 30V NCH
auf Bestellung 238 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 2+ | 1.78 EUR |
| 10+ | 1.49 EUR |
| 100+ | 1.16 EUR |
| 500+ | 0.96 EUR |
| 1000+ | 0.87 EUR |
| 1500+ | 0.76 EUR |
| 3000+ | 0.7 EUR |
