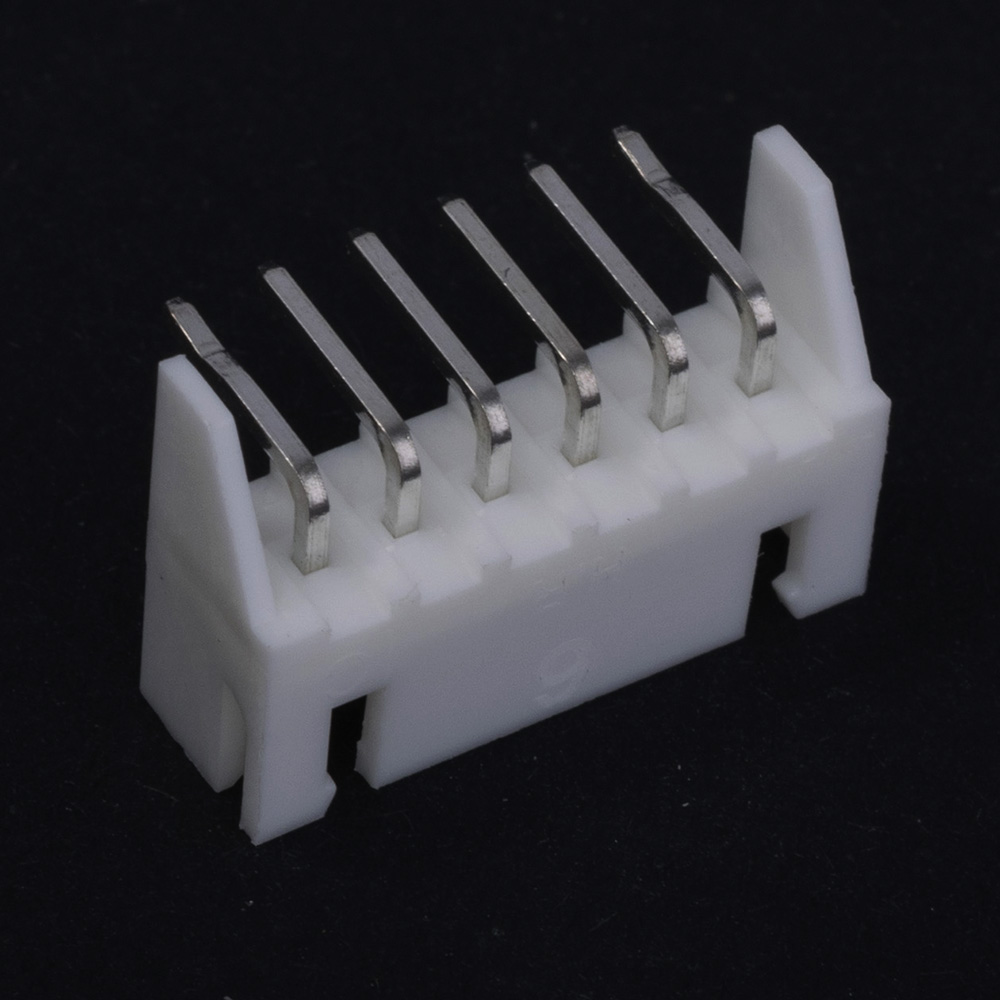

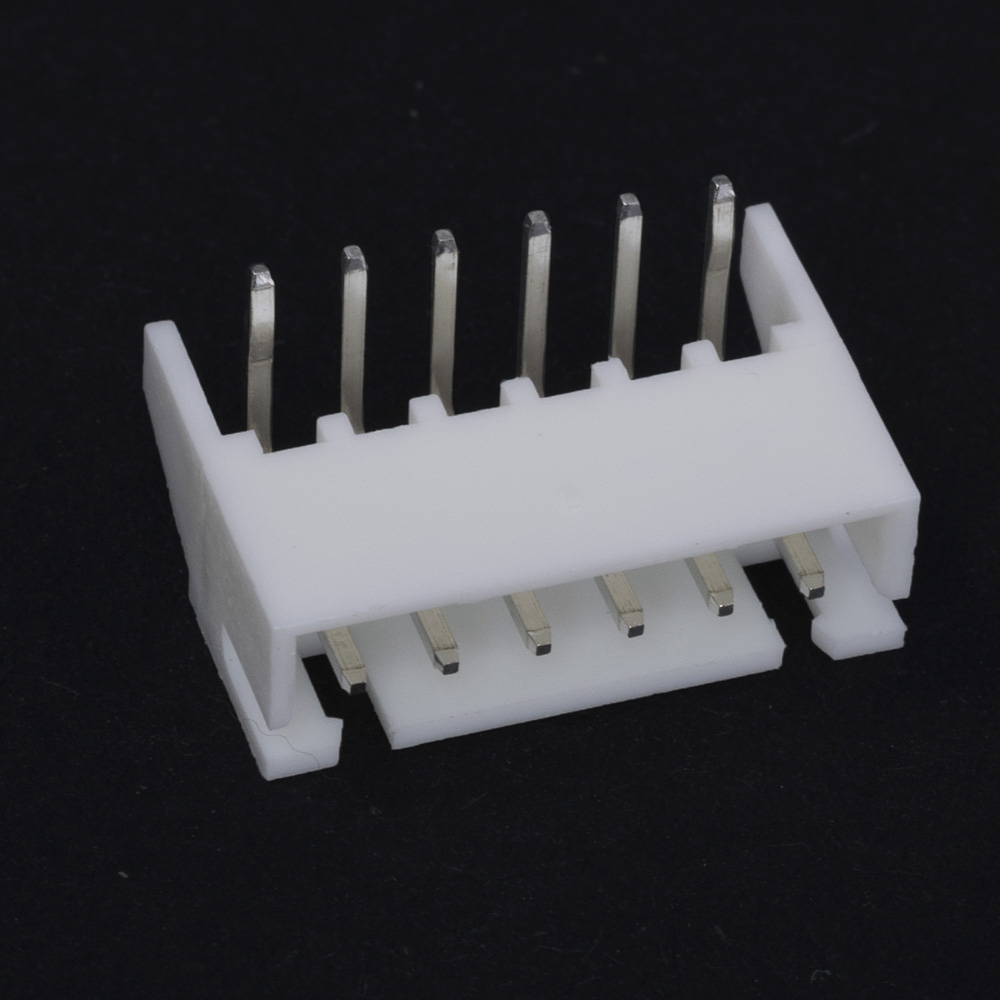

A2501WR-6P1 JOINT TECH

Category: Raster signal connectors 2,50mm, Description: Connector: wire-board; socket; male; data; A2501; 3A; 250V; PIN: 6, Type of connector: wire-board, Connector: socket, Kind of connector: male, Connector family: data, Manufacturer series: A2501, Current rating: 3A, Rated voltage: 0.25kV, Number of pins: 6, Contacts pitch: 2.5mm, Contact material: brass, Contact plating: tinned, Max. contact resistance:: 10mΩ, Flammability rating: UL94V-0, Body material: polyamide, Connector pinout layout: 1x6, Spatial orientation: angled 90°, Electrical mounting: THT, Operating temperature: -25...85°C.
