NXH300B100H4Q2F2S1G

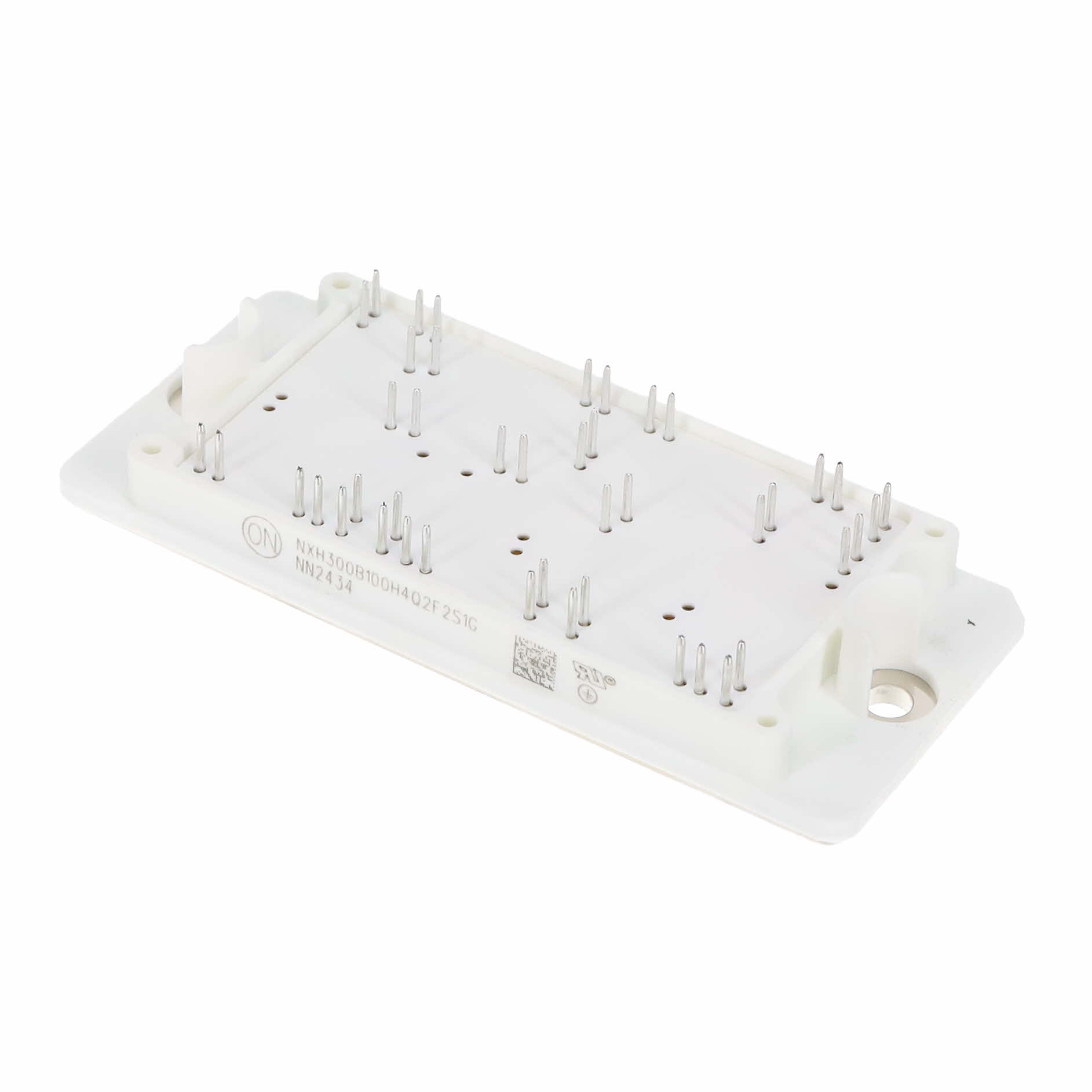

NXH300B100H4Q2F2S1G onsemi

nxh300b100h4q2f2-d.pdf Hersteller: onsemi
Description: PIM 1500V 250KW Q2BOOST
Packaging: Tray
Package / Case: Module
Mounting Type: Chassis Mount
Input: Standard
Configuration: Dual, Common Source
Operating Temperature: -40°C ~ 175°C (TJ)
Vce(on) (Max) @ Vge, Ic: 2.25V @ 15V, 100A
NTC Thermistor: Yes
Supplier Device Package: 53-PIM/Q2PACK (93x47)
IGBT Type: Trench Field Stop
Current - Collector (Ic) (Max): 73 A
Voltage - Collector Emitter Breakdown (Max): 1118 V
Power - Max: 194 W
Current - Collector Cutoff (Max): 800 µA
Input Capacitance (Cies) @ Vce: 6.323 nF @ 20 V
auf Bestellung 144 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+215.30 EUR
10+187.74 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details NXH300B100H4Q2F2S1G onsemi

Description: PIM 1500V 250KW Q2BOOST, Packaging: Tray, Package / Case: Module, Mounting Type: Chassis Mount, Input: Standard, Configuration: Dual, Common Source, Operating Temperature: -40°C ~ 175°C (TJ), Vce(on) (Max) @ Vge, Ic: 2.25V @ 15V, 100A, NTC Thermistor: Yes, Supplier Device Package: 53-PIM/Q2PACK (93x47), IGBT Type: Trench Field Stop, Current - Collector (Ic) (Max): 73 A, Voltage - Collector Emitter Breakdown (Max): 1118 V, Power - Max: 194 W, Current - Collector Cutoff (Max): 800 µA, Input Capacitance (Cies) @ Vce: 6.323 nF @ 20 V.

Weitere Produktangebote NXH300B100H4Q2F2S1G

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
NXH300B100H4Q2F2S1G Hersteller : onsemi nxh300b100h4q2f2-d.pdf IGBT Modules PIM 1500V 250KW Q2BOOST
Produkt ist nicht verfügbar
