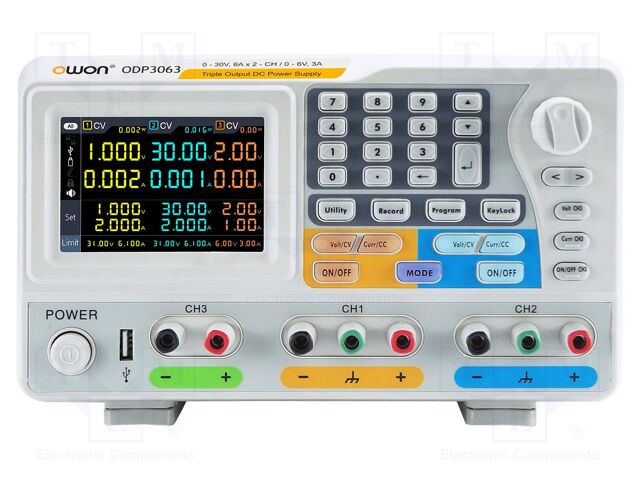

ODP3063 OWON
Hersteller: OWONCategory: Programmable Power Supplies
Description: Power supply: programmable laboratory; Ch: 3; 0÷30VDC; 0÷6A; 0÷6A
Output voltage: 0...30V DC
Number of channels: 3
Manufacturer series: ODP
Measuring instrument features: datalogging; function artificial simulated power output variation; low distortion level; operation mode:individual, parallel or serial; smart cooling control; three independent controllable channels
Connectors for the country: Europe
Standard equipment: fuse; mains cable; user's manual
Software: LabVIEW
Interface: LAN; RS232; USB
Kind of display used: LCD 4"
Kind of power supply: multi-channel; programmable; symmetrical
Type of laboratory power supply: programmable laboratory
Output current 3: 0...3A
Output current 2: 0...6A
Output current: 0...6A
Output voltage 3: 0...6V DC
Output voltage 2: 0...30V DC
Output current resolution: 1mA
Output voltage resolution: 1mV
Voltage (regulated) ripple and noise: ≤1mVrms; ≤4mVpp
Current stabilisation: ≤0.01%+ 3mA
Voltage stabilisation: ≤0.01%+ 3mV
Dimensions: 250x158x358mm
Supply voltage: 220V AC
Maximum power: 378W
Protection: anti-overvoltage OVP; over current OCP
Operating modes: constant current; constant voltage
Anzahl je Verpackung: 1 Stücke
auf Bestellung 22 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 498.83 EUR |
| 3+ | 467.85 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ODP3063 OWON
Category: Programmable Power Supplies, Description: Power supply: programmable laboratory; Ch: 3; 0÷30VDC; 0÷6A; 0÷6A, Output voltage: 0...30V DC, Number of channels: 3, Manufacturer series: ODP, Measuring instrument features: datalogging; function artificial simulated power output variation; low distortion level; operation mode:individual, parallel or serial; smart cooling control; three independent controllable channels, Connectors for the country: Europe, Standard equipment: fuse; mains cable; user's manual, Software: LabVIEW, Interface: LAN; RS232; USB, Kind of display used: LCD 4", Kind of power supply: multi-channel; programmable; symmetrical, Type of laboratory power supply: programmable laboratory, Output current 3: 0...3A, Output current 2: 0...6A, Output current: 0...6A, Output voltage 3: 0...6V DC, Output voltage 2: 0...30V DC, Output current resolution: 1mA, Output voltage resolution: 1mV, Voltage (regulated) ripple and noise: ≤1mVrms; ≤4mVpp, Current stabilisation: ≤0.01%+ 3mA, Voltage stabilisation: ≤0.01%+ 3mV, Dimensions: 250x158x358mm, Supply voltage: 220V AC, Maximum power: 378W, Protection: anti-overvoltage OVP; over current OCP, Operating modes: constant current; constant voltage, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote ODP3063 nach Preis ab 467.85 EUR bis 878.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
+8 |
ODP3063 | Hersteller : OWON |
Category: Programmable Power Supplies Description: Power supply: programmable laboratory; Ch: 3; 0÷30VDC; 0÷6A; 0÷6A Output voltage: 0...30V DC Number of channels: 3 Manufacturer series: ODP Measuring instrument features: datalogging; function artificial simulated power output variation; low distortion level; operation mode:individual, parallel or serial; smart cooling control; three independent controllable channels Connectors for the country: Europe Standard equipment: fuse; mains cable; user's manual Software: LabVIEW Interface: LAN; RS232; USB Kind of display used: LCD 4" Kind of power supply: multi-channel; programmable; symmetrical Type of laboratory power supply: programmable laboratory Output current 3: 0...3A Output current 2: 0...6A Output current: 0...6A Output voltage 3: 0...6V DC Output voltage 2: 0...30V DC Output current resolution: 1mA Output voltage resolution: 1mV Voltage (regulated) ripple and noise: ≤1mVrms; ≤4mVpp Current stabilisation: ≤0.01%+ 3mA Voltage stabilisation: ≤0.01%+ 3mV Dimensions: 250x158x358mm Supply voltage: 220V AC Maximum power: 378W Protection: anti-overvoltage OVP; over current OCP Operating modes: constant current; constant voltage |
auf Bestellung 22 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
 |
ODP3063 | Hersteller : Owon Technology Lilliput Electronics (USA) Inc |
Description: PWR SUP 0-30V 378W 0-6A Packaging: Box Power (Watts): 378W Features: Memory, Programmable, LAN, RS232, and USB Interface Display Type: LCD Size / Dimension: 14.094" L x 9.843" W x 6.220" H (358.00mm x 250.00mm x 158.00mm) Voltage - Output: 0 ~ 30V, 0 ~ 6V Current - Output: 0 ~ 3A, 0 ~ 6A Type: Bench (AC to DC) Voltage - Supply: 110/220VAC Part Status: Active Number of Outputs: 3 |
auf Bestellung 94 Stücke: Lieferzeit 10-14 Tag (e) |
|
