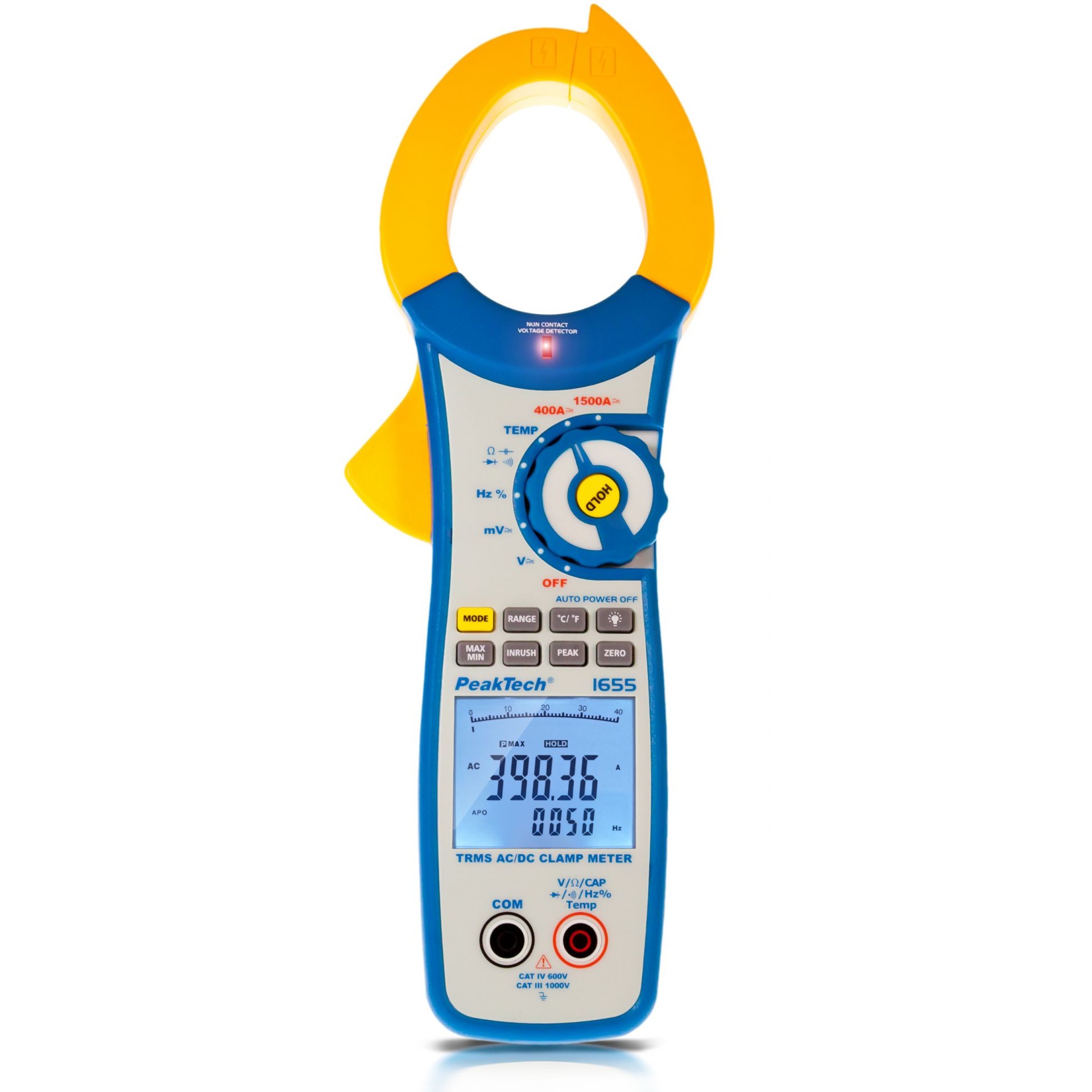

P 1655 PEAKTECH
Hersteller: PEAKTECHCategory: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 55mm; LCD
Type of meter: multifunction
Kind of meter: digital; pincers type
AC current measuring range: 400A; 1.5kA
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Measuring instrument features: automatic power-off; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX/REL function
AC voltage measuring range: 400mV; 4V; 40V; 400V; 750V
Dimensions: 100x295x45mm
Power supply: battery 6LR61 9V x1
Kind of display used: LCD
Battery/ rechargeable battery: battery 6LR61 9V x1
Standard equipment: case; K-type thermocouple; test leads; user's manual
Continuity test: acoustic indication; <50Ω
Sampling: 2x/s
Max. diameter of measured cable: 55mm
Temperature measuring range: -40...1000°C
True effective value measurement: True RMS
Bargraph: yes
Bandwidth for AC voltage measurements: 50...400Hz
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 40MΩ
Bandwidth for AC current measurements: 50...60Hz
DC current measuring range: 400A; 1.5kA
DC voltage measuring range: 400mV; 4V; 40V; 400V; 1kV
Frequency measuring range: 40...40MHz
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Diode test: 0.3mA @2.8V
Display parameters: 4,75 digit (40000)
Frequency measuring accuracy: ±(0.3%+2 digit)
Capacitance measuring accuracy: ±(3.5%+ 10 digit)
AC current measuring accuracy: ±(2.8% + 10 digit)
DC voltage measuring accuracy: ±(0.1% + 5 digit)
DC current measuring accuracy: ±(2% + 10 digit)
AC voltage measuring accuracy: ±(1% + 30 digit)
Resistance measuring accuracy: ±(1%+4 digit)
Temperature measurement accuracy: ±(1% + 2.5°C)
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Illumination: yes
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 153.41 EUR |
