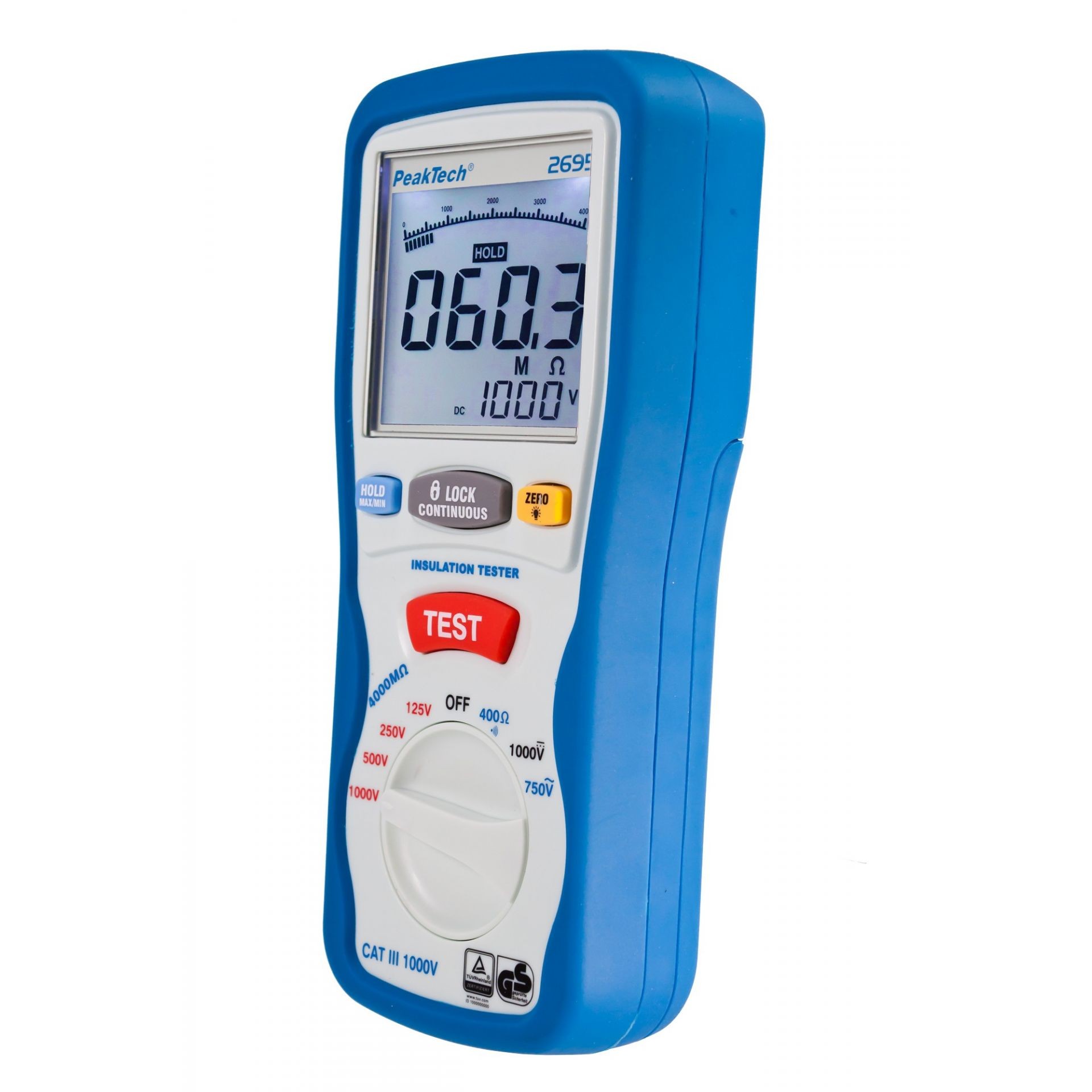

P 2695 PEAKTECH

Category: Insulation Resistance Meters, Description: Meter: insulation resistance; LCD; 3,5 digit (4000); VAC: 1÷750V, Type of meter: insulation resistance, Kind of display used: LCD, Power supply: battery LR6 AA 1,5V x6, Conform to the norm: CAT III 1000V; EN 61010, Standard equipment: case; test leads; user's manual, Measuring instrument features: automatic discharge of capacitance charge function; automatic power-off; HOLD function; insulation test stop function in case of detection of voltage over 30V; low battery indicator; MIN/MAX function, Battery/ rechargeable battery: battery LR6 AA 1,5V x6, Illumination: yes, Bargraph: yes, Short circuit current: 1mA, Resistance measuring range: 40Ω; 0.4kΩ, Dimensions (W x H x D): 200x90x50mm, Resistance measuring accuracy: ±(1.2%+3 digit), DC voltage measuring accuracy: ±(0.8% + 3 digit), AC voltage measuring range: 1...750V, DC voltage measuring range: 1...1000V, AC voltage measuring accuracy: ±(1.2% + 10 digit), Insulation resistance measuring accuracy: ±(2% + 10digit), Bandwidth for AC voltage measurements: 40...400Hz, Insulation resistance measuring ranges: 4MΩ; 40MΩ; 400MΩ; 4GΩ, Display parameters: 3,5 digit (4000), Measurement: AC voltage; continuity; DC voltage; insulation resistance; resistance, Continuity test: acoustic indication; .
