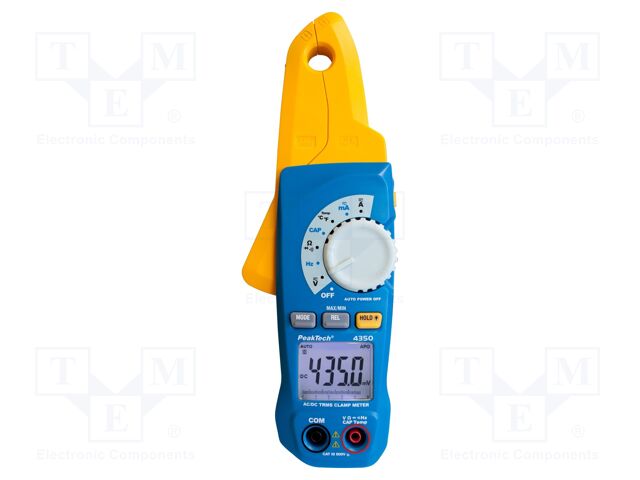

P 4350 PEAKTECH
Hersteller: PEAKTECH
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,AC/DC pincers type; Øcable: 12mm
Dimensions: 70x210x37mm
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Capacitance measuring accuracy: ±(3.5%+ 10 digit)
Measuring instrument features: automatic power-off; HOLD function; MIN/MAX/REL function
Power supply: battery LR03 AAA 1,5V x2
DC voltage measuring accuracy: ±(1.5% + 2 digit)
Standard equipment: case; K-type thermocouple; test leads; user's manual
Bandwidth for AC current measurements: 40...400Hz
Kind of meter: AC/DC pincers type; digital
DC current measuring accuracy: ±(2.5% + 30 digit)
Kind of display used: LCD
Temperature measuring range: -20...760°C
Continuity test: acoustic indication; <50Ω
True effective value measurement: True RMS
DC current measuring range: 5...80A
DC voltage measuring range: 500mV; 5V; 50V; 500V; 600V
AC current measuring accuracy: ±(2.5% + 25 digit)
Max. diameter of measured cable: 12mm
Sampling: 2x/s
Diode test: 1.5mA @3V
Frequency measuring range: 5...10MHz
AC voltage measuring range: 500mV; 5V; 50V; 500V; 600V
Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Temperature measurement accuracy: ±(2% + 3 digit)
Frequency measuring accuracy: ±(1.2%+3 digit)
Conform to the norm: CAT III 600V; EN 61010
Resistance measuring accuracy: ±(1.5%+2 digit)
Illumination: yes
AC voltage measuring accuracy: ±(2% + 4 digit)
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; leakage current; resistance; temperature
Display parameters: 3,8 digit (4999)
AC current measuring range: 5...80A
Capacitance measuring range: 50nF; 500nF; 5µF; 50µF; 500µF
