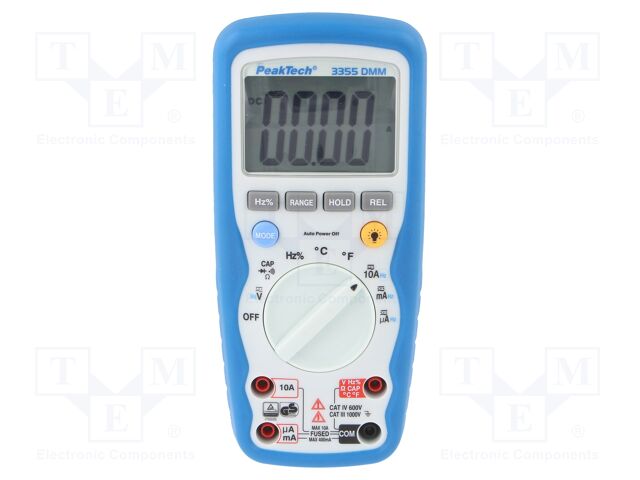

P 3355 PEAKTECH
Hersteller: PEAKTECHCategory: Portable digital multimeters
Description: Digital multimeter; LCD; 3,75 digit (3999); Temp: -20÷760°C; IP67
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 3,75 digit (3999)
DC voltage measuring range: 400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring accuracy: ±(1.2% + 3 digit)
DC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 10A
DC current measuring accuracy: ±(1% + 3 digit)
AC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 10A
AC current measuring accuracy: ±(1.5% + 5 digit)
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 200µF
Capacitance measuring accuracy: ±(3%+ 5 digit)
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 10MHz
Frequency measuring accuracy: ±(1.2%+3 digit)
Temperature measuring range: -20...760°C
Temperature measurement accuracy: ±(3% + 3°C)
Resistance measuring accuracy: ±(1%+2 digit)
Diode test: 0.3mA @1.5V
Continuity test: acoustic indication; <150Ω
Power supply: battery 6LR61 9V x1
Standard equipment: case; drop-like K-type probe; test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 85x185x55mm
Measuring instrument features: automatic power-off; HOLD function; MIN/MAX/AVG function
IP rating: IP67
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 85.33 EUR |
| 3+ | 84.18 EUR |
