PA4335.222NLT YAGEO
Hersteller: YAGEO
Category: Inductors

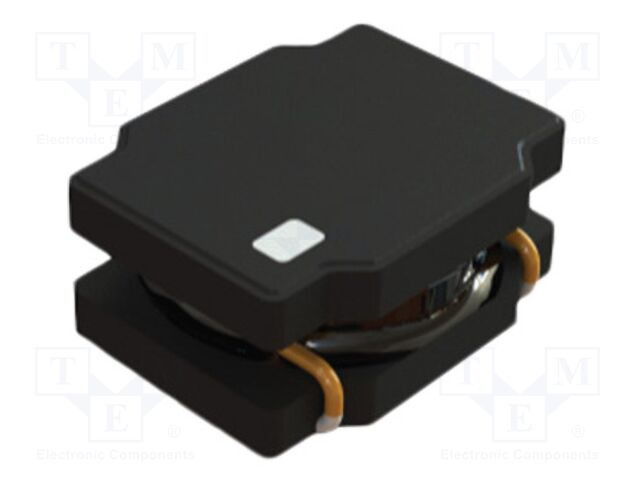

Description: Inductor: wire; SMD; 2.2uH; ±20%; 2.7x2.2x1.2mm; 2.6A; 120mΩ
Operating temperature: -40...125°C
Body dimensions: 2.7x2.2x1.2mm
Dimensions: 2.7x2.2x1.2mm
Test frequency: 1MHz
Type of inductor: wire
Saturation current: 2.6A
Tolerance: ±20%
Mounting: SMD
Resonant frequency: 32MHz
Inductance: 2.2µH
Max resistance: 0.12Ω
Produktrezensionen
Produktbewertung abgeben
Technische Details PA4335.222NLT YAGEO
Description: FIXED IND 2.2UH 1.9A 120 MOHM, Tolerance: ±20%, Packaging: Tape & Reel (TR), Package / Case: Nonstandard, Size / Dimension: 0.106" L x 0.087" W (2.70mm x 2.20mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Drum Core, Wirewound, Operating Temperature: -40°C ~ 125°C, DC Resistance (DCR): 120mOhm Max, Frequency - Self Resonant: 32MHz, Current - Saturation (Isat): 2.6A, Material - Core: Iron, Inductance Frequency - Test: 1 MHz, Height - Seated (Max): 0.047" (1.20mm), Part Status: Active, Inductance: 2.2 µH, Current Rating (Amps): 1.9 A.
Weitere Produktangebote PA4335.222NLT
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
|
PA4335.222NLT | Pulse Electronics |
Description: FIXED IND 2.2UH 1.9A 120 MOHMTolerance: ±20% Packaging: Tape & Reel (TR) Package / Case: Nonstandard Size / Dimension: 0.106" L x 0.087" W (2.70mm x 2.20mm) Mounting Type: Surface Mount Shielding: Shielded Type: Drum Core, Wirewound Operating Temperature: -40°C ~ 125°C DC Resistance (DCR): 120mOhm Max Frequency - Self Resonant: 32MHz Current - Saturation (Isat): 2.6A Material - Core: Iron Inductance Frequency - Test: 1 MHz Height - Seated (Max): 0.047" (1.20mm) Part Status: Active Inductance: 2.2 µH Current Rating (Amps): 1.9 A |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 2000 Stücke Im Einkaufswagen Stück im Wert von UAH |
|
PA4335.222NLT | Pulse Electronics |
Description: FIXED IND 2.2UH 1.9A 120 MOHMTolerance: ±20% Packaging: Cut Tape (CT) Package / Case: Nonstandard Size / Dimension: 0.106" L x 0.087" W (2.70mm x 2.20mm) Mounting Type: Surface Mount Shielding: Shielded Type: Drum Core, Wirewound Operating Temperature: -40°C ~ 125°C DC Resistance (DCR): 120mOhm Max Frequency - Self Resonant: 32MHz Current - Saturation (Isat): 2.6A Material - Core: Iron Inductance Frequency - Test: 1 MHz Height - Seated (Max): 0.047" (1.20mm) Part Status: Active Inductance: 2.2 µH Current Rating (Amps): 1.9 A |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| PA4335.222NLT |
![]() |
Hersteller: Pulse Electronics
Description: FIXED IND 2.2UH 1.9A 120 MOHM
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Nonstandard
Size / Dimension: 0.106" L x 0.087" W (2.70mm x 2.20mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 120mOhm Max
Frequency - Self Resonant: 32MHz
Current - Saturation (Isat): 2.6A
Material - Core: Iron
Inductance Frequency - Test: 1 MHz
Height - Seated (Max): 0.047" (1.20mm)
Part Status: Active
Inductance: 2.2 µH
Current Rating (Amps): 1.9 A
Description: FIXED IND 2.2UH 1.9A 120 MOHM
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Nonstandard
Size / Dimension: 0.106" L x 0.087" W (2.70mm x 2.20mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 120mOhm Max
Frequency - Self Resonant: 32MHz
Current - Saturation (Isat): 2.6A
Material - Core: Iron
Inductance Frequency - Test: 1 MHz
Height - Seated (Max): 0.047" (1.20mm)
Part Status: Active
Inductance: 2.2 µH
Current Rating (Amps): 1.9 A
Produkt ist nicht verfügbar
Mindestbestellmenge: 2000 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| PA4335.222NLT |
![]() |
Hersteller: Pulse Electronics
Description: FIXED IND 2.2UH 1.9A 120 MOHM
Tolerance: ±20%
Packaging: Cut Tape (CT)
Package / Case: Nonstandard
Size / Dimension: 0.106" L x 0.087" W (2.70mm x 2.20mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 120mOhm Max
Frequency - Self Resonant: 32MHz
Current - Saturation (Isat): 2.6A
Material - Core: Iron
Inductance Frequency - Test: 1 MHz
Height - Seated (Max): 0.047" (1.20mm)
Part Status: Active
Inductance: 2.2 µH
Current Rating (Amps): 1.9 A
Description: FIXED IND 2.2UH 1.9A 120 MOHM
Tolerance: ±20%
Packaging: Cut Tape (CT)
Package / Case: Nonstandard
Size / Dimension: 0.106" L x 0.087" W (2.70mm x 2.20mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 120mOhm Max
Frequency - Self Resonant: 32MHz
Current - Saturation (Isat): 2.6A
Material - Core: Iron
Inductance Frequency - Test: 1 MHz
Height - Seated (Max): 0.047" (1.20mm)
Part Status: Active
Inductance: 2.2 µH
Current Rating (Amps): 1.9 A
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
