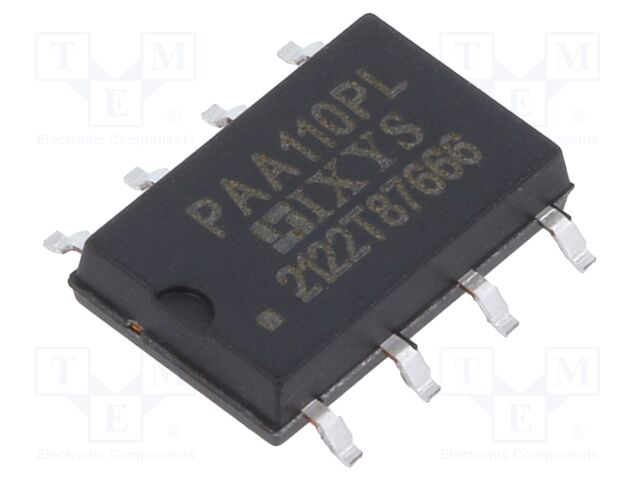

PAA110PL

PAA110PL IXYS

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA8B4949C269D20C7&compId=PAA110L.pdf?ci_sign=0eb0eb70862b50b325e34277b7cc4b8023f30085 Hersteller: IXYS
Category: One Phase Solid State Relays
Description: Relay: solid state; SPST-NO x2; Icntrl max: 50mA; 150mA; OptoMOS
Contacts configuration: SPST-NO x2
Manufacturer series: OptoMOS
Operating temperature: -40...85°C
Kind of output: MOSFET
Mounting: SMT
Type of relay: solid state
Turn-off time: 0.25ms
Turn-on time: 1ms
Body dimensions: 9.65x6.35x2.16mm
Control current max.: 50mA
Max. operating current: 150mA
On-state resistance: 22Ω
Switched voltage: max. 400V AC; max. 400V DC
Relay variant: 1-phase; current source
Insulation voltage: 3.75kV
Case: DIP8
Anzahl je Verpackung: 1 Stücke
auf Bestellung 98 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
10+7.66 EUR
12+6.25 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PAA110PL IXYS

Category: One Phase Solid State Relays, Description: Relay: solid state; SPST-NO x2; Icntrl max: 50mA; 150mA; OptoMOS, Contacts configuration: SPST-NO x2, Manufacturer series: OptoMOS, Operating temperature: -40...85°C, Kind of output: MOSFET, Mounting: SMT, Type of relay: solid state, Turn-off time: 0.25ms, Turn-on time: 1ms, Body dimensions: 9.65x6.35x2.16mm, Control current max.: 50mA, Max. operating current: 150mA, On-state resistance: 22Ω, Switched voltage: max. 400V AC; max. 400V DC, Relay variant: 1-phase; current source, Insulation voltage: 3.75kV, Case: DIP8, Anzahl je Verpackung: 1 Stücke.
