PBH2UEENAG1RWHT

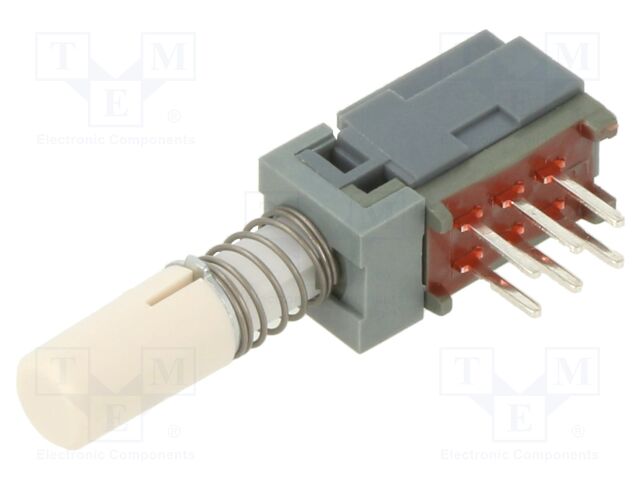

PBH2UEENAG1RWHT E-SWITCH

pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB895E2BAD03600C7&compId=XQ0023P.pdf?ci_sign=7f06e2fad414d49bc822a42c8ce1f058219bf843 pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948C9637F8F8A0D3&compId=PBH2UEENAG1RWHT.pdf?ci_sign=a42c453d7e98e962444530f33f1f737bdf30c8e4 Hersteller: E-SWITCH
Category: Standard Switches
Description: Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; ON-ON; Illumin: none
Type of switch: push-button
Contacts configuration: DPDT
Number of positions: 2
Stable positions number: 2
DC contacts rating @R: 0.1A / 30V DC
Mounting: THT
Illumination: none
Operating Force: 2.26N
Body dimensions: 7.3x7x14.7mm
Switching method: ON-ON
Terminal pitch: 2.5mm
Actuator colour: white
Leads: angled; for PCB
Max. contact resistance:: 100mΩ
Mechanical durability: 30000 cycles
Electrical life: 10000 cycles
Min. insulation resistance: 0.1GΩ
Button shape: prominent; round
Manufacturer series: PBH
Contact plating: silver plated
Flammability rating: UL94HB
Operating temperature: -20...70°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 507 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
72+1 EUR
92+0.78 EUR
100+0.72 EUR
1200+0.65 EUR
5040+0.63 EUR
Mindestbestellmenge: 72
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PBH2UEENAG1RWHT E-SWITCH

Category: Standard Switches, Description: Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; ON-ON; Illumin: none, Type of switch: push-button, Contacts configuration: DPDT, Number of positions: 2, Stable positions number: 2, DC contacts rating @R: 0.1A / 30V DC, Mounting: THT, Illumination: none, Operating Force: 2.26N, Body dimensions: 7.3x7x14.7mm, Switching method: ON-ON, Terminal pitch: 2.5mm, Actuator colour: white, Leads: angled; for PCB, Max. contact resistance:: 100mΩ, Mechanical durability: 30000 cycles, Electrical life: 10000 cycles, Min. insulation resistance: 0.1GΩ, Button shape: prominent; round, Manufacturer series: PBH, Contact plating: silver plated, Flammability rating: UL94HB, Operating temperature: -20...70°C, Anzahl je Verpackung: 1 Stücke.
