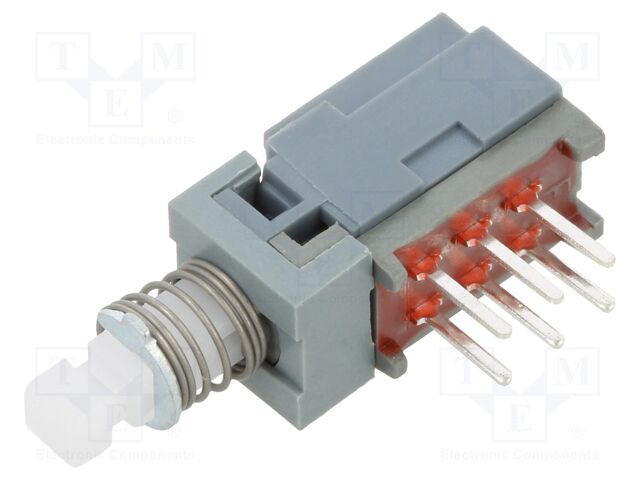

PBH2UEENAGX E-SWITCH
Hersteller: E-SWITCHCategory: Standard Switches
Description: Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; ON-ON; Illumin: none
Type of switch: push-button
Number of positions: 2
Stable positions number: 2
Contacts configuration: DPDT
Switching method: ON-ON
Electrical life: 10000 cycles
Operating temperature: -20...70°C
Body dimensions: 7.3x7x14.7mm
Leads: angled; for PCB
Flammability rating: UL94HB
DC contacts rating @R: 0.1A / 30V DC
Operating Force: 2.26N
Illumination: none
Button shape: prominent; square
Manufacturer series: PBH
Mounting: THT
Contact plating: silver plated
Mechanical durability: 30000 cycles
Max. contact resistance:: 100mΩ
Min. insulation resistance: 0.1GΩ
Terminal pitch: 2.5mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 672 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 34+ | 2.13 EUR |
| 42+ | 1.73 EUR |
| 45+ | 1.62 EUR |
| 47+ | 1.53 EUR |
| 50+ | 1.49 EUR |
| 100+ | 1.47 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PBH2UEENAGX E-SWITCH
Category: Standard Switches, Description: Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; ON-ON; Illumin: none, Type of switch: push-button, Number of positions: 2, Stable positions number: 2, Contacts configuration: DPDT, Switching method: ON-ON, Electrical life: 10000 cycles, Operating temperature: -20...70°C, Body dimensions: 7.3x7x14.7mm, Leads: angled; for PCB, Flammability rating: UL94HB, DC contacts rating @R: 0.1A / 30V DC, Operating Force: 2.26N, Illumination: none, Button shape: prominent; square, Manufacturer series: PBH, Mounting: THT, Contact plating: silver plated, Mechanical durability: 30000 cycles, Max. contact resistance:: 100mΩ, Min. insulation resistance: 0.1GΩ, Terminal pitch: 2.5mm, Anzahl je Verpackung: 1 Stücke.
