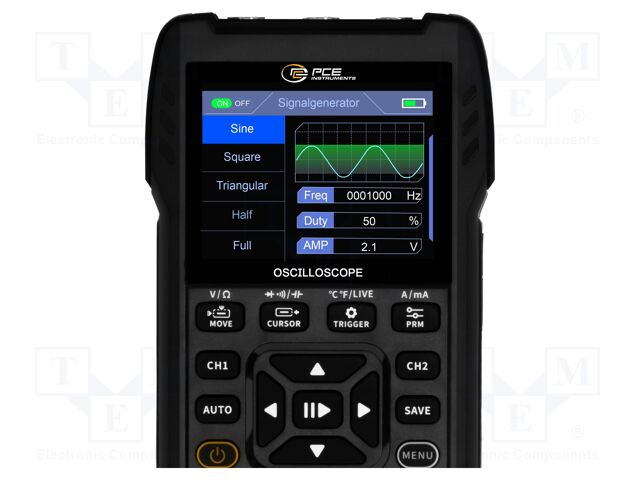

PCE-OC 50 PCE INSTRUMENTS
Hersteller: PCE INSTRUMENTS
Category: Portable Oscilloscopes, Scopemeters
Description: Portable oscilloscope; Band: 10MHz; LCD 2,8"; Ch: 2; 50Msps; 32kpts
Type of oscilloscope: portable oscilloscope
Band: 10MHz
Kind of display used: LCD 2,8"
Number of channels: 2
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance; temperature
Sampling: 50Msps
Memory record length: 32kpts
Display resolution: 320x240
DC voltage measuring range: 9.999V; 99.99V; 999.9V
DC voltage measuring accuracy: ±(0.5% + 3 digit)
DC current measuring range: 9999µA; 99.99mA; 999.9mA; 9.999A
DC current measuring accuracy: ±(1.2% + 3 digit)
AC voltage measuring range: 9.999V; 99.99V; 750V
AC voltage measuring accuracy: ±(1% + 3 digit)
AC current measuring accuracy: ±(1.5% + 3 digit)
AC current measuring range: 9999µA; 99.99mA; 999.9mA; 9.999A
Resistance measuring range: 999.9Ω; 9.999kΩ; 99.99kΩ; 999.9kΩ; 9.999MΩ; 99.99MΩ
Resistance measuring accuracy: ±(0.5%+3 digit)@(0Ω...9.999MΩ); ±(1.5%+3 digit)@(10MΩ...99.99MΩ)
Capacitance measuring range: 9.999nF; 99.99nF; 999.9nF; 9.999µF; 99.99µF; 999.9µF; 9.999mF; 99.99mF
Capacitance measuring accuracy: ±(2%+5 digit) @ 0F...999.9µF; ±(2%+20 digit) @ 1mF...99.99mF
Interface: BNC; USB C
Power supply: rechargeable battery Li-Ion polymer 3,7V x1
Dimensions: 170x35x90mm
Measuring instrument features: automatic power-off; contactless voltage detector; memory built-in
Standard equipment: accessories kit; pointed electrode; test leads set; test leads with crocodile clips; USB cable
Battery/ rechargeable battery: rechargeable battery Li-Ion polymer 3,7V x1
Input impedance: 10MΩ
Memory capacity: 8MB
Trigger modes: automatic; normal; single
Conform to the norm: CAT III 1000V; CAT IV 600V
Test: circuit continuity; diodes
Additional functions: function generator; multimeter
IP rating: IP20
Temperature measuring range: -55...1300°C
Signal frequency: 1Hz...2MHz
Temperature measurement accuracy: ±(2.5% + 5 digit)
Nominal life: 6h
Storage temperature: max 50°C
Operating temperature: max. 50°C
