Produkte > SUNON > PF40281B3-1000U-A9H

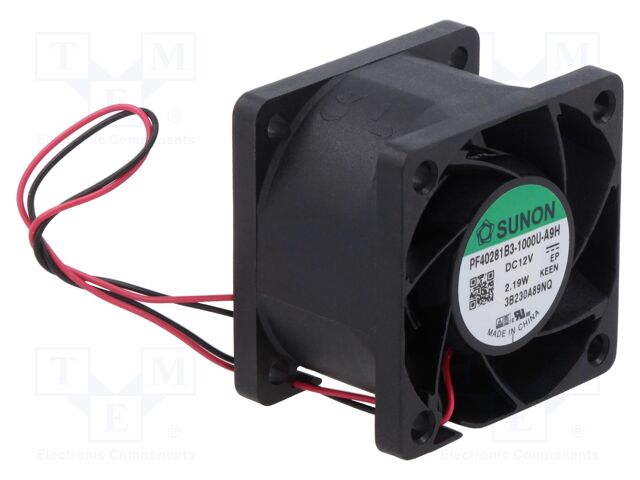

PF40281B3-1000U-A9H SUNON

PF40281B3-A9H.pdf Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x28mm; 26.16m3/h; 43.9dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.2V
Fan dimensions: 40x40x28mm
Power consumption: 2.19W
Current rating: 0.145A
Fan efficiency: 26.16m3/h
Noise level: 43.9dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 11000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.15m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 19.81mm H2O
Anzahl je Verpackung: 1 Stücke
auf Bestellung 146 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
5+15.02 EUR
10+ 13.58 EUR
50+ 12.73 EUR
Mindestbestellmenge: 5
Produktrezensionen
Produktbewertung abgeben

Technische Details PF40281B3-1000U-A9H SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x28mm; 26.16m3/h; 43.9dBA; ball bearing, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.2V, Fan dimensions: 40x40x28mm, Power consumption: 2.19W, Current rating: 0.145A, Fan efficiency: 26.16m3/h, Noise level: 43.9dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 11000rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.15m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 19.81mm H2O, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote PF40281B3-1000U-A9H nach Preis ab 12.73 EUR bis 34.14 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
PF40281B3-1000U-A9H Hersteller : SUNON PF40281B3-A9H.pdf Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x28mm; 26.16m3/h; 43.9dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6...13.2V
Fan dimensions: 40x40x28mm
Power consumption: 2.19W
Current rating: 0.145A
Fan efficiency: 26.16m3/h
Noise level: 43.9dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 11000rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.15m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 19.81mm H2O
auf Bestellung 146 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
5+15.02 EUR
10+ 13.58 EUR
50+ 12.73 EUR
Mindestbestellmenge: 5
PF40281B3-1000U-A9H Hersteller : Sunon Fans SUNON%20DC%20Brushless%20Fan%20&%20Blower(255-E).pdf Description: FAN AXIAL 40X28MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 11000 RPM
Air Flow: 15.4 CFM (0.431m³/min)
Width: 28.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 43.9dB(A)
Static Pressure: 0.780 in H2O (194.3 Pa)
Part Status: Active
Power (Watts): 1.74 W
auf Bestellung 2464 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl Preis ohne MwSt
1+34.14 EUR
10+ 32.59 EUR
25+ 30.65 EUR
50+ 29.49 EUR
150+ 27.16 EUR
300+ 25.41 EUR
600+ 25.02 EUR
PF40281B3-1000U-A9H PF40281B3-1000U-A9H Hersteller : Sunon SUNON_DC_Brushless_Fan__26_Blower_255_E_-2944075.pdf DC Fans DC Axial Fan, 40x40x28mm, 12VDC, Ball, Lead Wires, Auto Restart, Low Vibration
Produkt ist nicht verfügbar
