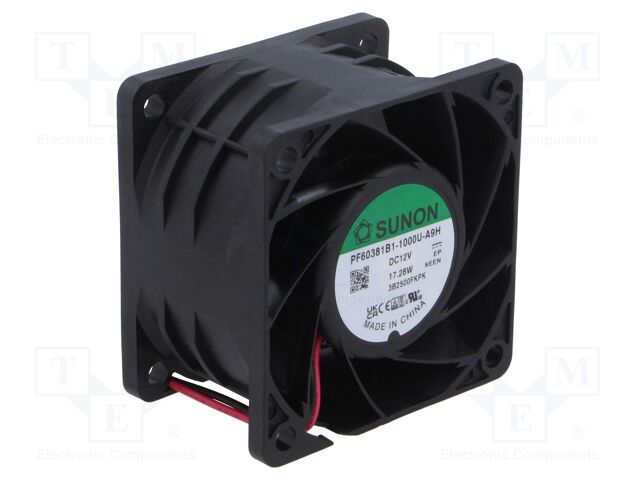

PF60381B1-1000U-A9H Sunon Fans
Hersteller: Sunon Fans
Description: FAN 60X38MM 12VDC
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Ball
RPM: 13200 RPM
Air Flow: 60.8 CFM (1.70m³/min)
Width: 38.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 61.2dB(A)
Static Pressure: 2.300 in H2O (572.9 Pa)
Power (Watts): 14.4 W
| Anzahl | Privatkunde |
|---|---|
| 1+ | 58.06 EUR |
| 10+ | 46.64 EUR |
| 25+ | 42.45 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details PF60381B1-1000U-A9H Sunon Fans
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x38mm; 102m3/h; 61.2dBA; ball; 13200rpm, Type of fan: DC, Kind of fan: axial, Fan dimensions: 60x60x38mm, Power consumption: 14.4W, Current rating: 1.2...1.44A, Fan efficiency: 102m3/h, Noise level: 61.2dBA, Kind of Bearing: ball, Rotational rate/speed: 13200rpm, Min. insulation resistance: 10MΩ, Leads: leads x2, Operating temperature: -10...70°C, Fan motor: brushless DC, Insulation class: A, Supply voltage: 12V DC, Flammability rating: UL94V-0, Enclosure material: thermoplastic, Impeller material: thermoplastic, Additional functions: autorestart, Operating voltage: 10.2...13.2V DC.
Weitere Produktangebote PF60381B1-1000U-A9H
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
PF60381B1-1000U-A9H | SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x38mm; 102m3/h; 61.2dBA; ball; 13200rpm Type of fan: DC Kind of fan: axial Fan dimensions: 60x60x38mm Power consumption: 14.4W Current rating: 1.2...1.44A Fan efficiency: 102m3/h Noise level: 61.2dBA Kind of Bearing: ball Rotational rate/speed: 13200rpm Min. insulation resistance: 10MΩ Leads: leads x2 Operating temperature: -10...70°C Fan motor: brushless DC Insulation class: A Supply voltage: 12V DC Flammability rating: UL94V-0 Enclosure material: thermoplastic Impeller material: thermoplastic Additional functions: autorestart Operating voltage: 10.2...13.2V DC |
auf Bestellung 60 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| PF60381B1-1000U-A9H |
|
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x38mm; 102m3/h; 61.2dBA; ball; 13200rpm
Type of fan: DC
Kind of fan: axial
Fan dimensions: 60x60x38mm
Power consumption: 14.4W
Current rating: 1.2...1.44A
Fan efficiency: 102m3/h
Noise level: 61.2dBA
Kind of Bearing: ball
Rotational rate/speed: 13200rpm
Min. insulation resistance: 10MΩ
Leads: leads x2
Operating temperature: -10...70°C
Fan motor: brushless DC
Insulation class: A
Supply voltage: 12V DC
Flammability rating: UL94V-0
Enclosure material: thermoplastic
Impeller material: thermoplastic
Additional functions: autorestart
Operating voltage: 10.2...13.2V DC
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x38mm; 102m3/h; 61.2dBA; ball; 13200rpm
Type of fan: DC
Kind of fan: axial
Fan dimensions: 60x60x38mm
Power consumption: 14.4W
Current rating: 1.2...1.44A
Fan efficiency: 102m3/h
Noise level: 61.2dBA
Kind of Bearing: ball
Rotational rate/speed: 13200rpm
Min. insulation resistance: 10MΩ
Leads: leads x2
Operating temperature: -10...70°C
Fan motor: brushless DC
Insulation class: A
Supply voltage: 12V DC
Flammability rating: UL94V-0
Enclosure material: thermoplastic
Impeller material: thermoplastic
Additional functions: autorestart
Operating voltage: 10.2...13.2V DC
auf Bestellung 60 Stücke:
Lieferzeit 14-21 Tag (e)
