Produkte > SUNON FANS > PF60381BX-1000U-A9H

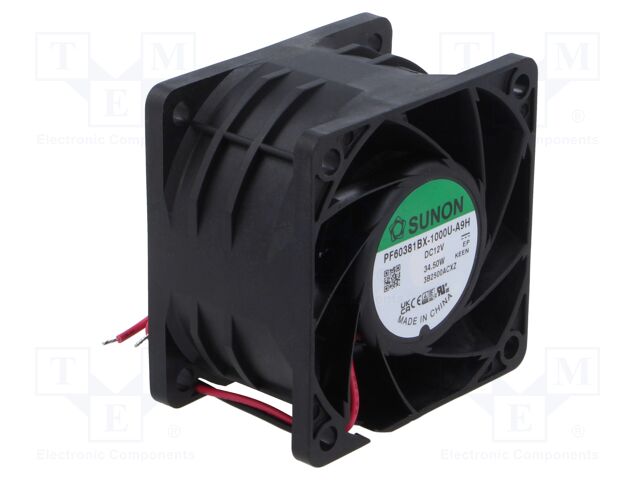

PF60381BX-1000U-A9H Sunon Fans


PF60381BX-1000U-A9H-D06104490G-01-2_REF.pdf
Hersteller: Sunon Fans
Description: FAN 60X38MM 12VDC
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Ball
RPM: 16500 RPM
Air Flow: 75.2 CFM (2.11m³/min)
Width: 38.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 67.0dB(A)
Static Pressure: 3.570 in H2O (889.2 Pa)
Power (Watts): 30 W
auf Bestellung 130 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
1+63.88 EUR
10+51.3 EUR
25+50.23 EUR
100+47.39 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit: 10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben

Technische Details PF60381BX-1000U-A9H Sunon Fans

Category: DC12V Fans, Description: Fan: DC; 60x60x38mm; axial; 12VDC; 127.8m3/h; 73.1dBA; ball; 24AWG, Kind of fan: axial, Wire size: 24AWG, Insulation class: A, Supply voltage: 12V DC, Flammability rating: UL94V-0, Current rating: 2.5...2.87A, Fan efficiency: 127.8m3/h, Operating temperature: -10...70°C, Rotational rate/speed: 16500rpm, Enclosure material: thermoplastic, Kind of Bearing: ball, Fan motor: brushless DC, Leads: leads x2, Fan dimensions: 60x60x38mm, Min. insulation resistance: 10MΩ, Power consumption: 30...34.5W, Impeller material: thermoplastic, Type of fan: DC, Noise level: 73.1dBA, Additional functions: autorestart, Operating voltage: 7.7...13.2V DC.
