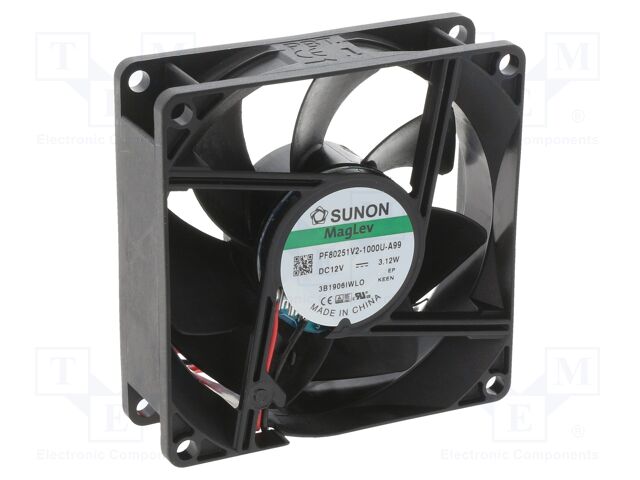

PF80251V2-1000U-A99 SUNON
Hersteller: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Fan dimensions: 80x80x25mm
Power consumption: 3.12W
Current rating: 0.24A
Fan efficiency: 96.85m3/h
Noise level: 43.1dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Lead length: 0.315m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 8.88mm H2O
Wire size: 24AWG
Fan motor: brushless DC
Operating voltage: 6...13.8V DC
Additional functions: autorestart
Anzahl je Verpackung: 1 Stücke
auf Bestellung 40 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 8+ | 10.05 EUR |
| 10+ | 9.51 EUR |
| 50+ | 8.69 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PF80251V2-1000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Fan dimensions: 80x80x25mm, Power consumption: 3.12W, Current rating: 0.24A, Fan efficiency: 96.85m3/h, Noise level: 43.1dBA, Kind of Bearing: Vapo, Rotational rate/speed: 4500rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Lead length: 0.315m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 8.88mm H2O, Wire size: 24AWG, Fan motor: brushless DC, Operating voltage: 6...13.8V DC, Additional functions: autorestart, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PF80251V2-1000U-A99 nach Preis ab 9.51 EUR bis 13.69 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PF80251V2-1000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Fan dimensions: 80x80x25mm Power consumption: 3.12W Current rating: 0.24A Fan efficiency: 96.85m3/h Noise level: 43.1dBA Kind of Bearing: Vapo Rotational rate/speed: 4500rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x2 Lead length: 0.315m Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 8.88mm H2O Wire size: 24AWG Fan motor: brushless DC Operating voltage: 6...13.8V DC Additional functions: autorestart |
auf Bestellung 40 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
| PF80251V2-1000U-A99 | Hersteller : Sunon |
PF80251V2-1000U-A99 |
auf Bestellung 467 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
|
PF80251V2-1000U-A99 Produktcode: 188911
zu Favoriten hinzufügen
Lieblingsprodukt
|
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör |
Produkt ist nicht verfügbar
|
|||||||||||
 |
PF80251V2-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 80X25MM 12VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Vapo-Bearing™ RPM: 4500 RPM Air Flow: 57.0 CFM (1.60m³/min) Width: 25.00mm Weight: 0.201 lb (91.17 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 43.1dB(A) Static Pressure: 0.350 in H2O (87.2 Pa) Power (Watts): 2.88 W |
Produkt ist nicht verfügbar |
|||||||||
 |
PF80251V2-1000U-A99 | Hersteller : Sunon |
DC Fans Axial Fan, 80x80x25mm, 12VDC, 57CFM, 0.35"H2O, Vapo, Auto Restart, High Airflow |
Produkt ist nicht verfügbar |
