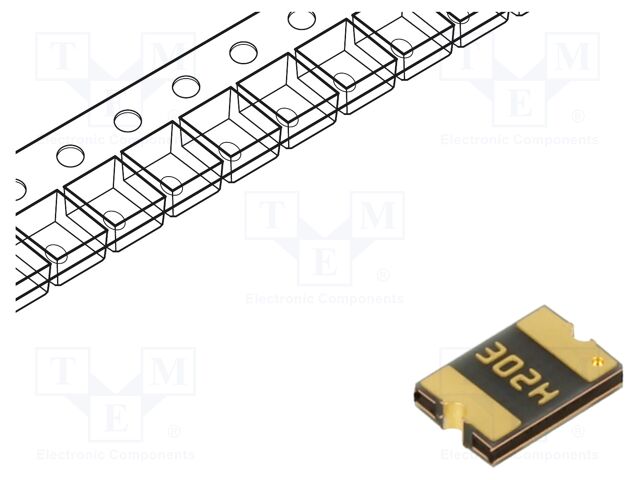

PFMF.030.2 SCHURTER
Hersteller: SCHURTER
Category: SMD Polymer Fuses
Description: Fuse: PTC polymer; 300mA; 30VDC; 4.6x3.2mm; PCB,SMT; PFMF; 2.7mm
Type of fuse: PTC polymer
Current rating: 0.3A
Switched current: 260mA
Max. voltage: 30V DC
Min. resistance: 3Ω
Max resistance: 300mΩ
Case - inch: 1812
Operating temperature: -40...85°C
Terminal pitch: 2.7mm
Fuse size: 4.6x3.2mm
Rated voltage: 30V DC
Manufacturer series: PFMF
Fuses application: PC motherboard
Kind of package: reel; tape
Kind of fuse: miniature
Mounting: PCB; SMT
| Anzahl | Preis |
|---|---|
| 179+ | 0.4 EUR |
| 199+ | 0.36 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PFMF.030.2 SCHURTER
Description: PTC RESET FUSE 30V 300MA 1812, Packaging: Tape & Reel (TR), Package / Case: 1812 (4532 Metric), Concave, Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm), Mounting Type: Surface Mount, Type: Polymeric, Operating Temperature: -40°C ~ 85°C, Current - Hold (Ih) (Max): 300 mA, Current - Trip (It): 600 mA, Voltage - Max: 30V, Thickness (Max): 0.043" (1.10mm), Current - Max: 10 A, Time to Trip: 100 ms, Resistance - Initial (Ri) (Min): 300 mOhms, Resistance - Post Trip (R1) (Max): 3 Ohms.
Weitere Produktangebote PFMF.030.2 nach Preis ab 0.4 EUR bis 1.06 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PFMF.030.2 | SCHURTER Inc. |
Description: PTC RESET FUSE 30V 300MA 1812 Packaging: Tape & Reel (TR) Package / Case: 1812 (4532 Metric), Concave Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm) Mounting Type: Surface Mount Type: Polymeric Operating Temperature: -40°C ~ 85°C Current - Hold (Ih) (Max): 300 mA Current - Trip (It): 600 mA Voltage - Max: 30V Thickness (Max): 0.043" (1.10mm) Current - Max: 10 A Time to Trip: 100 ms Resistance - Initial (Ri) (Min): 300 mOhms Resistance - Post Trip (R1) (Max): 3 Ohms |
auf Bestellung 6000 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
PFMF.030.2 | Schurter |
Resettable Fuses - PPTC PFMF PTC FUSE SMT 300 mA (1812) |
auf Bestellung 1403 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
PFMF.030.2 | SCHURTER Inc. |
Description: PTC RESET FUSE 30V 300MA 1812 Packaging: Cut Tape (CT) Package / Case: 1812 (4532 Metric), Concave Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm) Mounting Type: Surface Mount Type: Polymeric Operating Temperature: -40°C ~ 85°C Current - Hold (Ih) (Max): 300 mA Current - Trip (It): 600 mA Voltage - Max: 30V Thickness (Max): 0.043" (1.10mm) Current - Max: 10 A Time to Trip: 100 ms Resistance - Initial (Ri) (Min): 300 mOhms Resistance - Post Trip (R1) (Max): 3 Ohms |
auf Bestellung 7328 Stücke: Lieferzeit 10-14 Tag (e) |
|
| PFMF.030.2 |
|
Hersteller: SCHURTER Inc.
Description: PTC RESET FUSE 30V 300MA 1812
Packaging: Tape & Reel (TR)
Package / Case: 1812 (4532 Metric), Concave
Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 300 mA
Current - Trip (It): 600 mA
Voltage - Max: 30V
Thickness (Max): 0.043" (1.10mm)
Current - Max: 10 A
Time to Trip: 100 ms
Resistance - Initial (Ri) (Min): 300 mOhms
Resistance - Post Trip (R1) (Max): 3 Ohms
Description: PTC RESET FUSE 30V 300MA 1812
Packaging: Tape & Reel (TR)
Package / Case: 1812 (4532 Metric), Concave
Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 300 mA
Current - Trip (It): 600 mA
Voltage - Max: 30V
Thickness (Max): 0.043" (1.10mm)
Current - Max: 10 A
Time to Trip: 100 ms
Resistance - Initial (Ri) (Min): 300 mOhms
Resistance - Post Trip (R1) (Max): 3 Ohms
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 1500+ | 0.45 EUR |
| 3000+ | 0.42 EUR |
| 4500+ | 0.4 EUR |
| PFMF.030.2 |
|
Hersteller: Schurter
Resettable Fuses - PPTC PFMF PTC FUSE SMT 300 mA (1812)
Resettable Fuses - PPTC PFMF PTC FUSE SMT 300 mA (1812)
auf Bestellung 1403 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 4+ | 0.76 EUR |
| 10+ | 0.72 EUR |
| 50+ | 0.65 EUR |
| 100+ | 0.61 EUR |
| 250+ | 0.56 EUR |
| 500+ | 0.52 EUR |
| 1500+ | 0.45 EUR |
| PFMF.030.2 |
|
Hersteller: SCHURTER Inc.
Description: PTC RESET FUSE 30V 300MA 1812
Packaging: Cut Tape (CT)
Package / Case: 1812 (4532 Metric), Concave
Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 300 mA
Current - Trip (It): 600 mA
Voltage - Max: 30V
Thickness (Max): 0.043" (1.10mm)
Current - Max: 10 A
Time to Trip: 100 ms
Resistance - Initial (Ri) (Min): 300 mOhms
Resistance - Post Trip (R1) (Max): 3 Ohms
Description: PTC RESET FUSE 30V 300MA 1812
Packaging: Cut Tape (CT)
Package / Case: 1812 (4532 Metric), Concave
Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 300 mA
Current - Trip (It): 600 mA
Voltage - Max: 30V
Thickness (Max): 0.043" (1.10mm)
Current - Max: 10 A
Time to Trip: 100 ms
Resistance - Initial (Ri) (Min): 300 mOhms
Resistance - Post Trip (R1) (Max): 3 Ohms
auf Bestellung 7328 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 17+ | 1.06 EUR |
| 21+ | 0.87 EUR |
| 22+ | 0.81 EUR |
| 50+ | 0.67 EUR |
| 100+ | 0.62 EUR |
| 250+ | 0.56 EUR |
| 500+ | 0.51 EUR |
