Produkte > SCHURTER INC. > PFNF.012.2

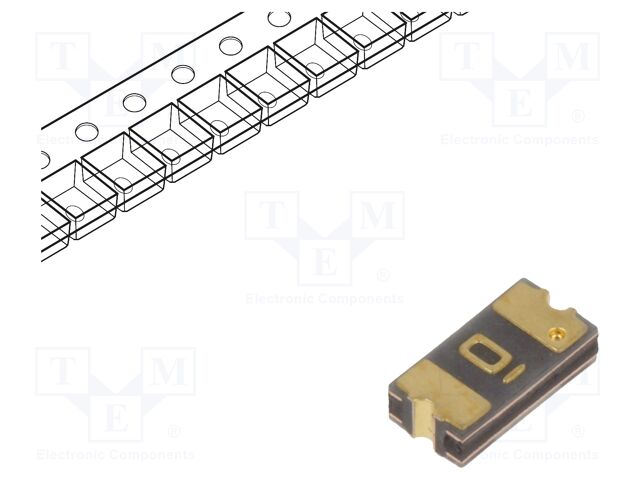

PFNF.012.2

PFNF.012.2 SCHURTER Inc.

typ_PFNF.pdf
Hersteller: SCHURTER Inc.
Description: PTC RESET FUSE 30V 120MA 1206
Packaging: Tape & Reel (TR)
Package / Case: 1206 (3216 Metric), Concave
Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 120 mA
Current - Trip (It): 290 mA
Voltage - Max: 30V
Thickness (Max): 0.043" (1.10mm)
Part Status: Active
Current - Max: 10 A
Time to Trip: 200 ms
Resistance - Initial (Ri) (Min): 1.35 Ohms
Resistance - Post Trip (R1) (Max): 8.5 Ohms
auf Bestellung 18000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3000+0.68 EUR
6000+0.62 EUR
9000+0.6 EUR
15000+0.56 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit: 10-14 Tag (e)
Mindestmenge: 3000 Stücke
Produktrezensionen
Produktbewertung abgeben

Technische Details PFNF.012.2 SCHURTER Inc.

Category: SMD Polymer Fuses, Description: Fuse: PTC polymer; 3.2x1.6mm; SMD; 120mA; Imax: 10A; 30VDC; PFNF; 2mm, Type of fuse: PTC polymer, Fuse size: 3.2x1.6mm, Kind of fuse: miniature, Mounting: SMD, Current rating: 0.12A, Maximum current: 10A, Max surge current: 10A, Switched current: 290mA, Rated voltage: 30V DC, Max. voltage: 30V DC, Manufacturer series: PFNF, Power: 0.4W, Min. resistance: 8.5Ω, Max resistance: 1.35Ω, Terminal pitch: 2mm, Case - inch: 1206, Case - mm: 3216, Fuses application: game console; PC motherboard, B dimension: 700µm...1.1mm, Kind of package: reel; tape, Contact plating: silver nickel alloy, Operating temperature: -40...85°C, Conform to the norm: CE; CSA; UL.

Weitere Produktangebote PFNF.012.2 nach Preis ab 0.71 EUR bis 1.71 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit Privatkunde
PFNF.012.2 PFNF.012.2 Schurter typ_PFNF.pdf Resettable Fuses - PPTC PFNF PTC FUSE SMT 120 mA (1206)
auf Bestellung 5705 Stücke:
Lieferzeit 10-14 Tag (e)
3+1.44 EUR
10+1.32 EUR
50+0.93 EUR
100+0.89 EUR
250+0.83 EUR
500+0.76 EUR
1000+0.71 EUR
Mindestbestellmenge: 3 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PFNF.012.2 PFNF.012.2 SCHURTER Inc. typ_PFNF.pdf Description: PTC RESET FUSE 30V 120MA 1206
Packaging: Cut Tape (CT)
Package / Case: 1206 (3216 Metric), Concave
Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 120 mA
Current - Trip (It): 290 mA
Voltage - Max: 30V
Thickness (Max): 0.043" (1.10mm)
Part Status: Active
Current - Max: 10 A
Time to Trip: 200 ms
Resistance - Initial (Ri) (Min): 1.35 Ohms
Resistance - Post Trip (R1) (Max): 8.5 Ohms
auf Bestellung 19500 Stücke:
Lieferzeit 10-14 Tag (e)
13+1.71 EUR
15+1.43 EUR
16+1.32 EUR
50+1.09 EUR
100+1.01 EUR
250+0.9 EUR
500+0.83 EUR
1000+0.77 EUR
Mindestbestellmenge: 13 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PFNF.012.2 PFNF.012.2 SCHURTER typ_PFNF.pdf Category: SMD Polymer Fuses
Description: Fuse: PTC polymer; 3.2x1.6mm; SMD; 120mA; Imax: 10A; 30VDC; PFNF; 2mm
Type of fuse: PTC polymer
Fuse size: 3.2x1.6mm
Kind of fuse: miniature
Mounting: SMD
Current rating: 0.12A
Maximum current: 10A
Max surge current: 10A
Switched current: 290mA
Rated voltage: 30V DC
Max. voltage: 30V DC
Manufacturer series: PFNF
Power: 0.4W
Min. resistance: 8.5Ω
Max resistance: 1.35Ω
Terminal pitch: 2mm
Case - inch: 1206
Case - mm: 3216
Fuses application: game console; PC motherboard
B dimension: 700µm...1.1mm
Kind of package: reel; tape
Contact plating: silver nickel alloy
Operating temperature: -40...85°C
Conform to the norm: CE; CSA; UL
auf Bestellung 744 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PFNF.012.2 typ_PFNF.pdf
PFNF.012.2
Hersteller: Schurter
Resettable Fuses - PPTC PFNF PTC FUSE SMT 120 mA (1206)
auf Bestellung 5705 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3+1.44 EUR
10+1.32 EUR
50+0.93 EUR
100+0.89 EUR
250+0.83 EUR
500+0.76 EUR
1000+0.71 EUR
Mindestbestellmenge: 3 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PFNF.012.2 typ_PFNF.pdf
PFNF.012.2
Hersteller: SCHURTER Inc.
Description: PTC RESET FUSE 30V 120MA 1206
Packaging: Cut Tape (CT)
Package / Case: 1206 (3216 Metric), Concave
Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 120 mA
Current - Trip (It): 290 mA
Voltage - Max: 30V
Thickness (Max): 0.043" (1.10mm)
Part Status: Active
Current - Max: 10 A
Time to Trip: 200 ms
Resistance - Initial (Ri) (Min): 1.35 Ohms
Resistance - Post Trip (R1) (Max): 8.5 Ohms
auf Bestellung 19500 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
13+1.71 EUR
15+1.43 EUR
16+1.32 EUR
50+1.09 EUR
100+1.01 EUR
250+0.9 EUR
500+0.83 EUR
1000+0.77 EUR
Mindestbestellmenge: 13 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
PFNF.012.2 typ_PFNF.pdf
PFNF.012.2
Hersteller: SCHURTER
Category: SMD Polymer Fuses
Description: Fuse: PTC polymer; 3.2x1.6mm; SMD; 120mA; Imax: 10A; 30VDC; PFNF; 2mm
Type of fuse: PTC polymer
Fuse size: 3.2x1.6mm
Kind of fuse: miniature
Mounting: SMD
Current rating: 0.12A
Maximum current: 10A
Max surge current: 10A
Switched current: 290mA
Rated voltage: 30V DC
Max. voltage: 30V DC
Manufacturer series: PFNF
Power: 0.4W
Min. resistance: 8.5Ω
Max resistance: 1.35Ω
Terminal pitch: 2mm
Case - inch: 1206
Case - mm: 3216
Fuses application: game console; PC motherboard
B dimension: 700µm...1.1mm
Kind of package: reel; tape
Contact plating: silver nickel alloy
Operating temperature: -40...85°C
Conform to the norm: CE; CSA; UL
auf Bestellung 744 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
