PM100
  • PM100
  • PM100

PM100 TEMPO

pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB79C92AF817940D2&compId=TC-PM100_Datasheet.pdf?ci_sign=38f95220f45c959e23146984817a91146067313b Hersteller: TEMPO
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 6V,60V,450V; 0÷40°C
Operating temperature: 0...40°C
Battery/ rechargeable battery: none
Measuring instrument features: permanently connected test leads
Standard equipment: soft case
Storage temperature: -20...60°C
Capacitance measuring range: 100nF; 1µF; 10µF; 100µF
DC voltage measuring accuracy: ±(0.5% + 3mV) @6V; ±(1% + 50mV) @60V; ±(1.2% + 500mV) @450V
AC voltage measuring accuracy: ±(0.5% + 3mV) @6V; ±(1% + 50mV) @60V; ±(1.2% + 500mV) @450V
Resistance measuring accuracy: ±(1%+40Ω)@(60kΩ); ±(1%+400Ω)@(600kΩ); ±(1.2%+6Ω)@(6kΩ); ±(2%+4kΩ)@(6MΩ)
Pollution degree: 2
Capacitance measuring accuracy: ±(3.5% + 0.6nF) @ 100nF; ±(3.5% + 6nF) @ 1000nF; ±(3.5% + 0.06µF) @ 10µF; ±(3.5% + 0.6µF) @ 100µF
DC voltage measuring range: 6V; 60V; 450V
AC voltage measuring range: 6V; 60V; 450V
Resistance measuring range: 6kΩ; 60kΩ; 600kΩ; 6MΩ
Engineering PN: 55500083
Display parameters: (6000)
Measurement: AC voltage; capacitance; continuity; DC voltage; frequency; resistance; touch voltage
Power supply: battery CR2032 3V x1
Conform to the norm: CAT II 450V; CAT III 300V; EN 61010
Type of meter: digital multimeter
Kind of display used: LCD
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
2+68.74 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PM100 TEMPO

Category: Portable digital multimeters, Description: Digital multimeter; LCD; (6000); VDC: 6V,60V,450V; 0÷40°C, Operating temperature: 0...40°C, Battery/ rechargeable battery: none, Measuring instrument features: permanently connected test leads, Standard equipment: soft case, Storage temperature: -20...60°C, Capacitance measuring range: 100nF; 1µF; 10µF; 100µF, DC voltage measuring accuracy: ±(0.5% + 3mV) @6V; ±(1% + 50mV) @60V; ±(1.2% + 500mV) @450V, AC voltage measuring accuracy: ±(0.5% + 3mV) @6V; ±(1% + 50mV) @60V; ±(1.2% + 500mV) @450V, Resistance measuring accuracy: ±(1%+40Ω)@(60kΩ); ±(1%+400Ω)@(600kΩ); ±(1.2%+6Ω)@(6kΩ); ±(2%+4kΩ)@(6MΩ), Pollution degree: 2, Capacitance measuring accuracy: ±(3.5% + 0.6nF) @ 100nF; ±(3.5% + 6nF) @ 1000nF; ±(3.5% + 0.06µF) @ 10µF; ±(3.5% + 0.6µF) @ 100µF, DC voltage measuring range: 6V; 60V; 450V, AC voltage measuring range: 6V; 60V; 450V, Resistance measuring range: 6kΩ; 60kΩ; 600kΩ; 6MΩ, Engineering PN: 55500083, Display parameters: (6000), Measurement: AC voltage; capacitance; continuity; DC voltage; frequency; resistance; touch voltage, Power supply: battery CR2032 3V x1, Conform to the norm: CAT II 450V; CAT III 300V; EN 61010, Type of meter: digital multimeter, Kind of display used: LCD, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote PM100 nach Preis ab 5.45 EUR bis 68.74 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
PM100
+1
 		PM100 Hersteller : TEMPO pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB79C92AF817940D2&compId=TC-PM100_Datasheet.pdf?ci_sign=38f95220f45c959e23146984817a91146067313b Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 6V,60V,450V; 0÷40°C
Operating temperature: 0...40°C
Battery/ rechargeable battery: none
Measuring instrument features: permanently connected test leads
Standard equipment: soft case
Storage temperature: -20...60°C
Capacitance measuring range: 100nF; 1µF; 10µF; 100µF
DC voltage measuring accuracy: ±(0.5% + 3mV) @6V; ±(1% + 50mV) @60V; ±(1.2% + 500mV) @450V
AC voltage measuring accuracy: ±(0.5% + 3mV) @6V; ±(1% + 50mV) @60V; ±(1.2% + 500mV) @450V
Resistance measuring accuracy: ±(1%+40Ω)@(60kΩ); ±(1%+400Ω)@(600kΩ); ±(1.2%+6Ω)@(6kΩ); ±(2%+4kΩ)@(6MΩ)
Pollution degree: 2
Capacitance measuring accuracy: ±(3.5% + 0.6nF) @ 100nF; ±(3.5% + 6nF) @ 1000nF; ±(3.5% + 0.06µF) @ 10µF; ±(3.5% + 0.6µF) @ 100µF
DC voltage measuring range: 6V; 60V; 450V
AC voltage measuring range: 6V; 60V; 450V
Resistance measuring range: 6kΩ; 60kΩ; 600kΩ; 6MΩ
Engineering PN: 55500083
Display parameters: (6000)
Measurement: AC voltage; capacitance; continuity; DC voltage; frequency; resistance; touch voltage
Power supply: battery CR2032 3V x1
Conform to the norm: CAT II 450V; CAT III 300V; EN 61010
Type of meter: digital multimeter
Kind of display used: LCD
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
2+68.74 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH

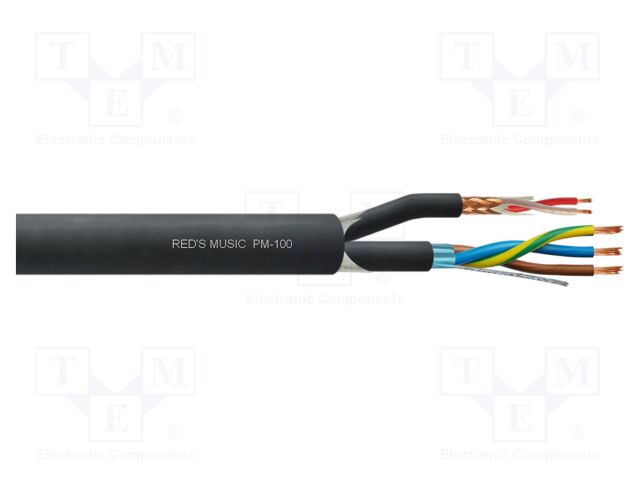

PM-100 PM-100 Hersteller : REDS MUSIC pVersion=0046&contRep=ZT&docId=005056AB281E1FD084A9A0017D6880DC&compId=Redsmusic%20PM-100%20EN.pdf?ci_sign=6891fcc15979b9e080f75f5d5e53d8e5421a422f Category: Microphone Cables
Description: Wire: microphone cable; 2x0.23mm2,3x1.5mm2; black; Cu; -25÷65°C
Kind of core: Cu
Wire insulation material: PVC
Core structure: stranded
Operating temperature: -25...65°C
Core section: 0.23mm2; 1.5mm2
Cable external diameter: 14.5mm
Number of cores: 5
Cable structure: 2x0.23mm2; 3x1.5mm2
Package contents: 500m
Shield structure: Al foil; braid made of copper wires; shielded
Insulation colour: black
Type of wire: microphone cable
Anzahl je Verpackung: 1 Stücke
auf Bestellung 500 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
6+11.95 EUR
13+5.76 EUR
14+5.45 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
PM-100 PM-100 Hersteller : REDS MUSIC pVersion=0046&contRep=ZT&docId=005056AB281E1FD084A9A0017D6880DC&compId=Redsmusic%20PM-100%20EN.pdf?ci_sign=6891fcc15979b9e080f75f5d5e53d8e5421a422f Category: Microphone Cables
Description: Wire: microphone cable; 2x0.23mm2,3x1.5mm2; black; Cu; -25÷65°C
Kind of core: Cu
Wire insulation material: PVC
Core structure: stranded
Operating temperature: -25...65°C
Core section: 0.23mm2; 1.5mm2
Cable external diameter: 14.5mm
Number of cores: 5
Cable structure: 2x0.23mm2; 3x1.5mm2
Package contents: 500m
Shield structure: Al foil; braid made of copper wires; shielded
Insulation colour: black
Type of wire: microphone cable
auf Bestellung 500 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
6+11.95 EUR
13+5.76 EUR
14+5.45 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
PM-100 PM-100 Hersteller : Floyd Bell Inc print.pdf Description: MINI FLANGE MOUNT CONTINUOUS ALA
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PM100 PM100 Hersteller : TEMPO 3227689.pdf Description: TEMPO - PM100 - Tragbares Digitalmultimeter, AC/DC-Spannung, Kapazität, Durchgang, Frequenz, Widerstand
tariffCode: 90303100
Messwert Gleichspannung, max.: 450V
Messwert Wechselspannung, max.: 450V
Messwert Widerstand, max.: 6Mohm
Messwert Gleichstrom, max.: -
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: 3A992.a
Schritte: 6000
Herstellergewährleistung: 1 Jahr
euEccn: NLR
Anzahl der Stellen: -
DMM-Messverfahren: Echteffektivwert
DMM-Funktionen: AC/DC-Spannung, Kapazität, Durchgang, Frequenz, Widerstand
Produktpalette: -
productTraceability: No
Messwert Wechselstrom, max.: -
Bereichswahl: Automatisch, manuell
SVHC: No SVHC (14-Jun-2023)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PM-100 Hersteller : Mueller Electric print.pdf Mueller Electric LABEL, POLYESTER, 1.5 X .25
