PMB1212PLB2-A(2).GN SUNON


Category: DC12V Fans

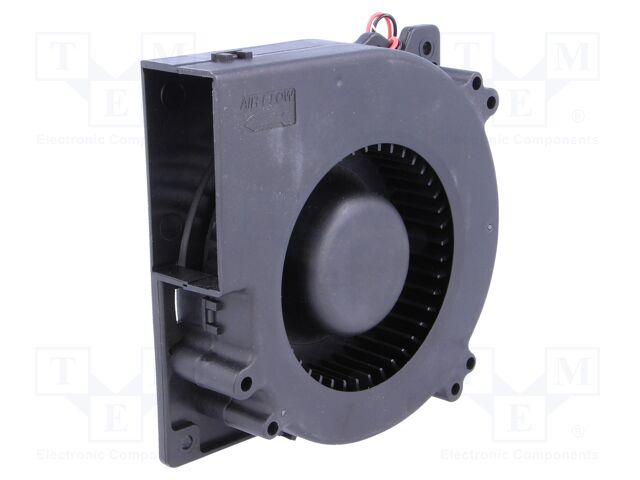

Description: Fan: DC; blower; 12VDC; 120x120x32mm; 60.99m3/h; 53.8dBA; ball
Kind of Bearing: ball
Kind of fan: blower
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Fan dimensions: 120x120x32mm
Lead length: 0.3m
Current rating: 0.82A
Power consumption: 9.8W
Operating voltage: 6...13.8V DC
Supply voltage: 12V DC
Current and power consumption tolerance: ±15%
Static pressure: 22.59mm H2O
Wire size: 28AWG
Noise level: 53.8dBA
Fan efficiency: 60.99m3/h
Rotational rate/speed: 2500 (±10%)rpm
Min. insulation resistance: 10MΩ
Insulation class: E
Enclosure material: thermoplastic
Additional functions: autorestart
Anzahl je Verpackung: 1 Stücke
auf Bestellung 258 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
4+ | 20.38 EUR |
10+ | 19.02 EUR |
44+ | 17.66 EUR |
220+ | 16.36 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PMB1212PLB2-A(2).GN SUNON
Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 120x120x32mm; 60.99m3/h; 53.8dBA; ball, Kind of Bearing: ball, Kind of fan: blower, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Fan dimensions: 120x120x32mm, Lead length: 0.3m, Current rating: 0.82A, Power consumption: 9.8W, Operating voltage: 6...13.8V DC, Supply voltage: 12V DC, Current and power consumption tolerance: ±15%, Static pressure: 22.59mm H2O, Wire size: 28AWG, Noise level: 53.8dBA, Fan efficiency: 60.99m3/h, Rotational rate/speed: 2500 (±10%)rpm, Min. insulation resistance: 10MΩ, Insulation class: E, Enclosure material: thermoplastic, Additional functions: autorestart, Anzahl je Verpackung: 1 Stücke.
