PT65301

PT65301 PTR HARTMANN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF81C286F8ACB6A0D6&compId=PT65301H.pdf?ci_sign=16b498f1be22ad5f84a2298ac754b59dc5fbc7bd Hersteller: PTR HARTMANN
Category: Encoding Switches

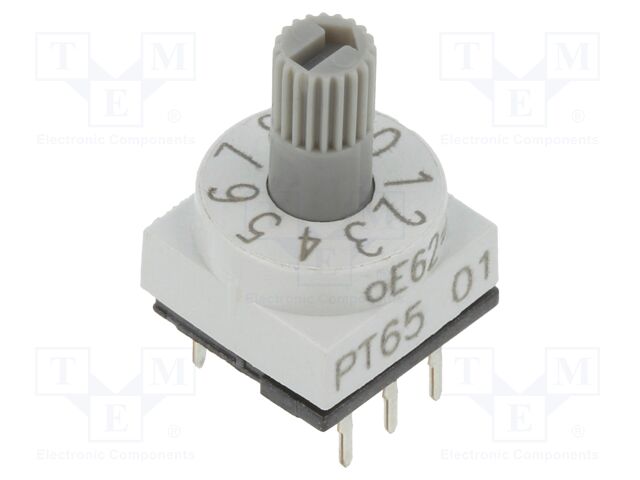

Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65
Terminal pitch: 2.54mm
Operating temperature: -20...70°C
Body dimensions: 10x10x6.5mm
Leads: for PCB; straight
Type of switch: encoding switch
DC contacts rating @R: 1µA / 20mV DC
Stable positions number: 10
Kind of encoding switch: DEC/BCD
Switches features: with knob
Manufacturer series: PT65
Number of positions: 10
Mounting: THT
Max. contact resistance:: 80mΩ
Min. insulation resistance: 0.1GΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 90 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
9+8.01 EUR
27+2.66 EUR
29+2.52 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PT65301 PTR HARTMANN

Category: Encoding Switches, Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65, Terminal pitch: 2.54mm, Operating temperature: -20...70°C, Body dimensions: 10x10x6.5mm, Leads: for PCB; straight, Type of switch: encoding switch, DC contacts rating @R: 1µA / 20mV DC, Stable positions number: 10, Kind of encoding switch: DEC/BCD, Switches features: with knob, Manufacturer series: PT65, Number of positions: 10, Mounting: THT, Max. contact resistance:: 80mΩ, Min. insulation resistance: 0.1GΩ, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote PT65301 nach Preis ab 2.52 EUR bis 20.09 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
PT65301 PT65301 Hersteller : PTR HARTMANN pVersion=0046&contRep=ZT&docId=005056AB281E1EDF81C286F8ACB6A0D6&compId=PT65301H.pdf?ci_sign=16b498f1be22ad5f84a2298ac754b59dc5fbc7bd Category: Encoding Switches
Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65
Terminal pitch: 2.54mm
Operating temperature: -20...70°C
Body dimensions: 10x10x6.5mm
Leads: for PCB; straight
Type of switch: encoding switch
DC contacts rating @R: 1µA / 20mV DC
Stable positions number: 10
Kind of encoding switch: DEC/BCD
Switches features: with knob
Manufacturer series: PT65
Number of positions: 10
Mounting: THT
Max. contact resistance:: 80mΩ
Min. insulation resistance: 0.1GΩ
auf Bestellung 90 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
9+8.01 EUR
27+2.66 EUR
29+2.52 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
PT65301 PT65301 Hersteller : Apem PCB_serie_PT65_10_11_2021-3395915.pdf Coded Rotary Switches 9.5mm 10 POS. ROTARY
auf Bestellung 58 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+14.91 EUR
10+14.56 EUR
25+13.43 EUR
50+11.90 EUR
100+10.65 EUR
250+9.80 EUR
500+9.22 EUR
Im Einkaufswagen  Stück im Wert von  UAH
PT65301 PT65301 Hersteller : APEM Inc. PCB_serie_PT65_10_11_2021.pdf Description: SWITCH ROTARY DIP BCD 0.15A 24V
Features: Sealed - Flux Protection
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 24VDC
Current Rating (Amps): 150mA
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm), Full
Circuit: BCD
Operating Temperature: -20°C ~ 70°C
Termination Style: PC Pin
Actuator Type: Rotary with Shaft
Height Above Board: 0.543" (13.80mm)
Actuator Level: Raised
Washable: Yes
Contact Material: Phosphor Bronze
Part Status: Active
Number of Positions: 10
auf Bestellung 324 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+19.03 EUR
10+15.77 EUR
50+13.80 EUR
100+13.07 EUR
250+12.20 EUR
Im Einkaufswagen  Stück im Wert von  UAH
PT65301 PT65301 Hersteller : APEM Components 1126034266782017index.phptrollerattachmentid_attachment835.phptrollerattach.pdf Switch DIP N.O./N.C. SP10T 10 Spindle 0.15A 42VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tray
auf Bestellung 1960 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
8+20.09 EUR
25+17.86 EUR
50+15.59 EUR
100+14.27 EUR
250+12.88 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
PT65301 PT65301 Hersteller : Hartmann ptr_hartmann_pt65_3_01_-_-.pdf Switch DIP SP10T 10 Flush Screwdriver 0.15A 42VAC 42VDC PC Pins 30000Cycles 2.54mm Thru-Hole Tube
auf Bestellung 410 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PT65301
Produktcode: 165916
zu Favoriten hinzufügen Lieblingsprodukt

PCB_serie_PT65_10_11_2021.pdf Passive Bauelemente > Tasten/Knöpfe und Tastatur
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PT65301 PT65301 Hersteller : APEM PCB_serie_PT65_10_11_2021.pdf Description: APEM - PT65301 - Drehcodierschalter, PT65, Durchsteckmontage, 10 Positionen, 24 VDC, BCD, 400 mA
tariffCode: 85365015
Schaltermontage: Durchsteckmontage
productTraceability: No
rohsCompliant: YES
Schaltstrom: 400mA
Schaltspannung: 24VDC
Betätigerhöhe: Erhaben
euEccn: NLR
Schalterkonstruktion: Gekapselt
Ausgabecode: BCD
Anzahl der Schalterpositionen: 10 Positionen
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
Produktpalette: PT65
SVHC: No SVHC (16-Jul-2019)
Produkt ist nicht verfügbar
