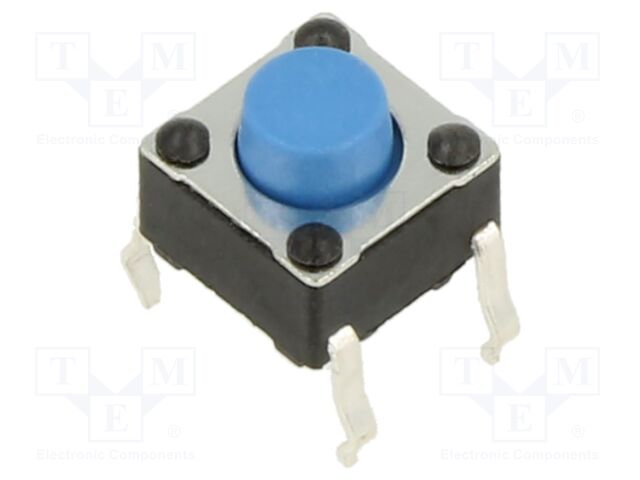

PTS645SM50-2 LFS C&K
Hersteller: C&KCategory: Microswitches TACT
Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; THT; none; 1.6N
Type of switch: microswitch TACT
Contacts configuration: SPST-NO
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: THT
Illumination: none
Operating Force: 1.6N
Body dimensions: 6x6x3.45mm
Button height: 5mm
Switching method: OFF-(ON)
Terminal pitch: 4.5x6.5mm
Manufacturer series: PTS645
Operating temperature: -20...85°C
Button shape: round
Actuator colour: blue
Key stroke: 0.25mm
Leads: for PCB
Max. contact resistance:: 100mΩ
Min. insulation resistance: 100GΩ
Contact plating: silver plated
IP rating: IP40
Mechanical durability: 100000 cycles
Kind of package: reel; tape
Number of terminals: 4
Anzahl je Verpackung: 1 Stücke
auf Bestellung 571 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 278+ | 0.26 EUR |
| 332+ | 0.22 EUR |
| 355+ | 0.2 EUR |
| 394+ | 0.18 EUR |
| 424+ | 0.17 EUR |
| 500+ | 0.16 EUR |
| 2000+ | 0.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PTS645SM50-2 LFS C&K
Category: Microswitches TACT, Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; THT; none; 1.6N, Type of switch: microswitch TACT, Contacts configuration: SPST-NO, Number of positions: 2, Stable positions number: 1, DC contacts rating @R: 50mA / 12V DC, Mounting: THT, Illumination: none, Operating Force: 1.6N, Body dimensions: 6x6x3.45mm, Button height: 5mm, Switching method: OFF-(ON), Terminal pitch: 4.5x6.5mm, Manufacturer series: PTS645, Operating temperature: -20...85°C, Button shape: round, Actuator colour: blue, Key stroke: 0.25mm, Leads: for PCB, Max. contact resistance:: 100mΩ, Min. insulation resistance: 100GΩ, Contact plating: silver plated, IP rating: IP40, Mechanical durability: 100000 cycles, Kind of package: reel; tape, Number of terminals: 4, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PTS645SM50-2 LFS nach Preis ab 0.16 EUR bis 0.45 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PTS645SM50-2 LFS | Hersteller : C&K |
Category: Microswitches TACT Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; THT; none; 1.6N Type of switch: microswitch TACT Contacts configuration: SPST-NO Number of positions: 2 Stable positions number: 1 DC contacts rating @R: 50mA / 12V DC Mounting: THT Illumination: none Operating Force: 1.6N Body dimensions: 6x6x3.45mm Button height: 5mm Switching method: OFF-(ON) Terminal pitch: 4.5x6.5mm Manufacturer series: PTS645 Operating temperature: -20...85°C Button shape: round Actuator colour: blue Key stroke: 0.25mm Leads: for PCB Max. contact resistance:: 100mΩ Min. insulation resistance: 100GΩ Contact plating: silver plated IP rating: IP40 Mechanical durability: 100000 cycles Kind of package: reel; tape Number of terminals: 4 |
auf Bestellung 571 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
PTS645SM50-2 LFS | Hersteller : C&K |
Description: SWITCH TACTILE SPST-NO 0.05A 12V Packaging: Bulk Mounting Type: Through Hole Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Illumination: Non-Illuminated Contact Rating @ Voltage: 0.05A @ 12VDC Actuator Type: Standard Operating Force: 160gf Outline: 6.00mm x 6.00mm Actuator Height off PCB, Vertical: 5.00mm Actuator Orientation: Top Actuated Part Status: Active |
auf Bestellung 10008 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
PTS645SM50-2 LFS | Hersteller : C&K |
Tactile Switches PTS645SM50-2 LFS |
auf Bestellung 10290 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
|
|
PTS645SM502LFS | Hersteller : C&K |
Tactile Switches SWITCH TACTILE |
auf Bestellung 5408 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
PTS645SM50-2 LFS | Hersteller : C&K |
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 100000Cycles 1.57N Thru-Hole Bulk |
auf Bestellung 1975 Stücke: Lieferzeit 14-21 Tag (e) |
