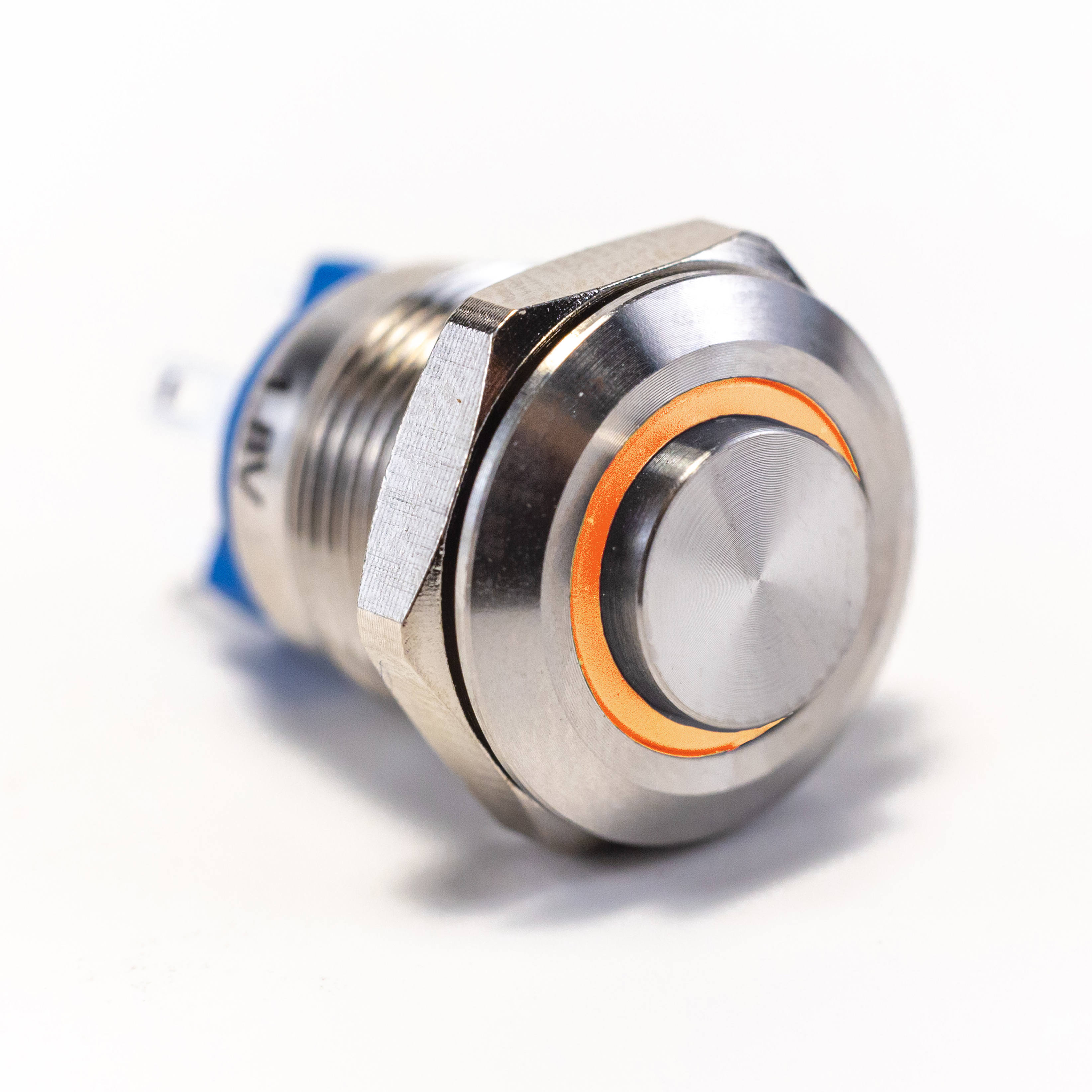

PV0H240SS-3K1 E-Switch
Hersteller: E-Switch
Description: SWITCH PB SPST-NO 2A 36V
Packaging: Bulk
Current Rating (Amps): 2A (DC)
Mounting Type: Panel Mount, Front
Circuit: SPST-NO
Type: Anti-Vandal, Illuminated
Switch Function: Off-Mom
Operating Temperature: -20°C ~ 55°C
Termination Style: Solder Lug
Illumination Type, Color: LED, Green/Orange
Illumination Voltage (Nominal): 1.8, 2.8 VDC
Actuator Type: Round, Button
Ingress Protection: IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions: Circular - 12.00mm Dia
Color - Actuator/Cap: Silver
Voltage Rating - DC: 36 V
Produktrezensionen
Produktbewertung abgeben
Technische Details PV0H240SS-3K1 E-Switch
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; PV0; 2A/36VDC; IP67, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST-NO, Manufacturer series: PV0, DC contacts rating @R: 2A / 36V DC, IP rating: IP67, Switching method: OFF-(ON), Leads: for soldering, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4N, Button shape: prominent; round, Mounting hole dimensions: Ø12mm, Body material: stainless steel, Contact material: silver, Mounting: on panel, Operating temperature: -40...85°C, Body colour: silver, Actuator colour: silver, Backlight colour: orange/green, Key stroke: 1.5mm, Body dimensions: Ø14x19.5mm, Min. insulation resistance: 1GΩ, Leads dimensions: 2x0.5mm, Illumination: LED; ring, Panel thickness: 1...6mm.
Weitere Produktangebote PV0H240SS-3K1
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
PV0H240SS-3K1 | E-Switch |
Pushbutton Switches - Industrial Anti-vandal, SPST, Off-(On), Panel Mount, Front, Silver, LED, Green/Orange, IP67 |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 500 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
PV0H240SS-3K1 | E-SWITCH |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST-NO; PV0; 2A/36VDC; IP67 Type of switch: vandal resistant Number of positions: 2 Stable positions number: 1 Contacts configuration: SPST-NO Manufacturer series: PV0 DC contacts rating @R: 2A / 36V DC IP rating: IP67 Switching method: OFF-(ON) Leads: for soldering Electrical life: 50000 cycles Max. contact resistance:: 50mΩ Operating Force: 4N Button shape: prominent; round Mounting hole dimensions: Ø12mm Body material: stainless steel Contact material: silver Mounting: on panel Operating temperature: -40...85°C Body colour: silver Actuator colour: silver Backlight colour: orange/green Key stroke: 1.5mm Body dimensions: Ø14x19.5mm Min. insulation resistance: 1GΩ Leads dimensions: 2x0.5mm Illumination: LED; ring Panel thickness: 1...6mm |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 500 Stücke Im Einkaufswagen Stück im Wert von UAH |
| PV0H240SS-3K1 |
|
Hersteller: E-Switch
Pushbutton Switches - Industrial Anti-vandal, SPST, Off-(On), Panel Mount, Front, Silver, LED, Green/Orange, IP67
Pushbutton Switches - Industrial Anti-vandal, SPST, Off-(On), Panel Mount, Front, Silver, LED, Green/Orange, IP67
Produkt ist nicht verfügbar
Mindestbestellmenge: 500 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| PV0H240SS-3K1 |
|
Hersteller: E-SWITCH
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; PV0; 2A/36VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
Manufacturer series: PV0
DC contacts rating @R: 2A / 36V DC
IP rating: IP67
Switching method: OFF-(ON)
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Button shape: prominent; round
Mounting hole dimensions: Ø12mm
Body material: stainless steel
Contact material: silver
Mounting: on panel
Operating temperature: -40...85°C
Body colour: silver
Actuator colour: silver
Backlight colour: orange/green
Key stroke: 1.5mm
Body dimensions: Ø14x19.5mm
Min. insulation resistance: 1GΩ
Leads dimensions: 2x0.5mm
Illumination: LED; ring
Panel thickness: 1...6mm
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; PV0; 2A/36VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
Manufacturer series: PV0
DC contacts rating @R: 2A / 36V DC
IP rating: IP67
Switching method: OFF-(ON)
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Button shape: prominent; round
Mounting hole dimensions: Ø12mm
Body material: stainless steel
Contact material: silver
Mounting: on panel
Operating temperature: -40...85°C
Body colour: silver
Actuator colour: silver
Backlight colour: orange/green
Key stroke: 1.5mm
Body dimensions: Ø14x19.5mm
Min. insulation resistance: 1GΩ
Leads dimensions: 2x0.5mm
Illumination: LED; ring
Panel thickness: 1...6mm
Produkt ist nicht verfügbar
Mindestbestellmenge: 500 Stücke
Im Einkaufswagen
Stück im Wert von UAH
