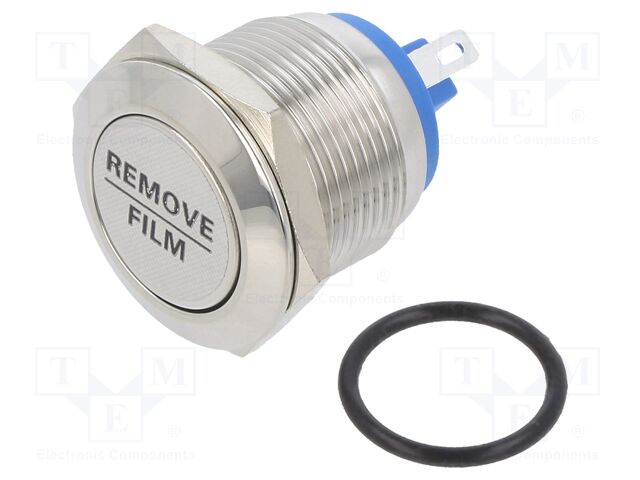

PV1F240SS E-SWITCH
Hersteller: E-SWITCHCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
DC contacts rating @R: 2A / 36V DC
IP rating: IP65
Switching method: OFF-(ON)
Illumination: none
Leads: for soldering
Electrical life: 200000 cycles
Max. contact resistance:: 50mΩ
Button shape: flat; round
Mounting hole diameter: Ø19mm
Body colour: silver
Manufacturer series: PV1
Contact material: silver
Actuator colour: silver
Button marking: blank
Min. insulation resistance: 1GΩ
Panel thickness: max. 8mm
Mounting: on panel
Body dimensions: Ø22x20mm
Operating temperature: -20...55°C
Button height: 2mm
Contact plating: silver plated
Mechanical durability: 1000000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 92 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 8+ | 9.92 EUR |
| 10+ | 8.69 EUR |
| 40+ | 7.68 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PV1F240SS E-SWITCH
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON), Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST-NO, DC contacts rating @R: 2A / 36V DC, IP rating: IP65, Switching method: OFF-(ON), Illumination: none, Leads: for soldering, Electrical life: 200000 cycles, Max. contact resistance:: 50mΩ, Button shape: flat; round, Mounting hole diameter: Ø19mm, Body colour: silver, Manufacturer series: PV1, Contact material: silver, Actuator colour: silver, Button marking: blank, Min. insulation resistance: 1GΩ, Panel thickness: max. 8mm, Mounting: on panel, Body dimensions: Ø22x20mm, Operating temperature: -20...55°C, Button height: 2mm, Contact plating: silver plated, Mechanical durability: 1000000 cycles, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PV1F240SS nach Preis ab 7.68 EUR bis 15.61 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PV1F240SS | Hersteller : E-SWITCH |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON) Type of switch: vandal resistant Number of positions: 2 Stable positions number: 1 Contacts configuration: SPST-NO DC contacts rating @R: 2A / 36V DC IP rating: IP65 Switching method: OFF-(ON) Illumination: none Leads: for soldering Electrical life: 200000 cycles Max. contact resistance:: 50mΩ Button shape: flat; round Mounting hole diameter: Ø19mm Body colour: silver Manufacturer series: PV1 Contact material: silver Actuator colour: silver Button marking: blank Min. insulation resistance: 1GΩ Panel thickness: max. 8mm Mounting: on panel Body dimensions: Ø22x20mm Operating temperature: -20...55°C Button height: 2mm Contact plating: silver plated Mechanical durability: 1000000 cycles |
auf Bestellung 92 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
PV1F240SS | Hersteller : E-Switch |
Pushbutton Switches 0-2A 48VDC Off (On) 19mm Flat 1 Pole |
auf Bestellung 223 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
PV1F240SS | Hersteller : E-Switch |
Description: SWITCH PUSHBUTTON SPST-NO 2A 48V Packaging: Bulk Current Rating (Amps): 2A (DC) Mounting Type: Panel Mount, Front Circuit: SPST-NO Type: Anti-Vandal Switch Function: Off-Mom Operating Temperature: -20°C ~ 55°C Termination Style: Solder, Quick Connect - 0.110" (2.8mm) Actuator Type: Round, Button, Flush Ingress Protection: IP65 - Dust Tight, Water Resistant Panel Cutout Dimensions: Circular - 19.00mm Dia Color - Actuator/Cap: Silver Actuator Marking: No Marking Voltage Rating - DC: 48 V |
auf Bestellung 1098 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
| PV1F240SS | Hersteller : E-Switch |
Switch Push Button OFF (ON) SPST Flush Round Button 2A 36VDC Momentary Contact Solder Panel Mount |
auf Bestellung 92 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||||
| PV1F240SS | Hersteller : E-Switch |
Switch Push Button OFF (ON) SPST Flush Round Button 2A 36VDC Momentary Contact Solder Panel Mount |
auf Bestellung 399 Stücke: Lieferzeit 14-21 Tag (e) |
|
