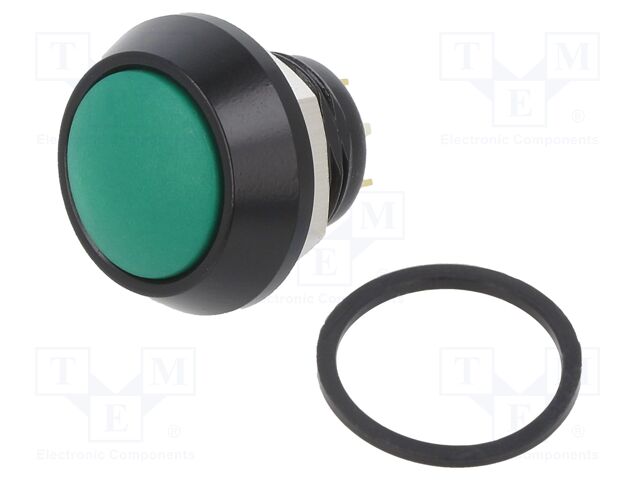

PV5S24018 E-SWITCH
Hersteller: E-SWITCHCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
IP rating: IP65
Operating temperature: -25...55°C
Actuator colour: green
Illumination: none
Switching method: OFF-(ON)
Mounting: on panel
Contacts configuration: SPST-NO
Type of switch: vandal resistant
Panel thickness: 1...5mm
Key stroke: 2.5mm
Mounting hole diameter: Ø12mm
Body dimensions: Ø17.5x14.3mm
Max. contact resistance:: 50mΩ
Stable positions number: 1
Number of positions: 2
DC contacts rating @R: 2A / 36V DC
Operating Force: 5N
Mechanical durability: 1000000 cycles
Electrical life: 200000 cycles
Min. insulation resistance: 1GΩ
Body material: aluminium anodised
Body colour: black
Button marking: blank
Contact material: silver
Button shape: convex; round
Manufacturer series: PV5
Leads: for soldering
Anzahl je Verpackung: 1 Stücke
auf Bestellung 79 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 14+ | 5.43 EUR |
| 17+ | 4.32 EUR |
| 18+ | 4.08 EUR |
| 500+ | 4.06 EUR |
| 1000+ | 3.95 EUR |
| 2500+ | 3.92 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PV5S24018 E-SWITCH
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON), IP rating: IP65, Operating temperature: -25...55°C, Actuator colour: green, Illumination: none, Switching method: OFF-(ON), Mounting: on panel, Contacts configuration: SPST-NO, Type of switch: vandal resistant, Panel thickness: 1...5mm, Key stroke: 2.5mm, Mounting hole diameter: Ø12mm, Body dimensions: Ø17.5x14.3mm, Max. contact resistance:: 50mΩ, Stable positions number: 1, Number of positions: 2, DC contacts rating @R: 2A / 36V DC, Operating Force: 5N, Mechanical durability: 1000000 cycles, Electrical life: 200000 cycles, Min. insulation resistance: 1GΩ, Body material: aluminium anodised, Body colour: black, Button marking: blank, Contact material: silver, Button shape: convex; round, Manufacturer series: PV5, Leads: for soldering, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PV5S24018 nach Preis ab 4.08 EUR bis 8.25 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PV5S24018 | Hersteller : E-SWITCH |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON) IP rating: IP65 Operating temperature: -25...55°C Actuator colour: green Illumination: none Switching method: OFF-(ON) Mounting: on panel Contacts configuration: SPST-NO Type of switch: vandal resistant Panel thickness: 1...5mm Key stroke: 2.5mm Mounting hole diameter: Ø12mm Body dimensions: Ø17.5x14.3mm Max. contact resistance:: 50mΩ Stable positions number: 1 Number of positions: 2 DC contacts rating @R: 2A / 36V DC Operating Force: 5N Mechanical durability: 1000000 cycles Electrical life: 200000 cycles Min. insulation resistance: 1GΩ Body material: aluminium anodised Body colour: black Button marking: blank Contact material: silver Button shape: convex; round Manufacturer series: PV5 Leads: for soldering |
auf Bestellung 79 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
PV5S24018 | Hersteller : E-Switch |
Description: SWITCH PUSH SPST-NO 2A 36V Packaging: Bulk Current Rating (Amps): 2A (DC) Mounting Type: Panel Mount, Front Circuit: SPST-NO Type: Anti-Vandal Switch Function: Off-Mom Operating Temperature: -20°C ~ 70°C Termination Style: Solder Lug Actuator Type: Round, Button, Domed Ingress Protection: IP65 - Dust Tight, Water Resistant Panel Cutout Dimensions: Circular - 12.00mm Dia Color - Actuator/Cap: Green Actuator Marking: No Marking Part Status: Active Voltage Rating - DC: 36 V |
auf Bestellung 357 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
PV5S24018 | Hersteller : E-Switch |
Pushbutton Switches 0-2A 48VDC Off (On) 12mm Green Domed |
auf Bestellung 97 Stücke: Lieferzeit 10-14 Tag (e) |
|
