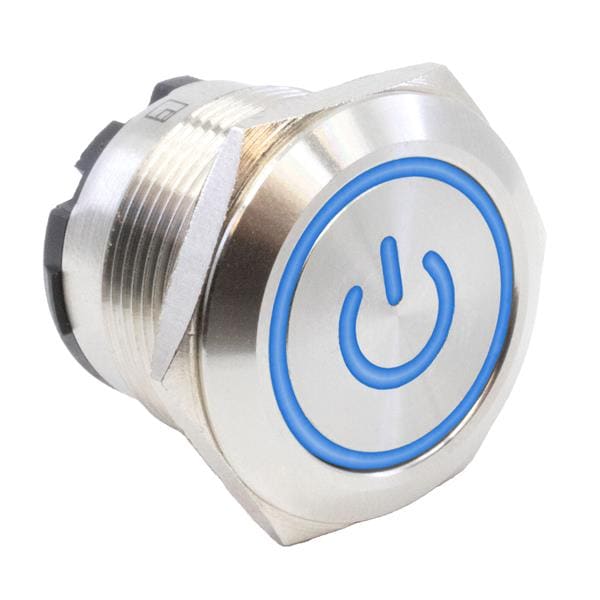

PVHC7F23SS314 E-SWITCH
Hersteller: E-SWITCHCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 20A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Contacts configuration: SPST
AC contacts rating @R: 20A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 12V
Leads: for soldering
Button shape: flat; round
Mounting hole diameter: Ø22mm
Body colour: metallic
Manufacturer series: PVHC7
Contact material: silver
Mounting: on panel
Operating temperature: -40...85°C
Stable positions number: 2
Number of positions: 2
Operating Force: 6N
Mechanical durability: 500000 cycles
Electrical life: 50000 cycles
Min. insulation resistance: 0.1GΩ
Panel thickness: max. 6mm
Key stroke: 3.5mm
Body dimensions: Ø25x25.5mm
Max. contact resistance:: 50mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 11 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 20.84 EUR |
| 5+ | 19.42 EUR |
| 10+ | 18.62 EUR |
| 20+ | 17.79 EUR |
| 60+ | 16.77 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PVHC7F23SS314 E-SWITCH
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST; 20A/250VAC; IP67; OFF-ON, Type of switch: vandal resistant, Contacts configuration: SPST, AC contacts rating @R: 20A / 250V AC, IP rating: IP67, Switching method: OFF-ON, Illumination: LED; ring, Backlight colour: red, Illumination voltage: 12V, Leads: for soldering, Button shape: flat; round, Mounting hole diameter: Ø22mm, Body colour: metallic, Manufacturer series: PVHC7, Contact material: silver, Mounting: on panel, Operating temperature: -40...85°C, Stable positions number: 2, Number of positions: 2, Operating Force: 6N, Mechanical durability: 500000 cycles, Electrical life: 50000 cycles, Min. insulation resistance: 0.1GΩ, Panel thickness: max. 6mm, Key stroke: 3.5mm, Body dimensions: Ø25x25.5mm, Max. contact resistance:: 50mΩ, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PVHC7F23SS314 nach Preis ab 18.62 EUR bis 31.11 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PVHC7F23SS314 | Hersteller : E-SWITCH |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST; 20A/250VAC; IP67; OFF-ON Type of switch: vandal resistant Contacts configuration: SPST AC contacts rating @R: 20A / 250V AC IP rating: IP67 Switching method: OFF-ON Illumination: LED; ring Backlight colour: red Illumination voltage: 12V Leads: for soldering Button shape: flat; round Mounting hole diameter: Ø22mm Body colour: metallic Manufacturer series: PVHC7 Contact material: silver Mounting: on panel Operating temperature: -40...85°C Stable positions number: 2 Number of positions: 2 Operating Force: 6N Mechanical durability: 500000 cycles Electrical life: 50000 cycles Min. insulation resistance: 0.1GΩ Panel thickness: max. 6mm Key stroke: 3.5mm Body dimensions: Ø25x25.5mm Max. contact resistance:: 50mΩ |
auf Bestellung 11 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
PVHC7F23SS314 | Hersteller : E-Switch |
Pushbutton Switches ANTI-VANDAL, 20A, SPST, Off-On, LED, Red, IP67 |
auf Bestellung 119 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
PVHC7F23SS314 | Hersteller : E-SWITCH |
Description: E-SWITCH - PVHC7F23SS314 - Vandalensicherer Schalter, Ringbeleuchtung, 12V-LED, PVHC7 Series, 22 mm, SPST-NO-DM, Aus-Ein tariffCode: 85365080 rohsCompliant: YES Schalteranschlüsse: Lötfahne Betätiger-/Kappenfarbe: Natur hazardous: false rohsPhthalatesCompliant: YES Plattenausschnitt (H x B): - Schalterfunktion: Aus-Ein IP-Schutzart: IP67 usEccn: EAR99 AC-Kontaktstrom, max.: 20A euEccn: NLR DC-Kontaktstrom, max.: - Kontaktspannung V DC: - Farbe der Beleuchtung: Rot Durchmesser des Frontplattenausschnitts: 22mm Schaltermontage: Panelmontage Produktpalette: PVHC7 Series productTraceability: No Druckknopf-Betätiger: Rund, flach Kontaktkonfiguration: SPST-NO-DM Kontaktspannung V AC: 250V SVHC: No SVHC (07-Nov-2024) |
auf Bestellung 20 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
| PVHC7F23SS314 | Hersteller : E-Switch | PVHC7F23SS314 |
auf Bestellung 12 Stücke: Lieferzeit 14-21 Tag (e) |
|
