Produkte > MEAN WELL > PWM-40-12
PWM-40-12

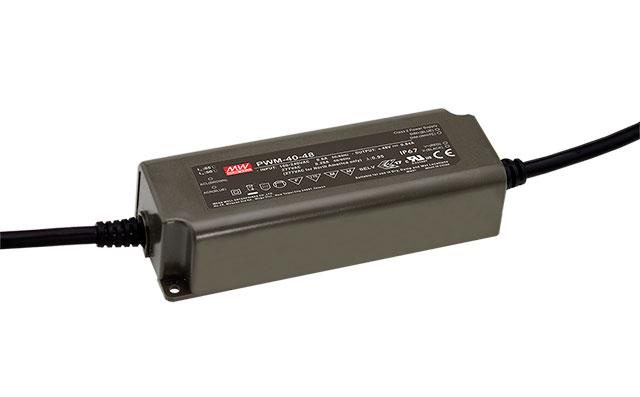

PWM-40-12 MEAN WELL

pVersion=0046&contRep=ZT&docId=005056AB752F1ED881B85966E7B68A18&compId=PWM-40-SPEC.PDF?ci_sign=d19adeca66ef196ce361b2a17f5a6d6908842d11 pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA3908F7DBE84A0C7&compId=Mean_Well_LED-Catalog.pdf?ci_sign=9418c0cab4404a4678439163a402f890ca6b0e6f Hersteller: MEAN WELL
Category: LED Power Supplies
Description: Power supply: switching; for LED tapes; 40.08W; 12VDC; 3.34A; IP67
Type of power supply: switching
Number of outputs: 1
Manufacturer series: PWM-40
Operating modes: constant voltage
Kind of power supply: LED
Application: for LED tapes
IP rating: IP67
Power supply unit features: PWM style output
Caution!: rated parameters obtained at full load
Electrical connection: wires
Operating temperature: -40...85°C
Output current: 3.34A
Body dimensions: 150x53x35mm
Lead length: 0.3m
Power consumption without load: <0.5W
Supply voltage: 90...305V AC; 127...431V DC
Output voltage: 12V DC
Power: 40.08W
Efficiency: 86%
Kind of case: NPF-60A
Additional functions: active PFC; dimming function 0-10V DC; PWM controlled dimming function; resistance dimming function
Protection: anti-overload OPP; anti-overvoltage OVP; overheating OTP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 87 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
3+30.03 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PWM-40-12 MEAN WELL

Description: LED DRIVER CV AC/DC 12V 3.34A, Features: OCP, OTP, OVP, SCP, Packaging: Box, Size / Dimension: 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm), Voltage - Output: 12V, Type: Constant Voltage, Operating Temperature: -40°C ~ 85°C, Termination Style: Wire Leads, Voltage - Input (Max): 305VAC, Approval Agency: CB, CCC, CE, cURus, ENEC, Ratings: IP67, Efficiency: 86%, Topology: AC DC Converter, Current - Output (Max): 3.34A, Dimming: Analog, PWM, Voltage - Input (Min): 90VAC, Part Status: Active, Power (Watts): 40 W, Number of Outputs: 1, Voltage - Isolation: 3.75 kV, DigiKey Programmable: Not Verified.

Weitere Produktangebote PWM-40-12 nach Preis ab 30.03 EUR bis 49 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
PWM-40-12 PWM-40-12 Hersteller : MEAN WELL pVersion=0046&contRep=ZT&docId=005056AB752F1ED881B85966E7B68A18&compId=PWM-40-SPEC.PDF?ci_sign=d19adeca66ef196ce361b2a17f5a6d6908842d11 pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA3908F7DBE84A0C7&compId=Mean_Well_LED-Catalog.pdf?ci_sign=9418c0cab4404a4678439163a402f890ca6b0e6f Category: LED Power Supplies
Description: Power supply: switching; for LED tapes; 40.08W; 12VDC; 3.34A; IP67
Type of power supply: switching
Number of outputs: 1
Manufacturer series: PWM-40
Operating modes: constant voltage
Kind of power supply: LED
Application: for LED tapes
IP rating: IP67
Power supply unit features: PWM style output
Caution!: rated parameters obtained at full load
Electrical connection: wires
Operating temperature: -40...85°C
Output current: 3.34A
Body dimensions: 150x53x35mm
Lead length: 0.3m
Power consumption without load: <0.5W
Supply voltage: 90...305V AC; 127...431V DC
Output voltage: 12V DC
Power: 40.08W
Efficiency: 86%
Kind of case: NPF-60A
Additional functions: active PFC; dimming function 0-10V DC; PWM controlled dimming function; resistance dimming function
Protection: anti-overload OPP; anti-overvoltage OVP; overheating OTP; short circuit protection SCP
auf Bestellung 87 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3+30.03 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
PWM-40-12 PWM-40-12 Hersteller : MEAN WELL USA Inc. PWM-40-spec.pdf Description: LED DRIVER CV AC/DC 12V 3.34A
Features: OCP, OTP, OVP, SCP
Packaging: Box
Size / Dimension: 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm)
Voltage - Output: 12V
Type: Constant Voltage
Operating Temperature: -40°C ~ 85°C
Termination Style: Wire Leads
Voltage - Input (Max): 305VAC
Approval Agency: CB, CCC, CE, cURus, ENEC
Ratings: IP67
Efficiency: 86%
Topology: AC DC Converter
Current - Output (Max): 3.34A
Dimming: Analog, PWM
Voltage - Input (Min): 90VAC
Part Status: Active
Power (Watts): 40 W
Number of Outputs: 1
Voltage - Isolation: 3.75 kV
DigiKey Programmable: Not Verified
auf Bestellung 27 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+49 EUR
5+45.43 EUR
10+43.98 EUR
25+42.12 EUR
Im Einkaufswagen  Stück im Wert von  UAH
PWM-40-12 PWM-40-12 Hersteller : MEAN WELL 2864648.pdf Description: MEAN WELL - PWM-40-12 - LED-Treiber, LED-Beleuchtung, 40.08 W, 12 VDC, 3.34 A, Konstantspannung, 90 V
tariffCode: 85044082
Ausgangsspannung, max.: 12VDC
Eingangsspannung, max.: 305V
productTraceability: No
rohsCompliant: YES
Ausgangsleistung, max.: 40.08W
euEccn: NLR
hazardous: false
rohsPhthalatesCompliant: YES
Ausgangsstrom: 3.34A
usEccn: EAR99
Eingangsspannung, min.: 90V
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
PWM-40-12 PWM-40-12 Hersteller : Mean-Well USA, Inc. pwm-40-spec.pdfpdfjs.pdf AC/DC LED Power Supply 40.08W Single 6-Pin
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PWM-40-12 PWM-40-12 Hersteller : Mean-Well USA, Inc. pwm-40-spec.pdfpdfjs.pdf AC/DC LED Power Supply 40.08W Single 6-Pin
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PWM-40-12 PWM-40-12 Hersteller : MEAN WELL pwm-40-spec.pdfpdfjs.pdf AC/DC LED Power Supply 40.08W Single 6-Pin
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
PWM-40-12 PWM-40-12 Hersteller : MEAN WELL PWM-40-spec.pdf LED Power Supplies 40.08W 12V 3.34A CV Dimming LED PS
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
