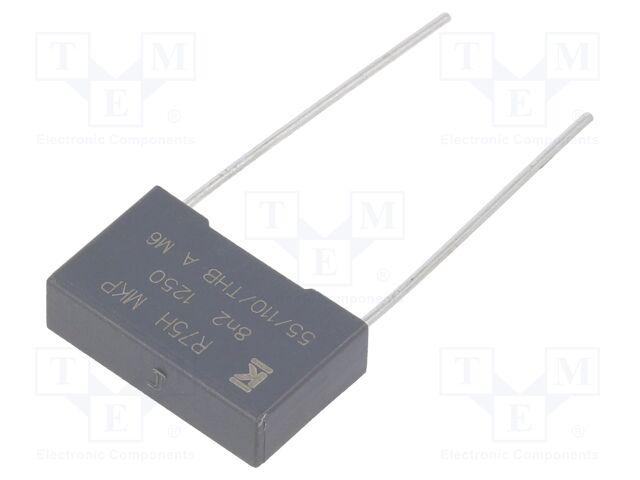

R75RI182050H3J KEMET
Hersteller: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; R75; 8.2nF; 630VDC; 250VAC; 18x5x11mm
Operating temperature: -55...105°C
Tolerance: ±5%
Terminal pitch: 15mm
Mounting: THT
Manufacturer series: R75
Pulse resistance: 3.3kV/μs
Climate class: 55/105/56; IEC 60068-1
Body dimensions: 18x5x11mm
Type of capacitor: polypropylene
Conform to the norm: AEC-Q200
Capacitance: 8.2nF
Lead length: 25mm
Operating voltage: 250V AC; 630V DC
| Anzahl | Privatkunde |
|---|---|
| 85+ | 1 EUR |
| 185+ | 0.46 EUR |
| 272+ | 0.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R75RI182050H3J KEMET
Description: CAP FILM 8200PF 5% 1.25KVDC RAD, Tolerance: ±5%, Packaging: Bulk, Package / Case: Radial, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 125°C, Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT, Lead Spacing: 0.591" (15.00mm), Termination: PC Pins, Ratings: AEC-Q200, Dielectric Material: Polypropylene (PP), Metallized, Voltage Rating - AC: 600V, Voltage Rating - DC: 1250V (1.25kV), Height - Seated (Max): 0.437" (11.10mm), Capacitance: 8200 pF, ESR (Equivalent Series Resistance): 97 mOhms, Size / Dimension: 0.709" L x 0.197" W (18.00mm x 5.00mm).
Weitere Produktangebote R75RI182050H3J nach Preis ab 0.48 EUR bis 1.58 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R75RI182050H3J | KEMET |
Description: CAP FILM 8200PF 5% 1.25KVDC RAD Tolerance: ±5% Packaging: Bulk Package / Case: Radial Mounting Type: Through Hole Operating Temperature: -55°C ~ 125°C Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT Lead Spacing: 0.591" (15.00mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - AC: 600V Voltage Rating - DC: 1250V (1.25kV) Height - Seated (Max): 0.437" (11.10mm) Capacitance: 8200 pF ESR (Equivalent Series Resistance): 97 mOhms Size / Dimension: 0.709" L x 0.197" W (18.00mm x 5.00mm) |
auf Bestellung 823 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
R75RI182050H3J | KEMET |
Film Capacitors 1.2k V 0.0082 uF 125C 5% 2 Pin LS=15 mm AEC-Q200 |
auf Bestellung 827 Stücke: Lieferzeit 10-14 Tag (e) |
|
| R75RI182050H3J |
|
Hersteller: KEMET
Description: CAP FILM 8200PF 5% 1.25KVDC RAD
Tolerance: ±5%
Packaging: Bulk
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 125°C
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Lead Spacing: 0.591" (15.00mm)
Termination: PC Pins
Ratings: AEC-Q200
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 600V
Voltage Rating - DC: 1250V (1.25kV)
Height - Seated (Max): 0.437" (11.10mm)
Capacitance: 8200 pF
ESR (Equivalent Series Resistance): 97 mOhms
Size / Dimension: 0.709" L x 0.197" W (18.00mm x 5.00mm)
Description: CAP FILM 8200PF 5% 1.25KVDC RAD
Tolerance: ±5%
Packaging: Bulk
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 125°C
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Lead Spacing: 0.591" (15.00mm)
Termination: PC Pins
Ratings: AEC-Q200
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 600V
Voltage Rating - DC: 1250V (1.25kV)
Height - Seated (Max): 0.437" (11.10mm)
Capacitance: 8200 pF
ESR (Equivalent Series Resistance): 97 mOhms
Size / Dimension: 0.709" L x 0.197" W (18.00mm x 5.00mm)
auf Bestellung 823 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 15+ | 1.49 EUR |
| 24+ | 0.9 EUR |
| 50+ | 0.67 EUR |
| 100+ | 0.6 EUR |
| 500+ | 0.48 EUR |
| R75RI182050H3J |
|
Hersteller: KEMET
Film Capacitors 1.2k V 0.0082 uF 125C 5% 2 Pin LS=15 mm AEC-Q200
Film Capacitors 1.2k V 0.0082 uF 125C 5% 2 Pin LS=15 mm AEC-Q200
auf Bestellung 827 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 1.58 EUR |
| 10+ | 1.07 EUR |
| 100+ | 0.77 EUR |
| 500+ | 0.63 EUR |
| 1000+ | 0.58 EUR |
| 2000+ | 0.54 EUR |
| 5000+ | 0.5 EUR |
