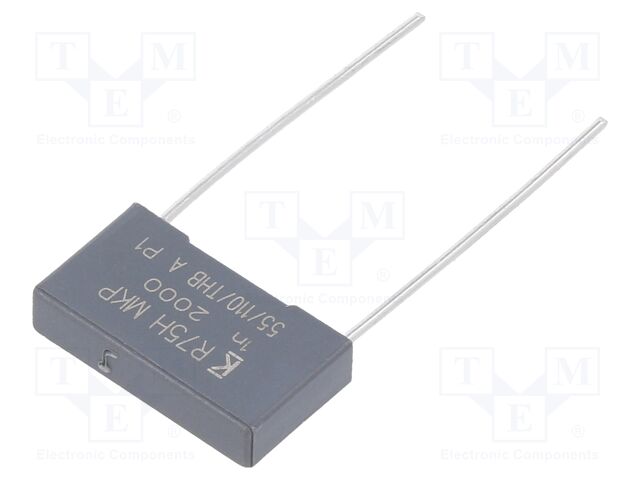

R75UI110050H4J KEMET
Hersteller: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; R75; 1nF; Uoper: 2kVDC; 700VAC; 18x4x10mm
Mounting: THT
Body dimensions: 18x4x10mm
Manufacturer series: R75
Operating temperature: -55...105°C
Capacitance: 1nF
Terminal pitch: 15mm
Lead length: 25mm
Tolerance: ±5%
Operating voltage: 2kV DC
Max. operating voltage: 700V AC; 2kV DC
Pulse resistance: 9.5kV/μs
Climate class: 55/105/56; IEC 60068-1
Conform to the norm: AEC-Q200
Type of capacitor: polypropylene
| Anzahl | Privatkunde |
|---|---|
| 95+ | 0.9 EUR |
| 189+ | 0.45 EUR |
| 239+ | 0.36 EUR |
| 260+ | 0.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R75UI110050H4J KEMET
Description: CAP FILM 1000PF 5% 2KVDC RADIAL, Tolerance: ±5%, Packaging: Bulk, Package / Case: Radial, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 125°C, Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT, Lead Spacing: 0.591" (15.00mm), Termination: PC Pins, Ratings: AEC-Q200, Dielectric Material: Polypropylene (PP), Metallized, Voltage Rating - AC: 700V, Voltage Rating - DC: 2000V (2kV), Height - Seated (Max): 0.398" (10.10mm), Capacitance: 1000 pF, ESR (Equivalent Series Resistance): 795.8 mOhms, Size / Dimension: 0.709" L x 0.157" W (18.00mm x 4.00mm).
Weitere Produktangebote R75UI110050H4J nach Preis ab 0.35 EUR bis 1.34 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R75UI110050H4J | KEMET |
Film Capacitors 2k V 0.001 uF 125C 5% 2 Pin LS=15 mm AEC-Q200 |
auf Bestellung 5744 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
R75UI110050H4J | KEMET |
Description: CAP FILM 1000PF 5% 2KVDC RADIAL Tolerance: ±5% Packaging: Bulk Package / Case: Radial Mounting Type: Through Hole Operating Temperature: -55°C ~ 125°C Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT Lead Spacing: 0.591" (15.00mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - AC: 700V Voltage Rating - DC: 2000V (2kV) Height - Seated (Max): 0.398" (10.10mm) Capacitance: 1000 pF ESR (Equivalent Series Resistance): 795.8 mOhms Size / Dimension: 0.709" L x 0.157" W (18.00mm x 4.00mm) |
auf Bestellung 6892 Stücke: Lieferzeit 10-14 Tag (e) |
|
| R75UI110050H4J |
|
Hersteller: KEMET
Film Capacitors 2k V 0.001 uF 125C 5% 2 Pin LS=15 mm AEC-Q200
Film Capacitors 2k V 0.001 uF 125C 5% 2 Pin LS=15 mm AEC-Q200
auf Bestellung 5744 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 1.17 EUR |
| 10+ | 0.56 EUR |
| 100+ | 0.5 EUR |
| 500+ | 0.43 EUR |
| 1000+ | 0.4 EUR |
| 1500+ | 0.36 EUR |
| 4500+ | 0.35 EUR |
| R75UI110050H4J |
|
Hersteller: KEMET
Description: CAP FILM 1000PF 5% 2KVDC RADIAL
Tolerance: ±5%
Packaging: Bulk
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 125°C
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Lead Spacing: 0.591" (15.00mm)
Termination: PC Pins
Ratings: AEC-Q200
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 700V
Voltage Rating - DC: 2000V (2kV)
Height - Seated (Max): 0.398" (10.10mm)
Capacitance: 1000 pF
ESR (Equivalent Series Resistance): 795.8 mOhms
Size / Dimension: 0.709" L x 0.157" W (18.00mm x 4.00mm)
Description: CAP FILM 1000PF 5% 2KVDC RADIAL
Tolerance: ±5%
Packaging: Bulk
Package / Case: Radial
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 125°C
Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT
Lead Spacing: 0.591" (15.00mm)
Termination: PC Pins
Ratings: AEC-Q200
Dielectric Material: Polypropylene (PP), Metallized
Voltage Rating - AC: 700V
Voltage Rating - DC: 2000V (2kV)
Height - Seated (Max): 0.398" (10.10mm)
Capacitance: 1000 pF
ESR (Equivalent Series Resistance): 795.8 mOhms
Size / Dimension: 0.709" L x 0.157" W (18.00mm x 4.00mm)
auf Bestellung 6892 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 16+ | 1.34 EUR |
| 24+ | 0.89 EUR |
| 100+ | 0.58 EUR |
| 1500+ | 0.39 EUR |
| 6000+ | 0.35 EUR |
